Product Description

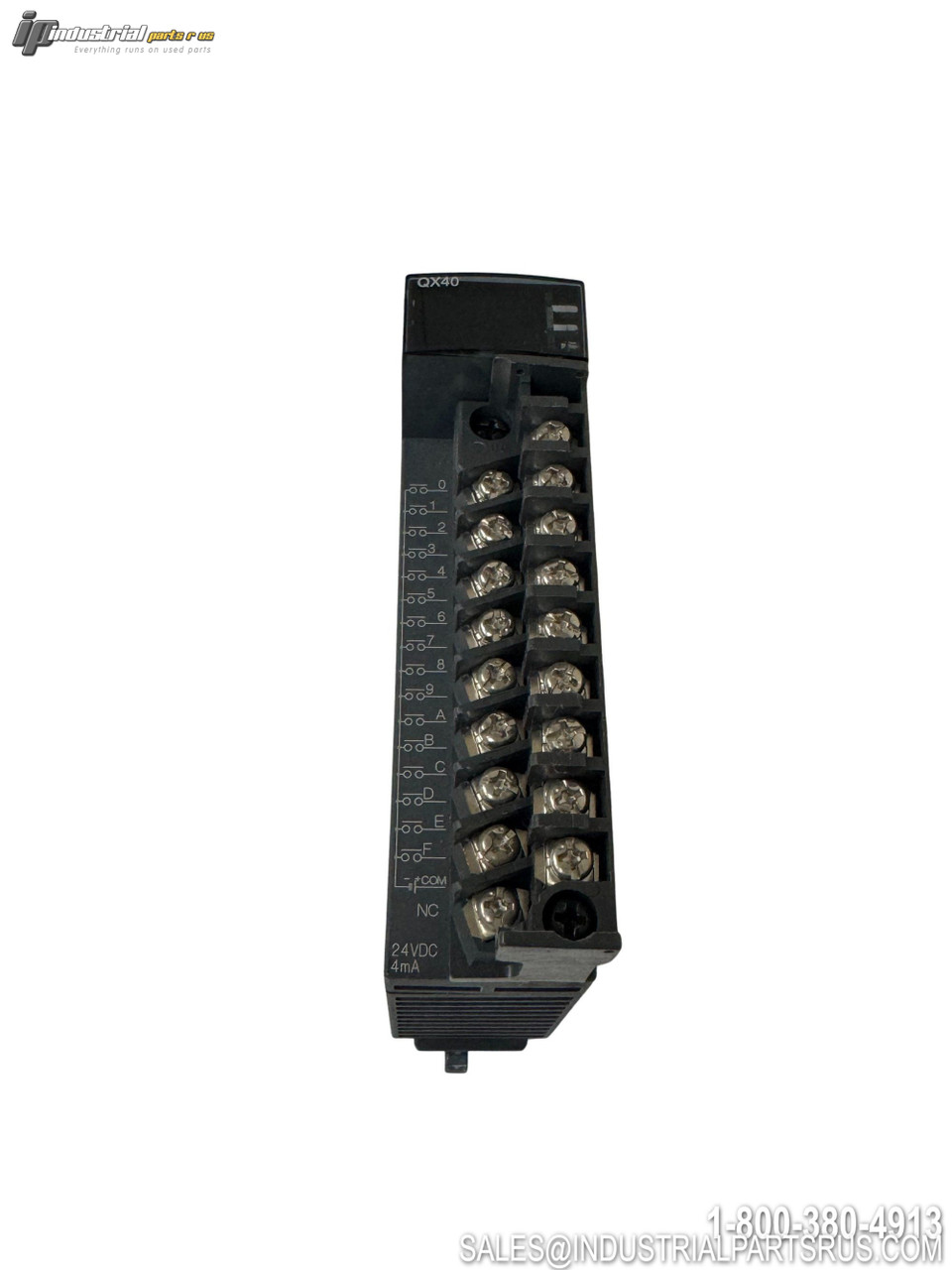

The Mitsubishi Electric QX40 is a 16-point DC digital input module designed for the MELSEC-Q Series programmable logic controller platform. It accepts 24V DC on/off signals from external devices such as sensors, switches, and proximity inputs, converting them into internal PLC logic for machine control applications. The module features optical (photocoupler) isolation on all input points, a shared 16-point common in sink-type configuration, per-point LED status indicators, and an 18-point removable screw-terminal block for secure industrial wiring.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Mitsubishi Electric |
| Model / Part Number | QX40 |
| Series / Platform | MELSEC-Q (QnU) |
| Product Type | DC Digital Input Module |
| Input Points | 16 |
| Rated Input Voltage | 24VDC (+20% / -15%, ripple within 5%) |
| Rated Input Current | Approx. 4mA per point |
| Operating Voltage Range | 20.4 – 28.8VDC |
| Input Type | DC Input, Sink Type (Positive Common) |
| Common Configuration | 16 points / 1 common |
| ON Voltage / ON Current | 19V or higher / 3mA or higher |
| OFF Voltage / OFF Current | 11V or lower / 1.7mA or lower |
| Input Impedance | Approx. 5.6 kΩ |
| Isolation Method | Photocoupler (optical isolation) |
| Dielectric Withstand Voltage | 560VAC rms / 3 cycles (altitude 2000m) |
| Insulation Resistance | 10MΩ or more |
| Input Response Time | 1 / 5 / 10 / 20 / 70 ms (selectable) |
| Occupied I/O Points | 16 |
| Internal Current Consumption | 0.05A (50mA at 5VDC) |
| Wiring Method | 18-point removable screw-terminal block |
| Status Indication | LED per input point |
| Protection Degree | IP2X |
| Mounting | MELSEC-Q base rack slot |
| Dimensions (W × H × D) | 27.4mm × 98mm × 90mm |
| Weight | 0.16 kg |
| Certifications | CE, UL/cUL |
| Compatible Programming Software | GX Works2, GX Developer |
