Product Description

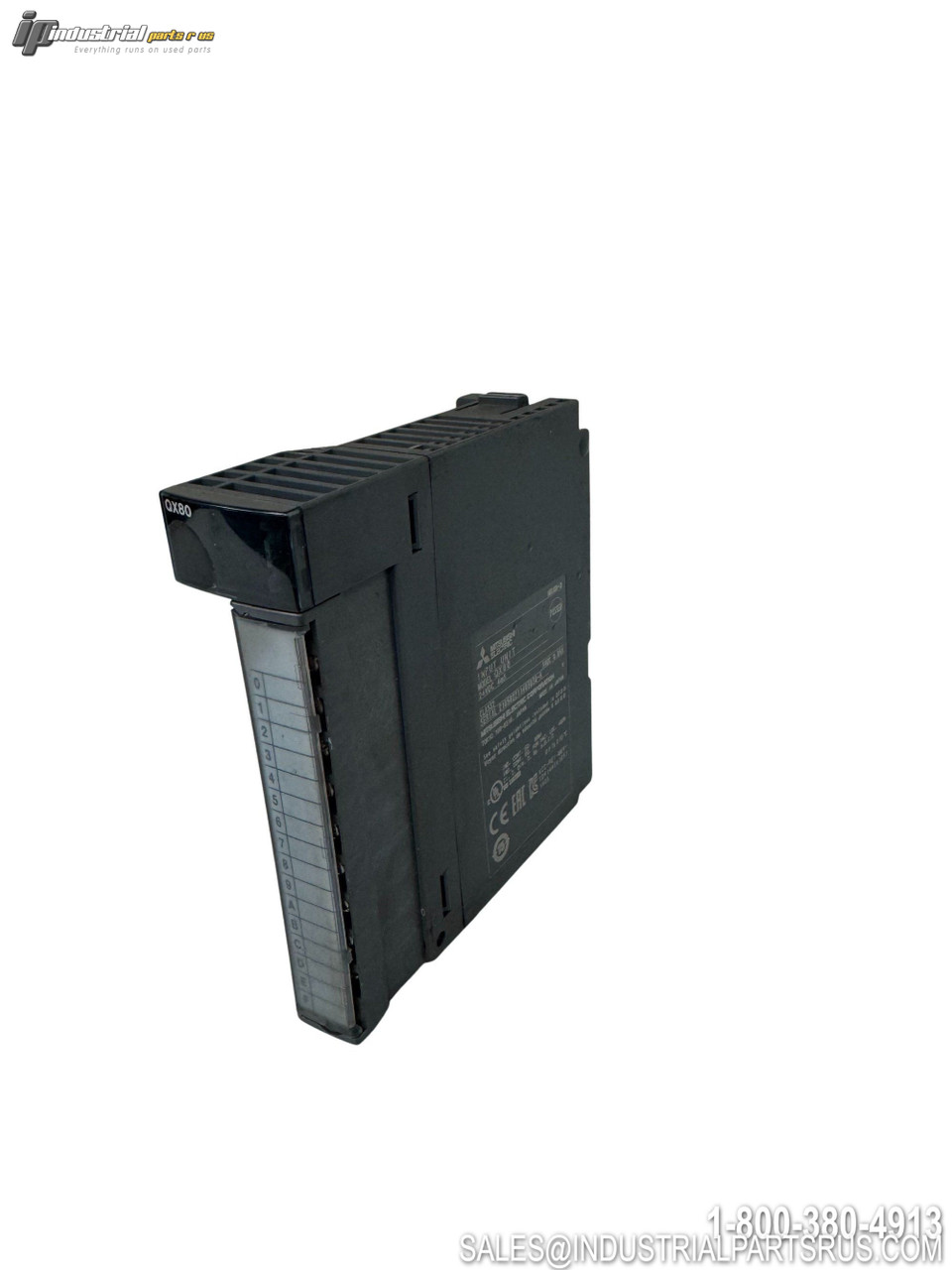

The Mitsubishi Electric QX80 is a 16-point DC digital input module from the MELSEC-Q Series (QnU) programmable controller platform. It accepts 24V DC sink-type (minus common) input signals from external devices such as sensors and switches, and transmits them to the system CPU via photocoupler isolation. The module features a configurable response time and mounts directly to the Q-Series base unit using a snap-in mounting lever, with wiring via an 18-point screw terminal block.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Mitsubishi Electric |
| Model / Part Number | QX80 |
| Product Series | MELSEC-Q (QnU) |
| Module Type | DC Digital Input Module (Minus Common / Sink Type) |
| Input Points | 16 Points |
| Occupied I/O Points | 16 |
| Rated Input Voltage | 24V DC |
| Input Voltage Operating Range | 19.2 – 28.8V DC |
| Rated Input Current | Approx. 4 mA |
| ON Voltage (Min) | 19V DC |
| ON Current (Min) | 3 mA |
| OFF Voltage (Max) | 11V DC |
| OFF Current (Max) | 1.7 mA |
| Response Time (OFF→ON / ON→OFF) | 1 / 5 / 10 / 20 / 70 ms (configurable via PLC parameter) |
| Isolation Method | Photocoupler |
| Insulation Resistance | 10 MΩ |
| Dielectric Withstand Voltage | 560V AC (up to 2000 m altitude) |
| Noise Immunity | 500V noise voltage, 1 µs noise width |
| Internal Current Consumption (5V DC) | 0.05 A (50 mA typical, all 16 points ON) |
| Common Terminal | 16 points / 1 common (TB18); TB17 vacant |
| Wiring / Terminal Type | 18-point screw terminal block (M3) |
| Cable Wire Size | 0.3 – 0.75 mm² (AWG22–18) |
| Protection / IP Rating | IP2X (IP20) |
| Status Indicator | LED (per input point, ON/OFF) |
| Dimensions (H × W × D) | 98 × 27.4 × 90 mm |
| Weight | 0.144 – 0.16 kg |
| Mounting Type | Base unit slot mount (Q-Series base unit) |
| Compatible Programming Software | GX Works2, GX Developer |
| Certifications | CE, UL/cUL, UKCA, Marine (ABS, BV, DNV GL, LR, NK, RINA) |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686185
Full Load Amps 3 mA
Manufacturer Mitsubishi
Enclosure Type IP2X (IP20)
Part Number QX80
Controller Platform MELSEC-Q
Shelf K-71
Model QX80
MPN QX80
Type PLC I/O Module
