Product Description

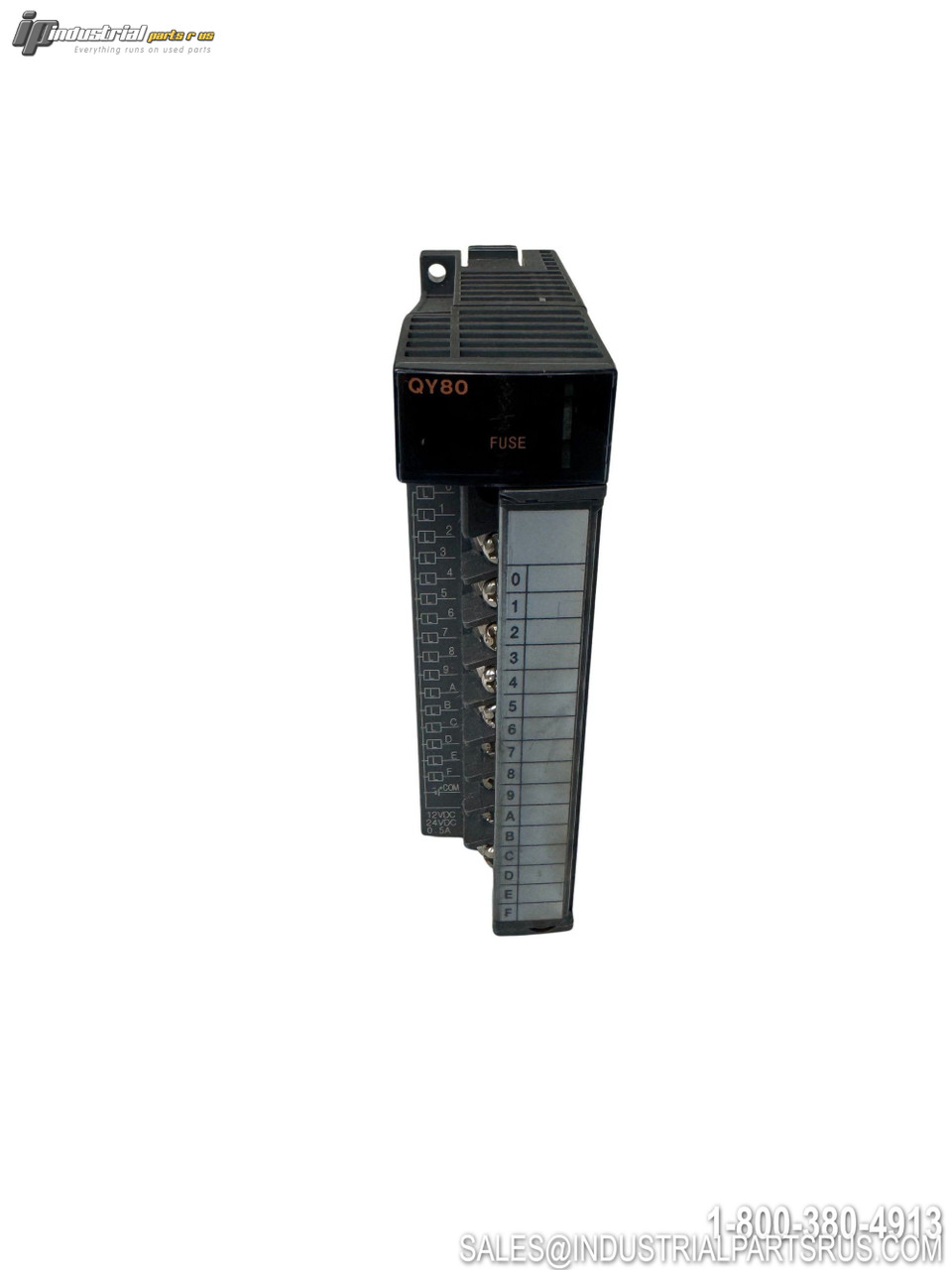

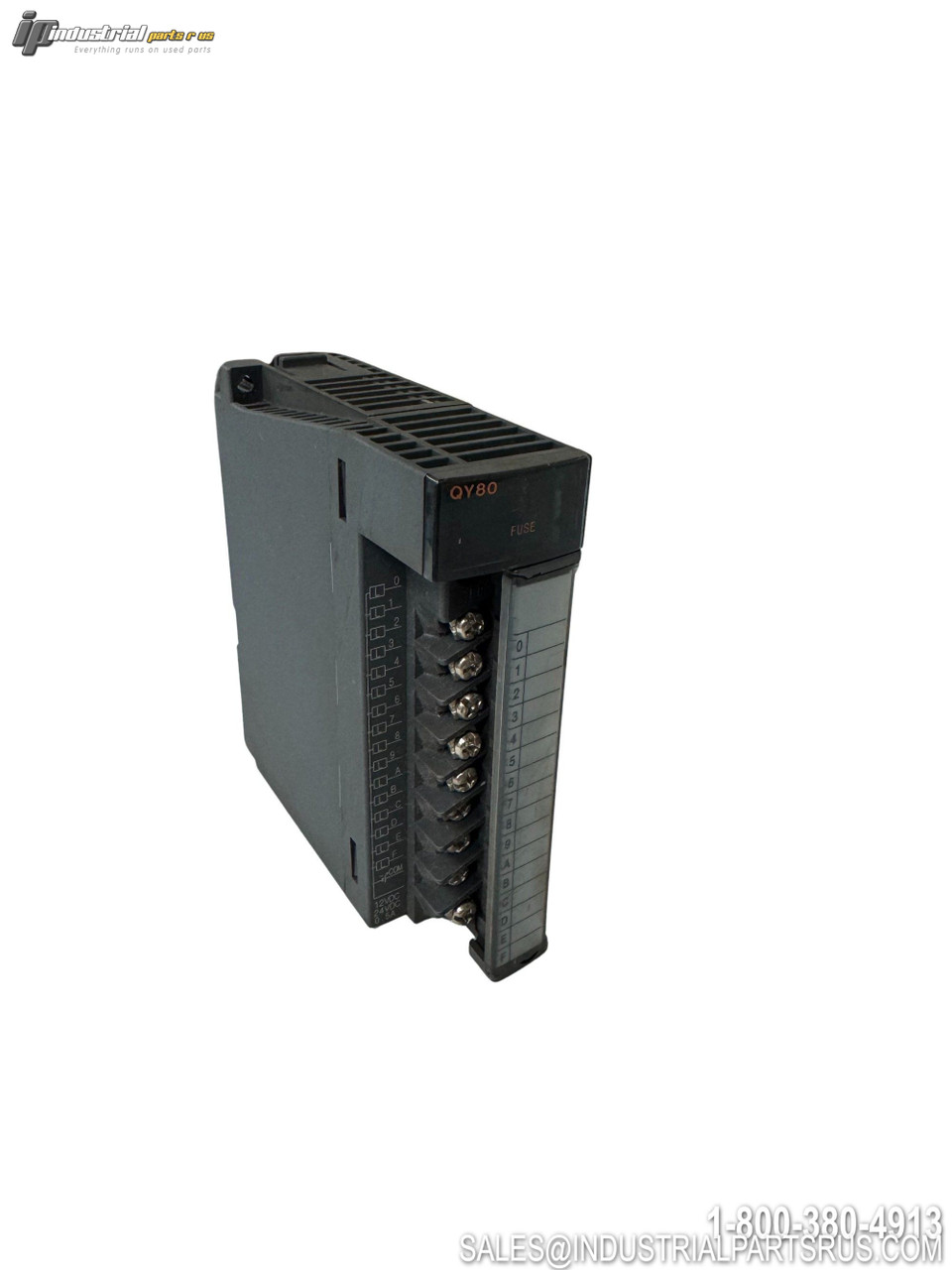

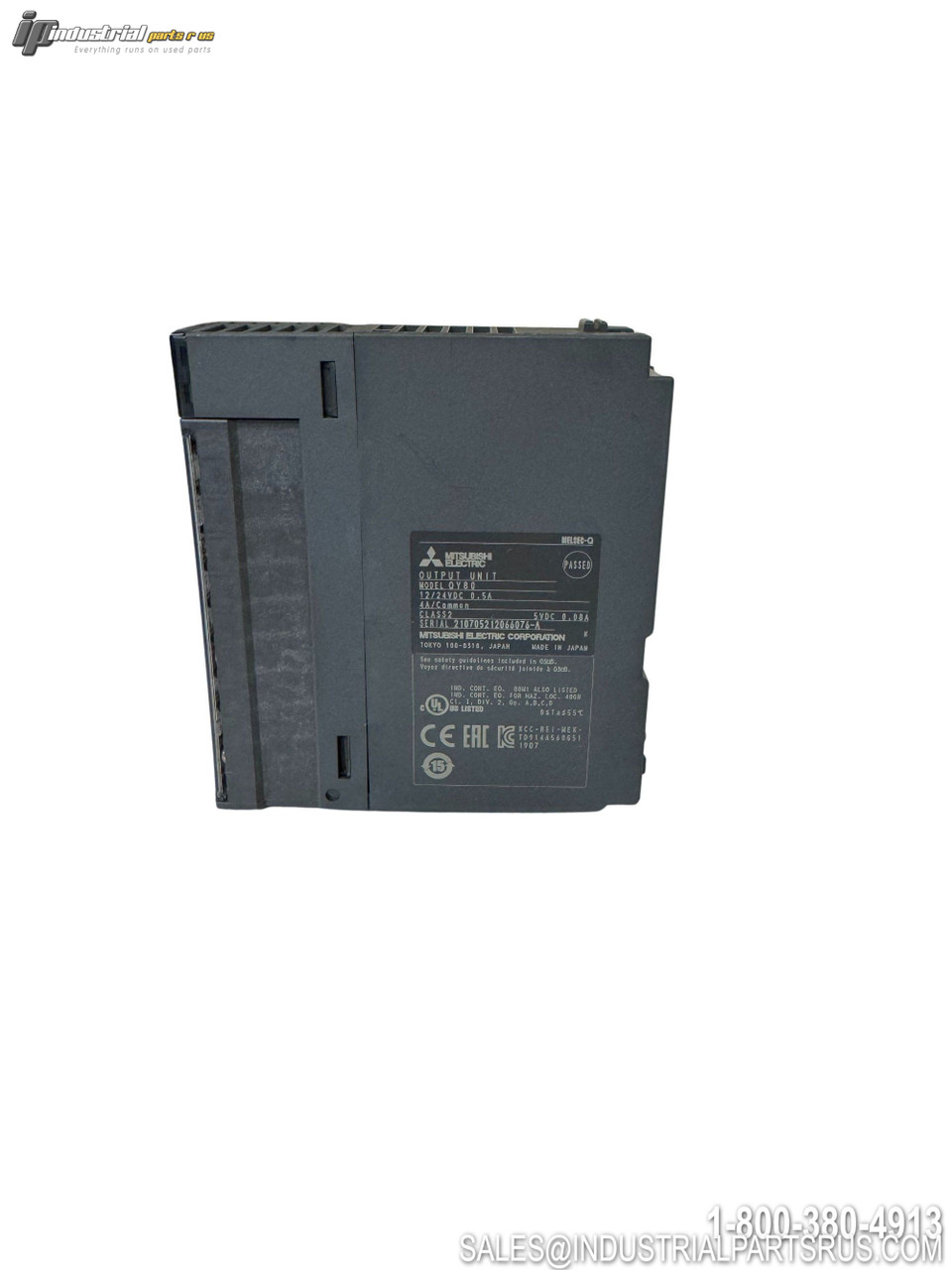

The Mitsubishi Electric QY80 is a transistor output module (source type) designed for use with MELSEC-Q Series programmable logic controllers. It provides 16 digital output points capable of controlling DC loads such as solenoids, relays, contactors, and indicator lamps, with optical isolation on each channel for noise immunity and surge protection. The module features built-in fuses for output circuit protection and a blown-fuse indicator LED, and uses screw-type terminals on an 18-point terminal block for reliable field wiring connections.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Mitsubishi Electric |
| Model / Part Number | QY80 |
| Product Type | Transistor Output Module (Source Type) |
| Series | MELSEC-Q (Q Series) |
| Output Points | 16 Points |
| Output Type | Transistor, Source Type |
| Rated Load Voltage | 12–24 VDC |
| Max Load Current per Point | 0.5 A |
| Max Load Current per Common | 4 A |
| Points per Common | 16 Points / 1 Common |
| OFF Leakage Current | 0.1 mA max |
| Response Time | 1 ms |
| Internal Current Consumption | 0.08 A (80 mA) |
| Isolation Method | Photocoupler (Optical Isolation) + Zener Diode Surge Suppressor |
| Surge Absorber | Yes (Built-in) |
| Fuse Protection | Yes (Built-in), with blown-fuse LED indicator |
| Terminal Type | Screw Terminals, 18-Point Terminal Block |
| Compatible Wire Size | 0.3 mm² – 0.75 mm² |
| Width | 27.4 mm |
| Height | 98 mm |
| Depth | 90 mm |
| Weight | 0.152 kg (approx.) |
| Compatible PLC Platform | Mitsubishi MELSEC-Q Series (QnU) |
| Applications | Solenoids, Relays, Contactors, Indicator Lamps, Actuators |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686208
Output Type Transistor, Source Type
Country/Region of Manufacture Japan
Full Load Amps 0.5A
Manufacturer Mitsubishi
Part Number QY80
Controller Platform Mitsubishi MELSEC-Q
Shelf K-71
Model QY80
MPN QY80
Type PLC I/O Module
