Product Description

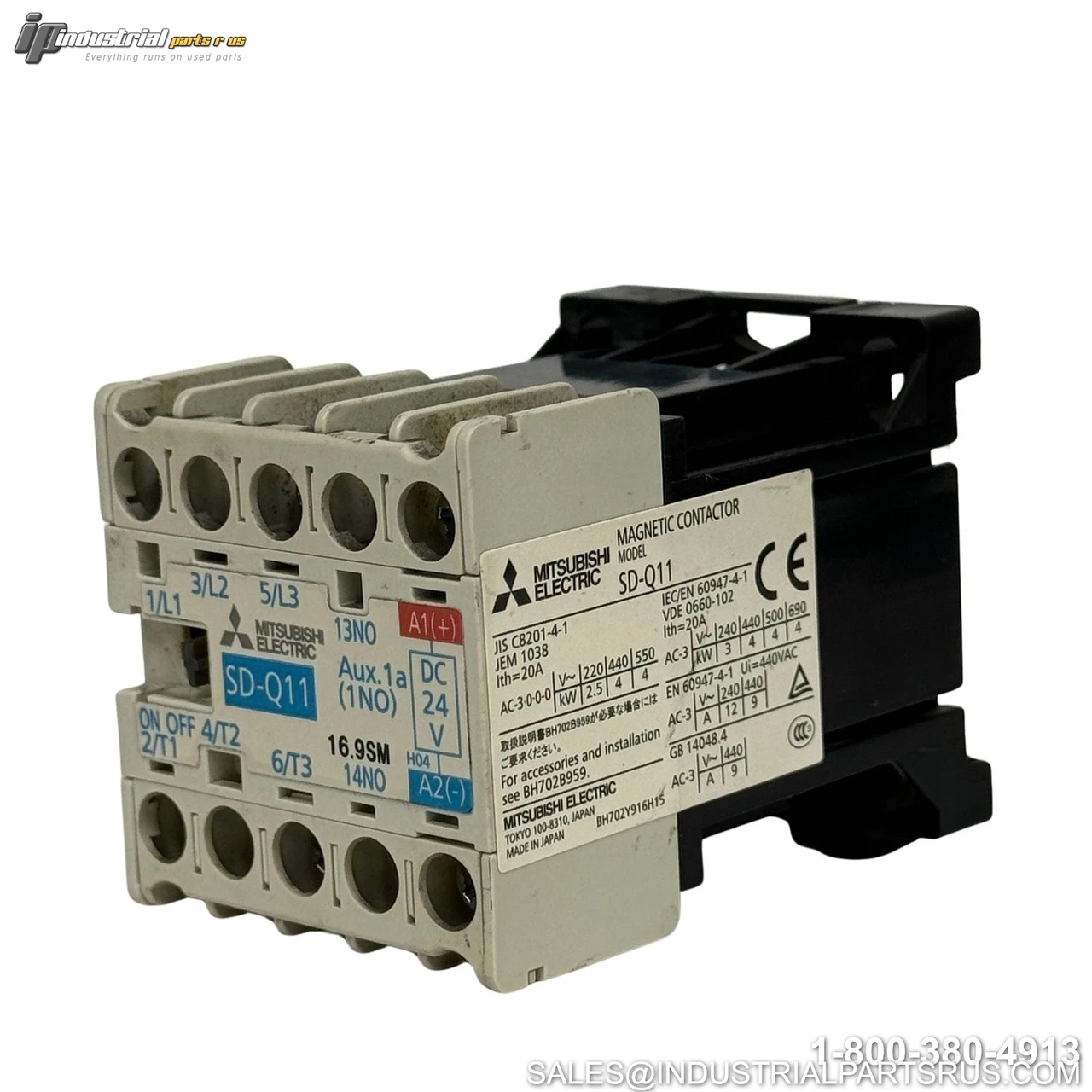

The Mitsubishi Electric SD-Q11 is a non-reversing, DC-operated magnetic contactor from the MS-N Series, designed for reliable motor starting and stopping in industrial automation applications. It features a 24VDC control coil, a 3-pole main circuit configuration with a 9A rated current at 380–440V AC (12A at 200–240V), and a rated voltage of 690V. Rated at 4 HP and IEC utilization category AC-3, the SD-Q11 incorporates a built-in surge absorber, screw-clamp terminals, and mounts directly on standard 35mm DIN rail or surface, complying with EN60947-4-1, IEC60947-4-1, and JIS C8201-4-1 standards. RoHS compliant and approved by UL, CSA, and TÜV.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Mitsubishi Electric |
| Model / Part Number | SD-Q11 |
| Series | MS-N Series |
| Type | Non-Reversing, DC Operated Magnetic Contactor |
| Frame Size | 11 |
| NEMA Size | 00 |
| IEC Utilization Category | AC-3 |
| Coil Voltage | 24VDC |
| Coil Current | 55 mA |
| Coil Power Consumption | 1.3 W |
| Current Type | DC |
| Number of Poles | 3 |
| Number of Phases | 3 |
| Contact Configuration | 3NO Main + 1NO Auxiliary |
| Rated Current (AC, 380–440V) | 9A |
| Rated Current (AC, 200–240V) | 12A |
| Rated Current (AC, 500–550V) | 7A |
| Rated Capacity (220–240V, 3-Phase) | 3 kW |
| Rated Capacity (380–440V, 3-Phase) | 4 kW |
| Horsepower Rating | 4 HP |
| Rated Voltage | 690V |
| Thermal Current (Ith) | 20A |
| Auxiliary Contacts (Standard) | 1 NO |
| Frequency Range | 50/60 Hz |
| Wiring Type | Screw-Clamp |
| Protection Class | IP20 |
| Mounting Type | DIN Rail (35mm) / Surface Mount |
| Coil Drive | Transistor Output Direct Drive |
| Surge Absorber | Built-In |
| Min. Operating Temperature | -10°C |
| Max. Operating Temperature | 40°C |
| Mechanical Durability | 10,000,000 Operations |
| Body Material | Thermoplastic (Flame Retardant) |
| RoHS Compliant | Yes |
| Width | 45 mm |
| Height | 51 mm |
| Depth | 66.5 mm |
| Weight | 0.19 kg |
| Standards Compliance | EN60947-4-1, IEC60947-4-1, JIS C8201-4-1 |
| UL / CSA / TÜV Approved | Yes |
| European Order Code | 147626 |
