Product Description

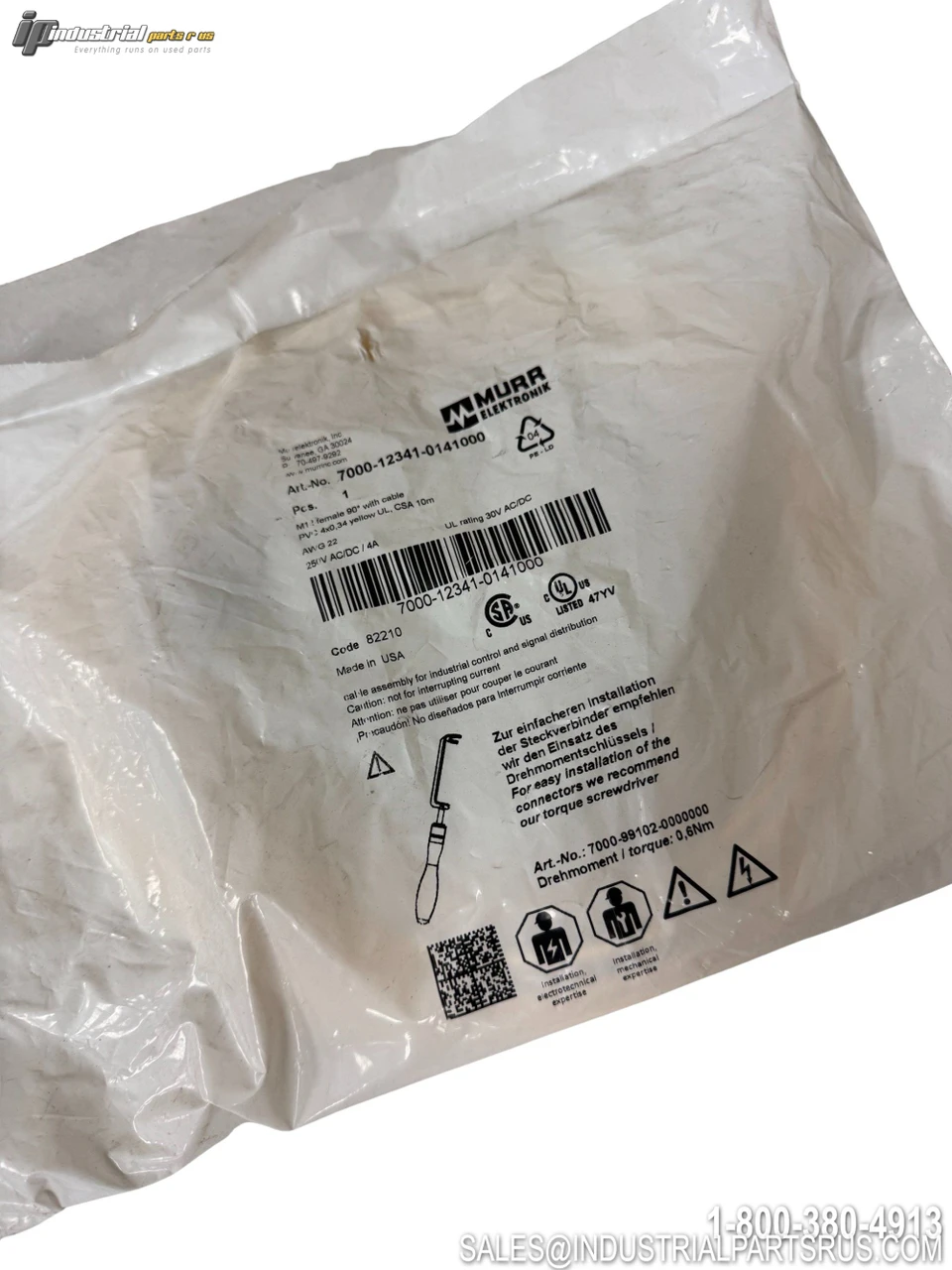

The Murrelektronik 7000-12341-0141000 is an M12 female 90° A-coded connector pre-assembled with a 10-meter yellow PVC cable (4×0.34 mm²), rated UL/CSA for industrial signal and sensor applications. The 90° angled exit design accommodates space-constrained installations, while the gold-plated copper alloy contacts and zinc die-cast locking hardware ensure reliable, long-term electrical performance. This cordset provides IP65/IP66K/IP67 ingress protection, making it well-suited for demanding industrial environments including automation, machine tooling, and process control.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Murrelektronik |
| Model / Part Number | 7000-12341-0141000 |
| Product Type | M12 Female 90° A-Coded Sensor Cordset |
| Connector Gender | Female |
| Connector Series | M12 |
| Cable Outlet Angle | 90° (Angled) |
| Number of Poles | 4 |
| Connector Coding | A-Coded |
| Cable Length | 10 m (32.8 ft) |
| Cable Jacket Material | PVC |
| Cable Cross-Section | 4 × 0.34 mm² |
| Cable Color | Yellow (YE) |
| Operating Voltage | Max. 250 V AC/DC |
| Operating Voltage (UL Listed) | Max. 30 V AC/DC |
| Current Rating per Contact | Max. 4 A |
| Rated Surge Voltage | 2.5 kV |
| Material Group | IEC 60664-1, Category I |
| Ingress Protection | IP65, IP66K, IP67 (EN 60529 / EN IEC 60529) |
| Pollution Degree | 3 |
| Screw Thread | M12 × 1 mm |
| Tightening Torque | 0.6 Nm (recommended) |
| Width Across Flats | SW13 |
| Contact Material | Copper Alloy |
| Contact Coating | Gold Plated |
| Housing Material | Plastic (chemical and oil resistant) |
| Locking Material | Zinc Die Casting, Matte Nickel Plated |
| Gasket Material | FKM |
| Suitable for Corrugated Tube (Internal Ø) | 10 mm |
| Mounting Method | Inserted, Screwed (with vibration protection) |
| Operating Temperature | -25°C to +80°C |
| Certifications | UL Listed, CSA |
| End 2 (Termination) | Open Ended / Bare Leads |
