Product Description

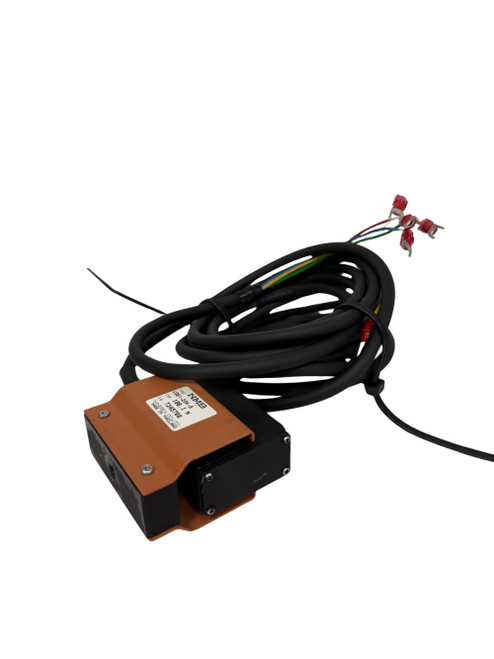

The NMB (Minebea) U3B1-20K-B is a high-accuracy, compact tension and compression load cell from the U3B1-B Series. It features an all-stainless steel construction, making it well-suited for use in corrosive or demanding environments such as hopper, tank, and general industrial weighing systems. With a rated capacity of 20 kgf (196.1 N) and a rated output of 3 mV/V, this load cell delivers precise and repeatable force measurement performance.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | NMB (Minebea) |
| Model / Part Number | U3B1-20K-B |
| Series | U3B1-B |
| Product Type | Load Cell (Tension / Compression) |
| Rated Capacity | 20 kgf (196.1 N) |
| Rated Output | 3 mV/V ± 0.015 mV/V |
| Non-Linearity | 0.05 %R.O. |
| Hysteresis | 0.05 %R.O. |
| Repeatability | 0.03 %R.O. |
| Safe Overload | 150% R.C. |
| Ultimate Overload | 200% R.C. |
| Recommended Excitation Voltage | 10 V or less |
| Material | Stainless Steel |
| Load Direction | Tension and Compression |
| Capacity Range (Series) | 196.1 N (20 kgf) ~ 9.807 kN (1 tf) |
| Rod End | Optional |
| Approval / Certification | NTEP Approved (Series) |
| Typical Application | Hopper, tank, and general industrial weighing systems; corrosive environments |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Output Type Analog mV/V
Sensor Type Strain Gauge Load Cell
Manufacturer NMB
Part Number U3B1-20K-B
Shelf D-11 Tub 2
Model U3B1-20K-B
MPN U3B1-20K-B
Type Load Cell
