Product Description

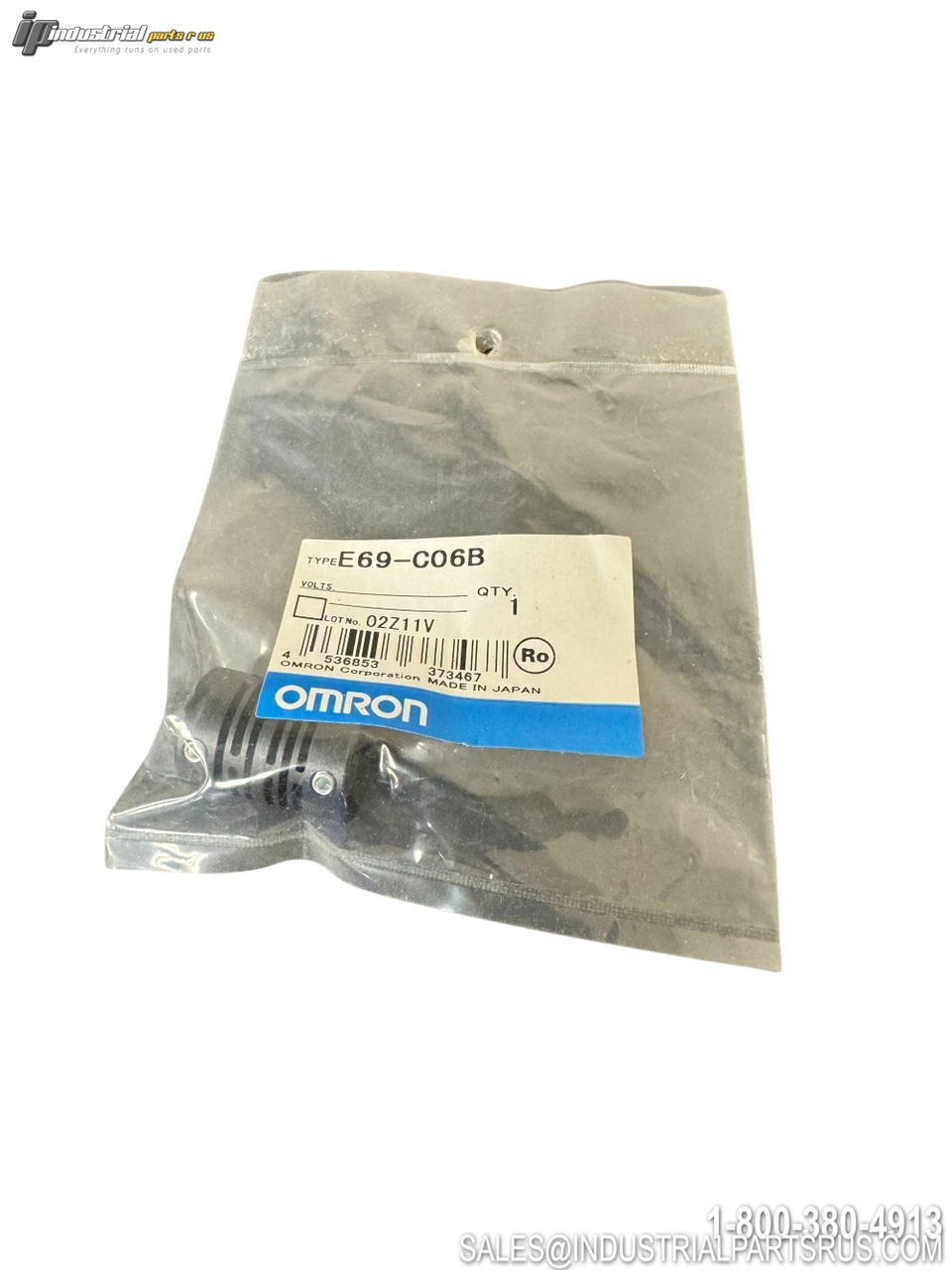

The Omron E69-C06B is a bellows-type shaft coupling designed as an accessory for Omron rotary encoders, including the E6B2-C, E6C2-C, E6D-C, and E6CP-A series. Constructed from glass-reinforced Polybutylene Terephthalate (PBT) resin, it is a standard (low-resolution) coupling featuring a lightweight design and low moment of inertia. It allows mounting even when shafts are significantly misaligned, reducing fatigue-related damage over extended use. The coupling operates at a 1:1 nominal ratio and is designed for horizontal shaft orientation.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Omron |
| Model / Part Number | E69-C06B |
| Product Type | Bellows-Type Shaft Coupling (Encoder Coupling) |
| Series | E69 |
| Design | Standard (Low Resolution) |
| Bore Diameter (ID) | 6 mm |
| Outside Diameter (OD) | 15 mm |
| Length | 22 mm |
| Rated Torque | 0.8 N·m |
| Maximum Rotational Speed | Not Rated (low-resolution coupling) |
| Body Material | Glass-Reinforced Polybutylene Terephthalate (PBT) |
| Fastener Type | M3 Hex Screw |
| Compatible Encoder Series | E6B2-C, E6C2-C, E6D-C, E6CP-A |
| RoHS Compliant | Yes |
| Manufacturer Status | Commercialized (Active) |
