Product Description

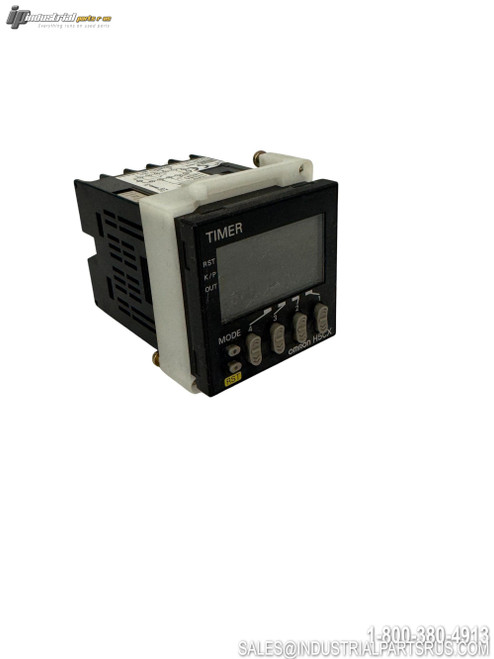

The Omron H5CX-AD is a multifunction digital timer featuring an ultra-compact design with advanced timing functions. This timer provides advanced functions in an ultra-compact design with a short body depth of only 59 mm. The unit features 12mm high characters for better visibility and present value display characters that can be switched between 3 colors: red, green and orange.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Omron |
| Model/Part Number | H5CX-AD |
| Product Type | Digital Timer |
| Series | H5CX |
| Supply Voltage | 12-24VDC / 24VAC 50/60Hz |
| Time Range | 0.001s to 9999h |
| Display | 4-Digit LCD, 12mm Character Height |
| Output Type | Contact Output (Time-Limit SPDT) |
| Contact Rating | 5A @ 250VAC |
| Panel Size | 1/16 DIN (48x48mm) |
| Mounting Type | Panel Mount |
| Terminal Type | Screw Terminals |
| Input Type | NPN/PNP |
| Timer Modes | 11 Timer Modes / 4 Twin Timer Modes |
| Depth | 59mm |
| Protection Rating | IP66 (Front) |
| Display Colors | Red, Green, Orange (Switchable) |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Mounting Style Panel Mount
Current Rating 5 A
Output Type Contact Output (SPDT)
Manufacturer Omron
Part Number H5CX-AD
Series H5CX
Shelf F-10 Tub 1
Model H5CX-AD
Coil Voltage 12-24 VDC / 24 VAC
MPN H5CX-AD
Type Timer
