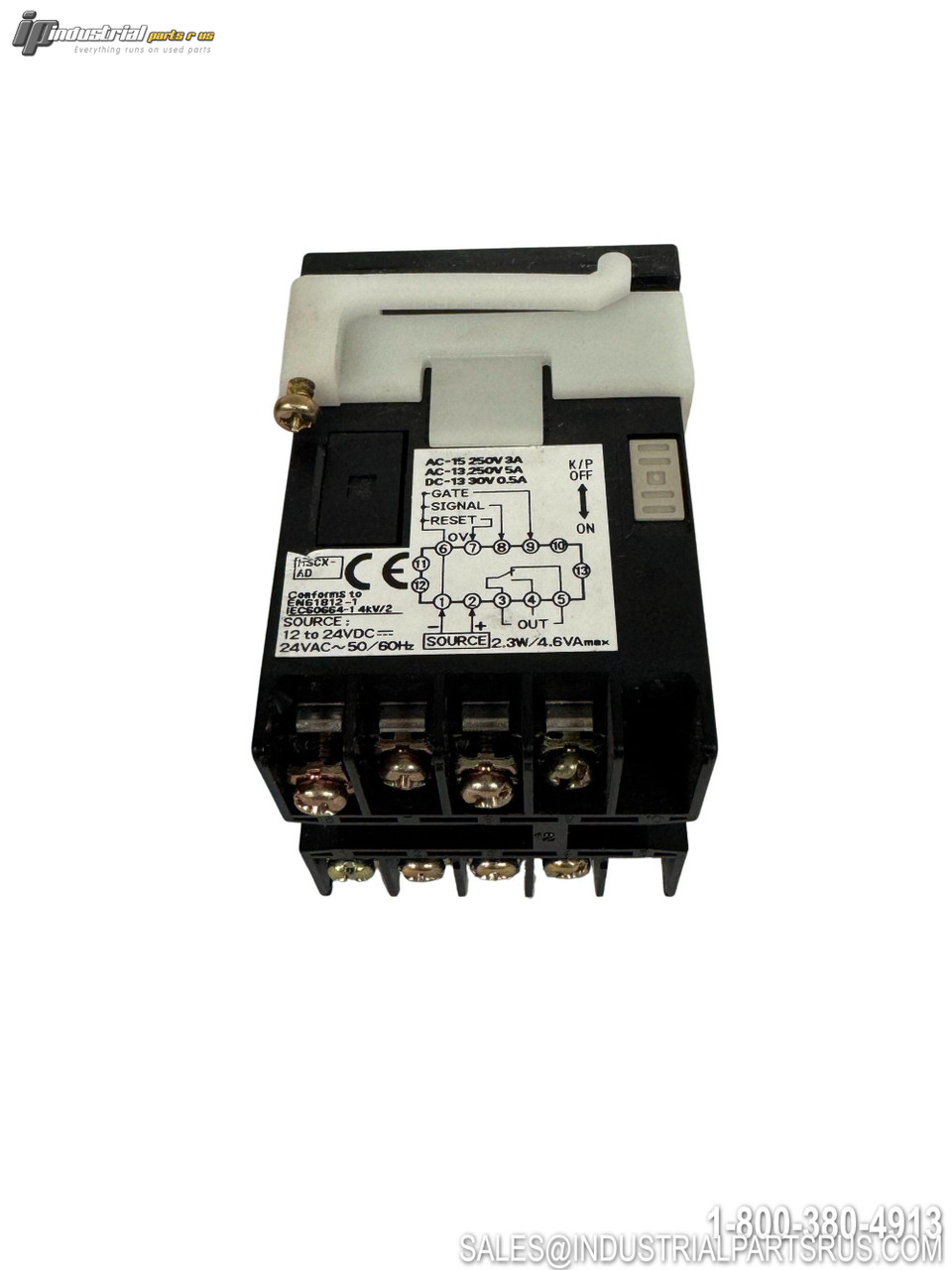

Product Description
The Omron H7CX-AD is a compact multifunction preset counter designed for industrial counting and tachometer applications. This DIN 48×48mm counter features a bright 6-digit negative transmissive LCD display with backlight and provides versatile counting functions including 1-stage and 2-stage counter configurations, batch counting, and dual counter operation with addition/subtraction capabilities.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Omron |
| Model/Part Number | H7CX-AD |
| Product Series | H7CX-A |
| Supply Voltage | 12-24VDC |
| Number of Digits | 6 |
| Digit Height | 10mm |
| Display Range | -99,999 to 999,999 |
| Display Type | 2-row 6-digit negative transmissive LCD with backlight |
| Output Type | SPDT Relay Contact |
| Contact Rating | 250VAC/3A, 30VDC/3A |
| Input Type | No-voltage contact, NPN/PNP open collector (switchable) |
| Counting Speed | 30Hz or 10Hz (switchable) |
| Memory Type | EEPROM (100,000 rewrites) |
| Operating Temperature | -10°C to +55°C |
| Storage Temperature | -25°C to +70°C |
| Dimensions | 48mm × 48mm × 65mm (W×H×D) |
| Panel Cutout | 44.8mm × 44.8mm |
| Terminal Type | Screw Terminals |
| Mounting | 1/16 DIN (48×48mm) flush mounting |
| Protection Rating | IP66 (panel surface with optional waterproof packing) |
| Configuration | 1-stage setting |
| Functions | Multifunction preset counter, tachometer, batch counter, dual counter |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Mounting Style Flush Mount
Current Rating 3A
Output Type SPDT relay contact
Manufacturer Omron
Part Number H7CX-AD
Series H7CX-A
Shelf F-10 Tub 1
Model H7CX-AD
Coil Voltage 12-24VDC
MPN H7CX-AD
Type Counter
