Product Description

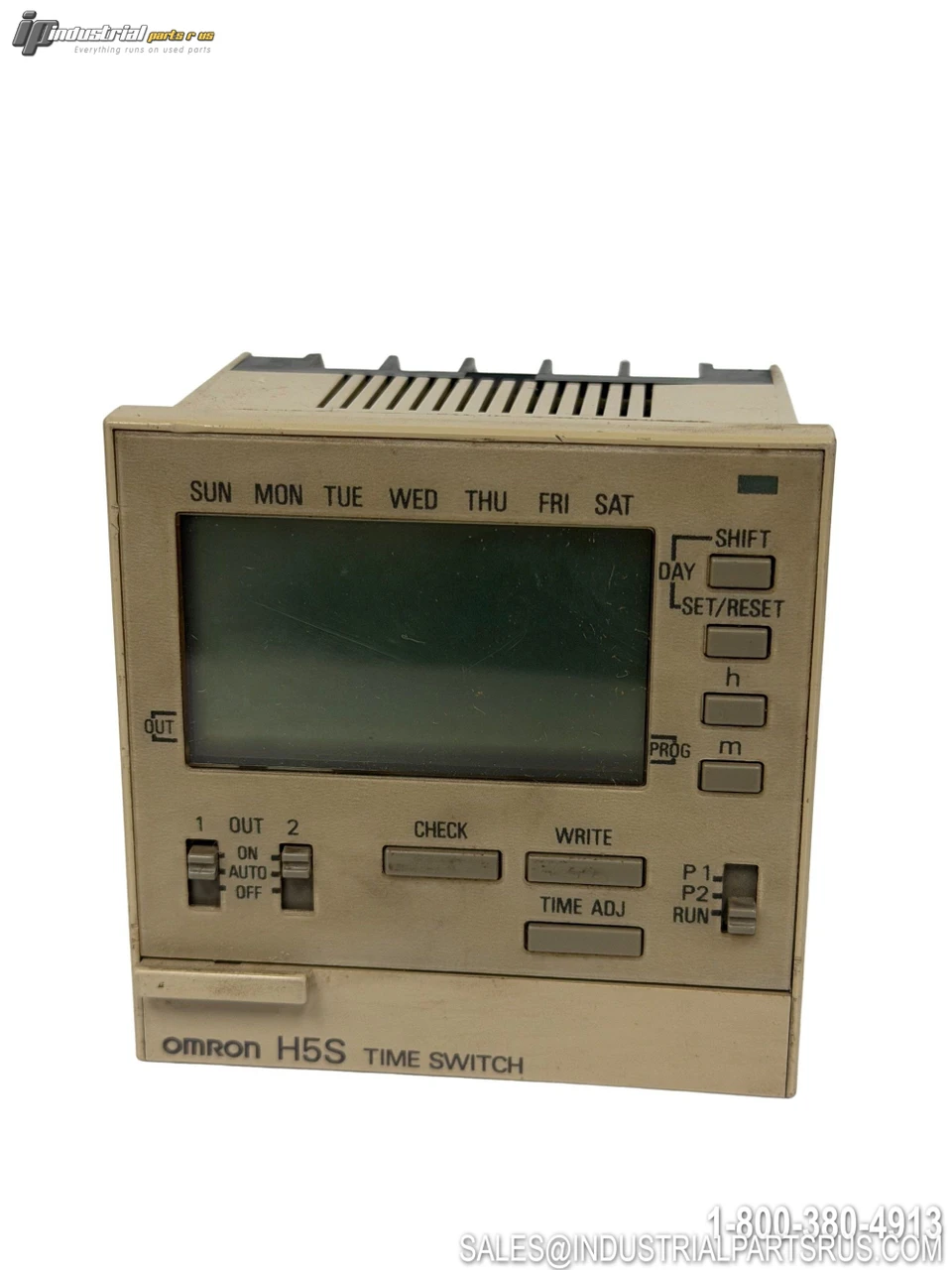

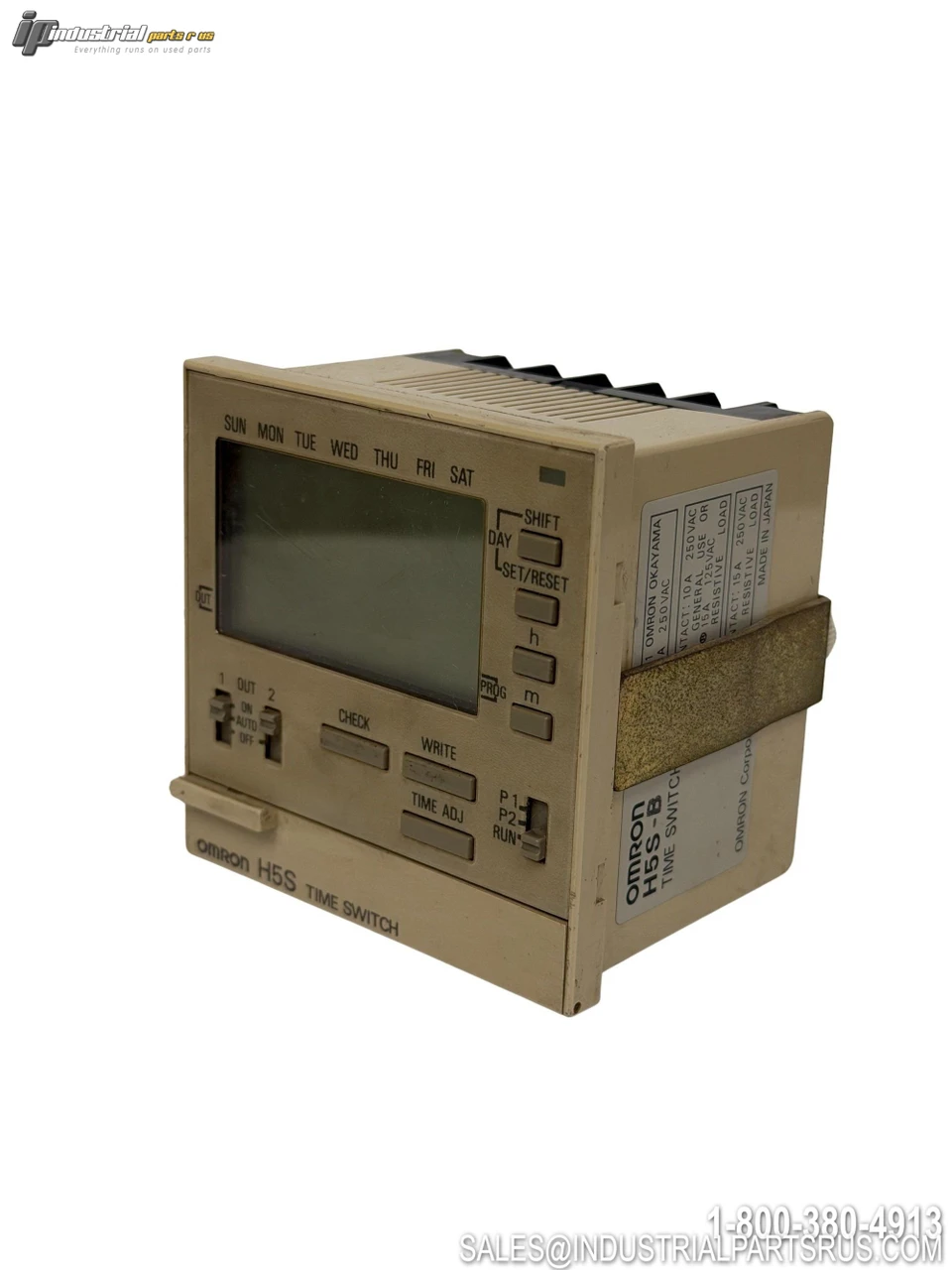

The Omron H5S-B is a Weekly Digital Time Switch designed for panel flush mounting, offering programmable ON/OFF control of up to two independent output circuits. It accepts a wide supply voltage range of 100 to 240 VAC and features an LCD display for easy time and program setting. The H5S-B is the flush-mount variant in the H5S series; its surface-mount/track-mount counterpart is the H5S-FB.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Omron |
| Model / Part Number | H5S-B |
| Product Type | Weekly Digital Time Switch |
| Series | H5S |
| Control Cycle | Weekly (1 Week) |
| Supply Voltage | 100 to 240 VAC |
| Power Consumption (AC) | Approx. 3 VA |
| Number of Output Circuits | 2 Circuits |
| Output Type | SPST-NO (No-voltage contact output) x 2 |
| Contact Rating | 15 A at 250 VAC, resistive load (per circuit) |
| Mounting Style | Flush Mounting (Panel) |

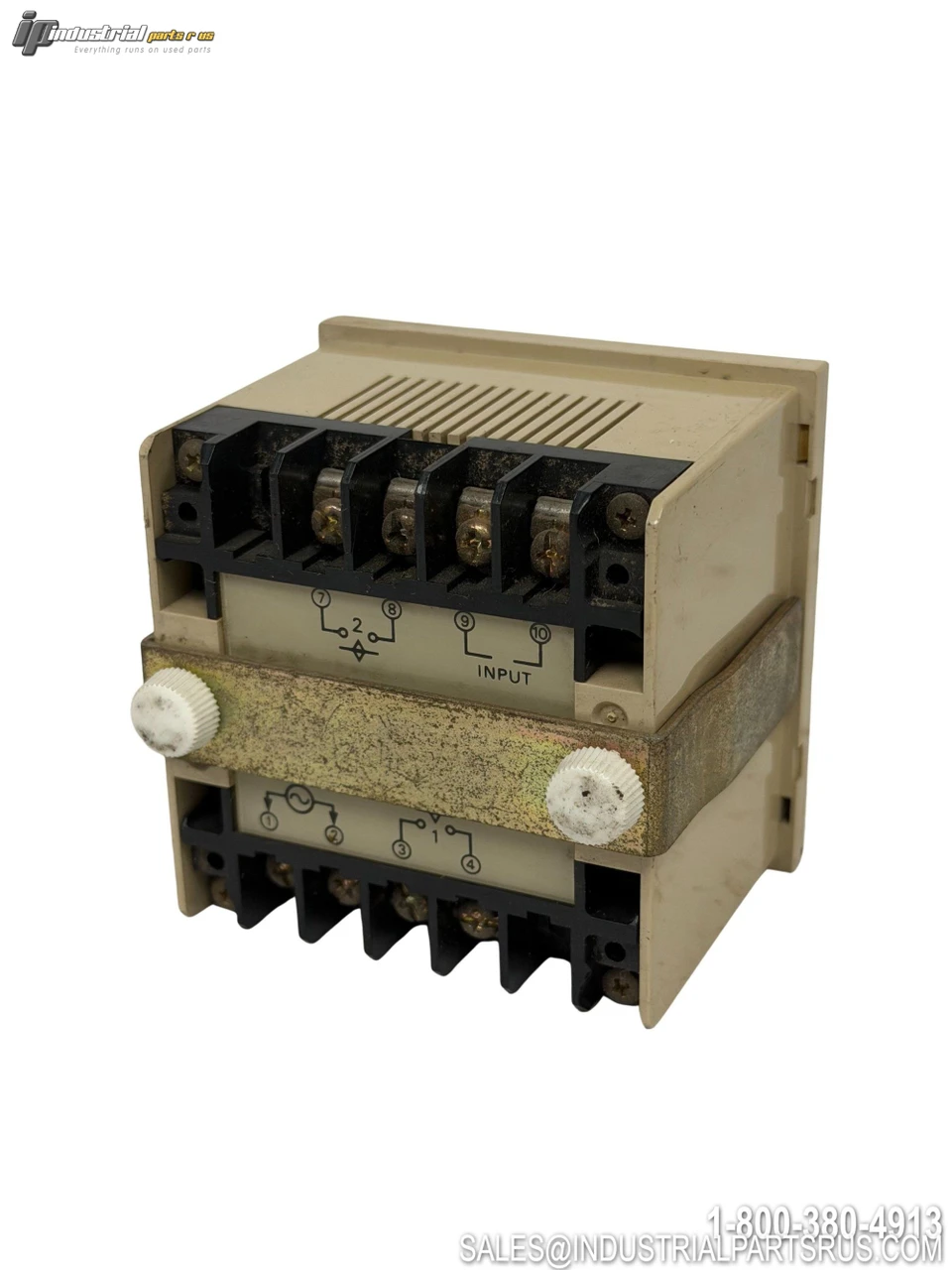

| Terminal Type | Screw Terminals (M3.5) |
| Time Setting Range | 00:00 a.m. to end of week (1-minute increments) |
| Time Accuracy | ±0.01% ±0.05 s max. |
| Monthly Difference | ±15 s/month at 25°C (approx. 4 s/week, 1 min/4 months) |
| Memory Protection | 5 years minimum at 25°C (Lithium battery backup) |
| Insulation Resistance | 100 MΩ min. |
| Display | LCD (Day / Hours / Minutes) |
| Operating Modes | Timer operation, Pulse-output operation, Cyclic operation |
| Panel Cutout Dimensions | 67.6 x 67.6 mm (approx. 75 x 75 mm outer) |
| Panel Thickness | 1 to 5 mm |
| Surface Mount Equivalent | H5S-FB |
| Catalog Number | L014-E1-4E |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686185
Mounting Style Flush Mount
Current Rating 15 A
Output Type SPST-NO No-voltage contact output x 2 circuits
Manufacturer Omron
Part Number H5S-B
Series H5S
Shelf F-10
Model H5S-B
MPN H5S-B
Type Timer
