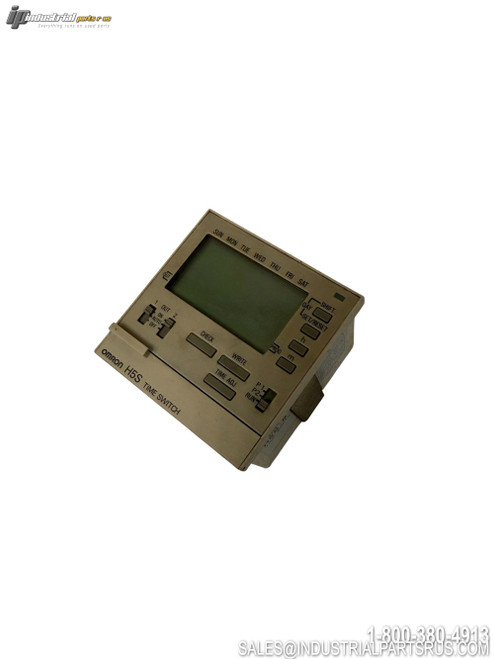

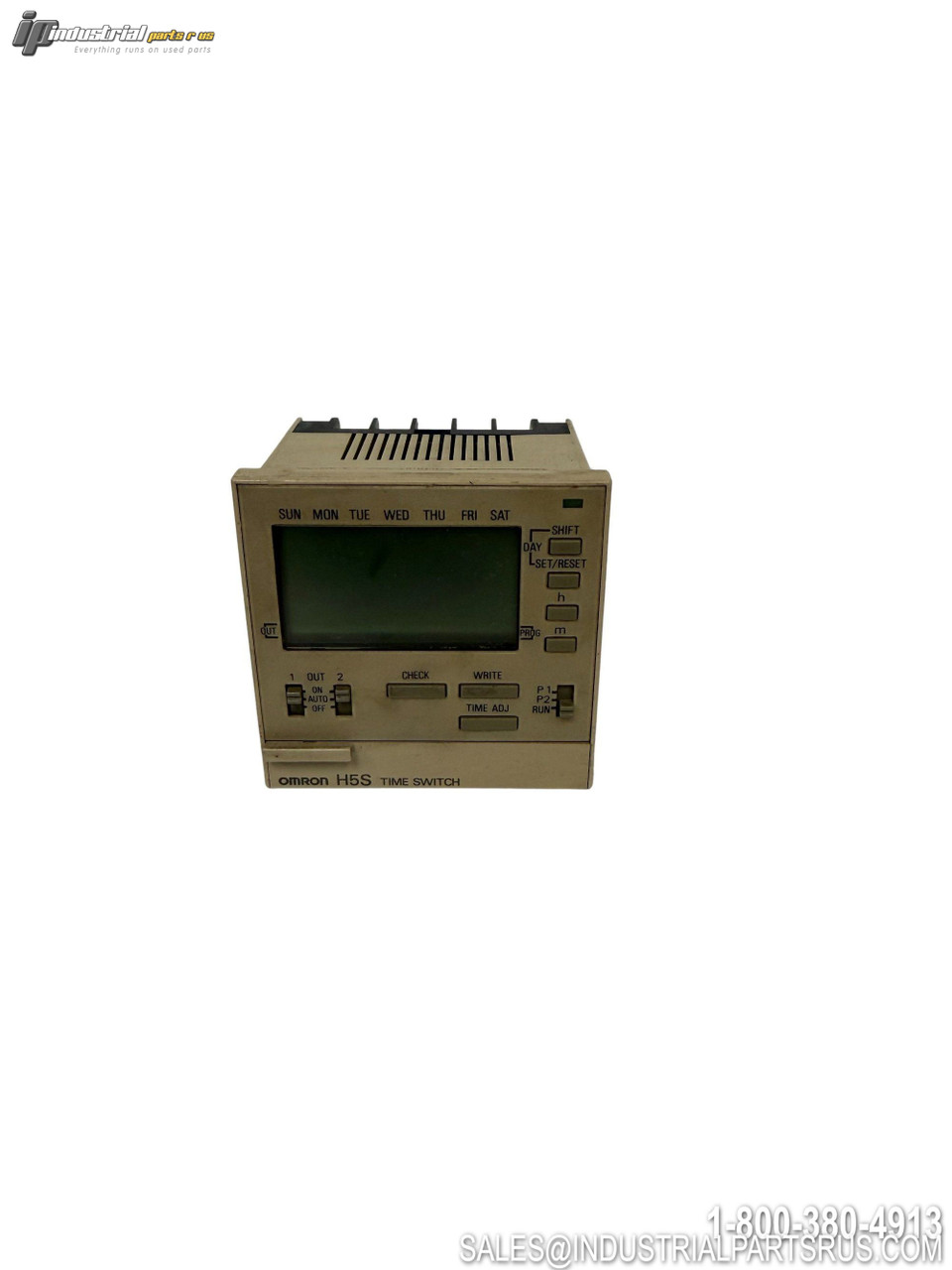

Product Description
The Omron H5S-B is a weekly programmable digital time switch designed for industrial automation applications. This flush-mounted panel timer provides precise time control with multiple operating modes including timer operation, pulse-output operation, and cyclic operation. The unit features two independent circuits with SPST-NO contacts and manual override switches.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Omron |
| Model/Part Number | H5S-B |
| Product Type | Weekly Time Switch |
| Supply Voltage | 100 to 240 VAC, 50/60 Hz |
| Operating Voltage | 85 to 110% of rated (85 to 264 VAC) |
| Number of Circuits | 2 |
| Contact Type | Two SPST-NO time limit contacts |
| Contact Rating | 15A per circuit (with derating for total) |
| Mounting Type | Flush mounting (panel mounting) |
| Terminal Form | Screw terminals (M3.5) |
| Time Setting Range | 00:00 a.m. to 11:59 p.m. |
| Program Capacity | 24 steps (Timer: 2 steps, Pulse: 1 step, Cycle: 4 steps) |
| Time Setting Unit | 1 minute |
| Pulse Width Setting | 1 to 59 seconds or 1 to 59 minutes |
| Accuracy | ±0.01% ±0.05 s max |
| Memory Protection | 5 years minimum (at 25°C) |
| Dimensions (HxWxD) | 72 x 72 x 49 mm (2.83 x 2.83 x 1.93 in) |
| Panel Cutout | 67.6 x 67.6 mm |
| Operating Functions | Timer, Pulse-output, Cyclic, Day substitution |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Mounting Style Panel Mount
Current Rating 15A
Manufacturer Omron
Part Number H5S-B
Series H5S
Shelf F-10
Model H5S-B
Coil Voltage 100-240V AC
MPN H5S-B
Type Timer
