Product Description

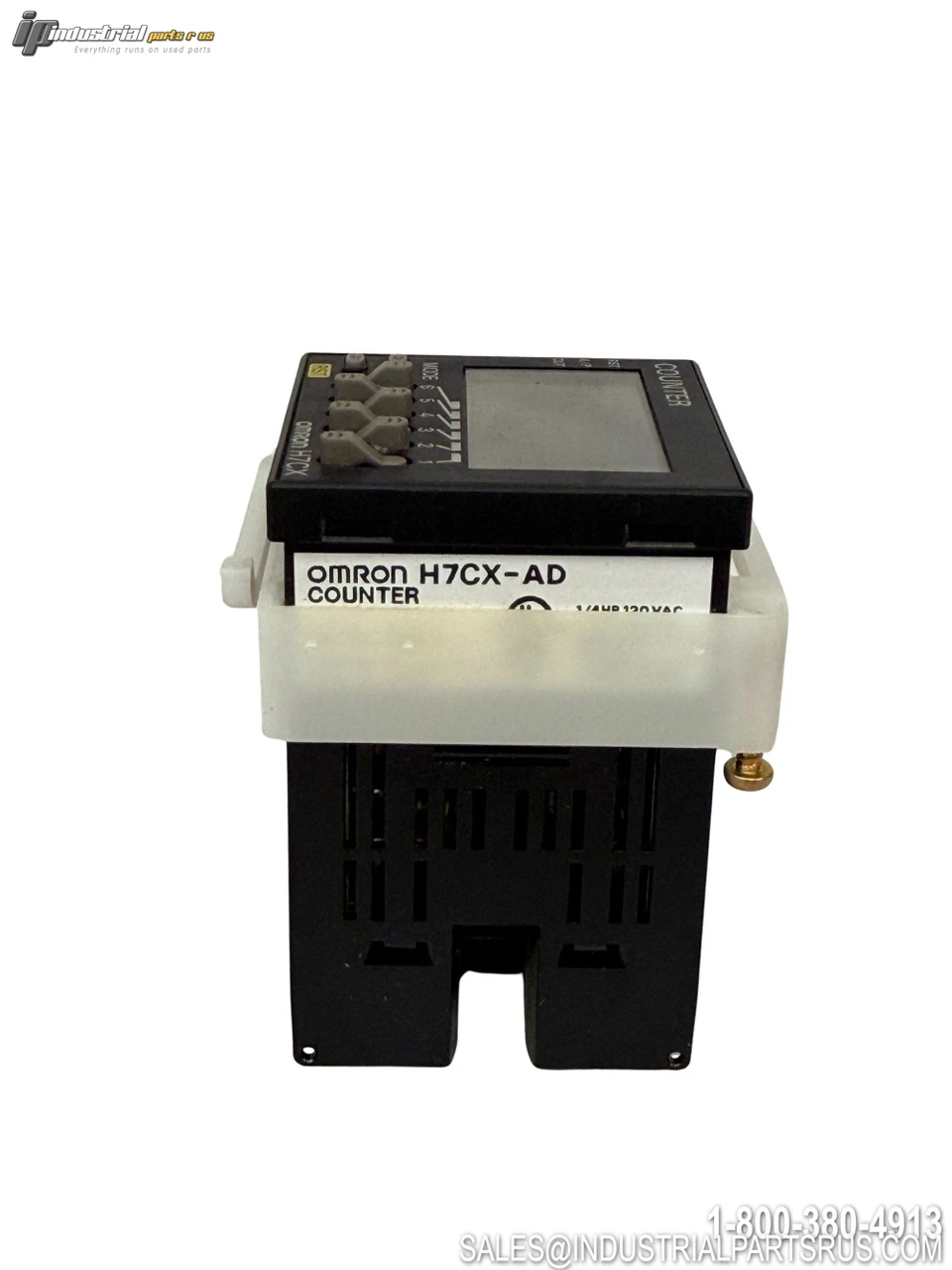

The Omron H7CX-AD is a 6-digit multifunction preset counter in a compact 1/16 DIN (48×48 mm) panel-mount housing. It operates on a 12–24 VDC supply and features a dual-row negative transmissive 7-segment LCD with color-selectable backlight (red/green/orange for count value). The unit supports 1-stage preset and total counter configurations with SPDT relay output and accepts both no-voltage (NPN/PNP open collector switchable) and voltage inputs.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Omron |
| Model / Part Number | H7CX-AD |
| Product Series | H7CX-A |
| Product Type | Multifunction Preset Counter |
| Form Factor / Size | 1/16 DIN (48 x 48 mm) |
| Supply Voltage | 12–24 VDC |
| Power Consumption | Approx. 3.7 W at 12 VDC; Approx. 4.7 W at 24 VDC |
| Output Type | SPDT Relay (Contact Output) |
| Contact Rating | 3 A at 250 VAC / 3 A at 30 VDC (resistive load) |
| Minimum Applicable Load | 10 mA at 5 VDC |
| Number of Digits | 6 (Count Value) + 6 (Set Value) |
| Counting Range | -99,999 to 999,999 |
| Display Type | Negative Transmissive 7-Segment LCD with Backlight |
| Display Character Height (PV) | 10 mm |
| Display Character Height (SV) | 6 mm |
| Backlight Colors | Red / Green / Orange (switchable for Count Value); Green (Set Value) |
| Max Counting Speed | 30 Hz or 5 kHz (selectable, ON/OFF ratio 1:1) |
| Sampling Period | 200 ms max. |
| Input Type | No-Voltage Contact; NPN/PNP Open Collector (switchable); Voltage Input |
| Input Terminals | CP1, CP2, RESET, TOTAL RESET |
| Operating Modes | Increment, Decrement, Command, Individual, Quadrature |
| Counter Configurations | 1-Stage Preset, 1-Stage with Total Counter (selectable) |
| Memory Type | EEPROM (100,000 overwrites min.; data retention 10 years min.) |
| Mounting Type | Panel Mount / Flush Mounting |
| Terminal / Connection Type | Screw Terminals |
| Panel Cutout Dimensions | 45 mm x 45 mm |
| Body Dimensions (W x H x D) | 48 mm x 48 mm x 59 mm (depth) |
| Ingress Protection (IP Rating) | IP66 (IEC); UL508 Type 4X (indoors, with Y92S-29 waterproof packing) |
| Operating Temperature | -10°C to 55°C (no icing or condensation) |
| Body Color | Black (N1.5); Optional white or light gray front panels available |
| Reset Methods | External, Front Panel, Programmable |
| RoHS Compliant | Yes |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Output Type Relay (SPDT Contact Output)
Manufacturer Omron
Part Number H7CX-AD
Shelf F-10 Tub 1
Model H7CX-AD
MPN H7CX-AD
Type Counter
