Product Description

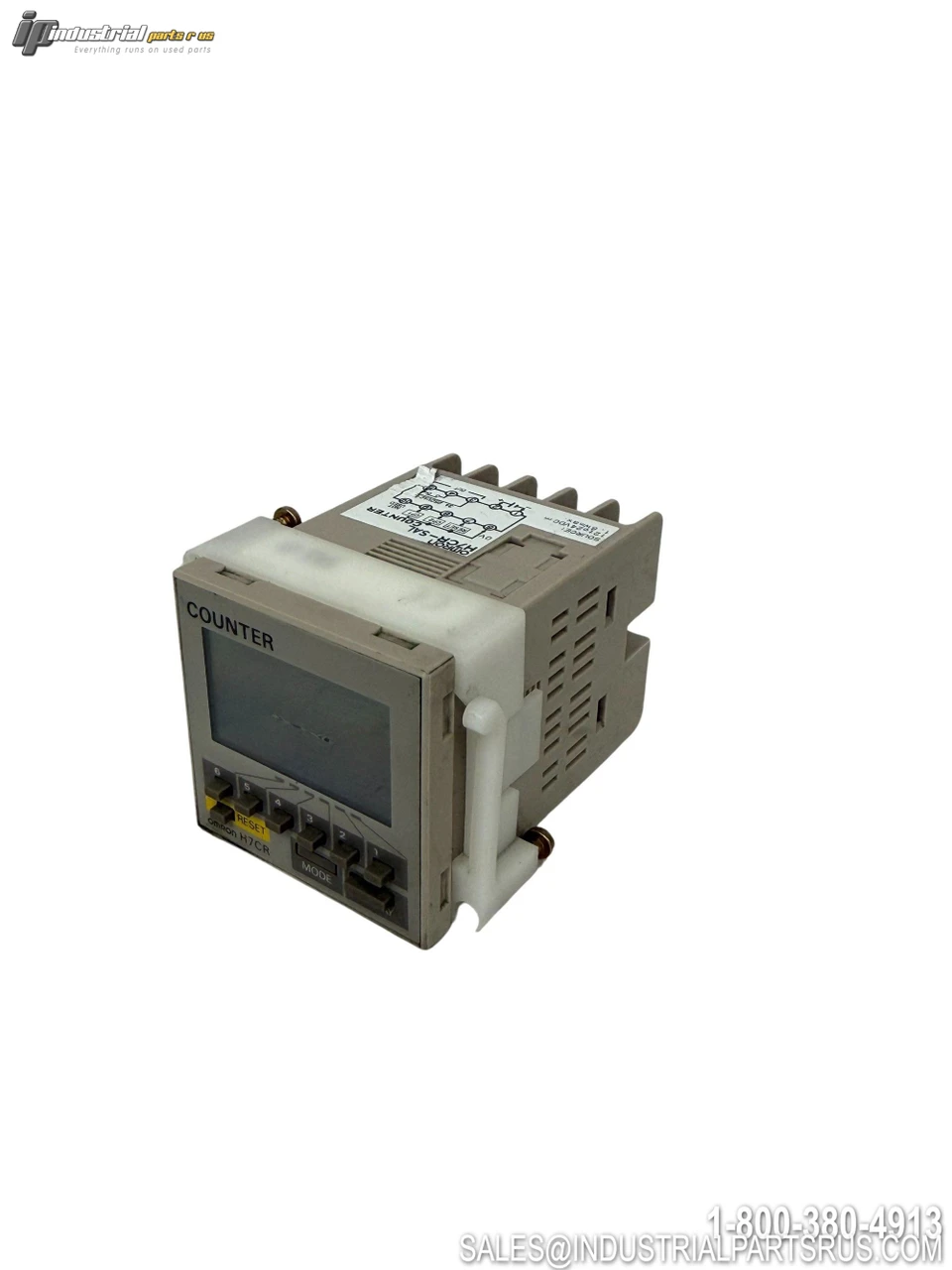

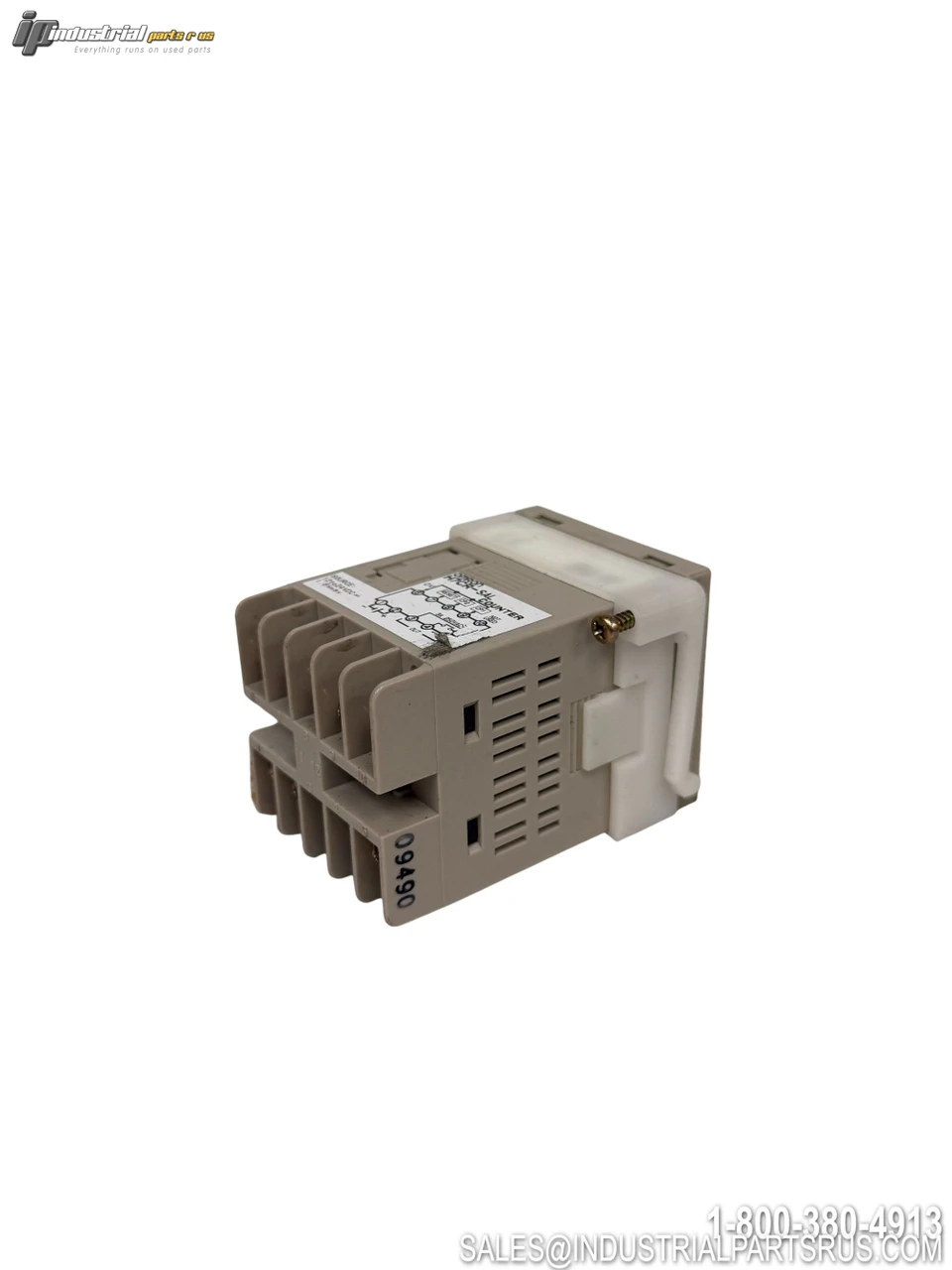

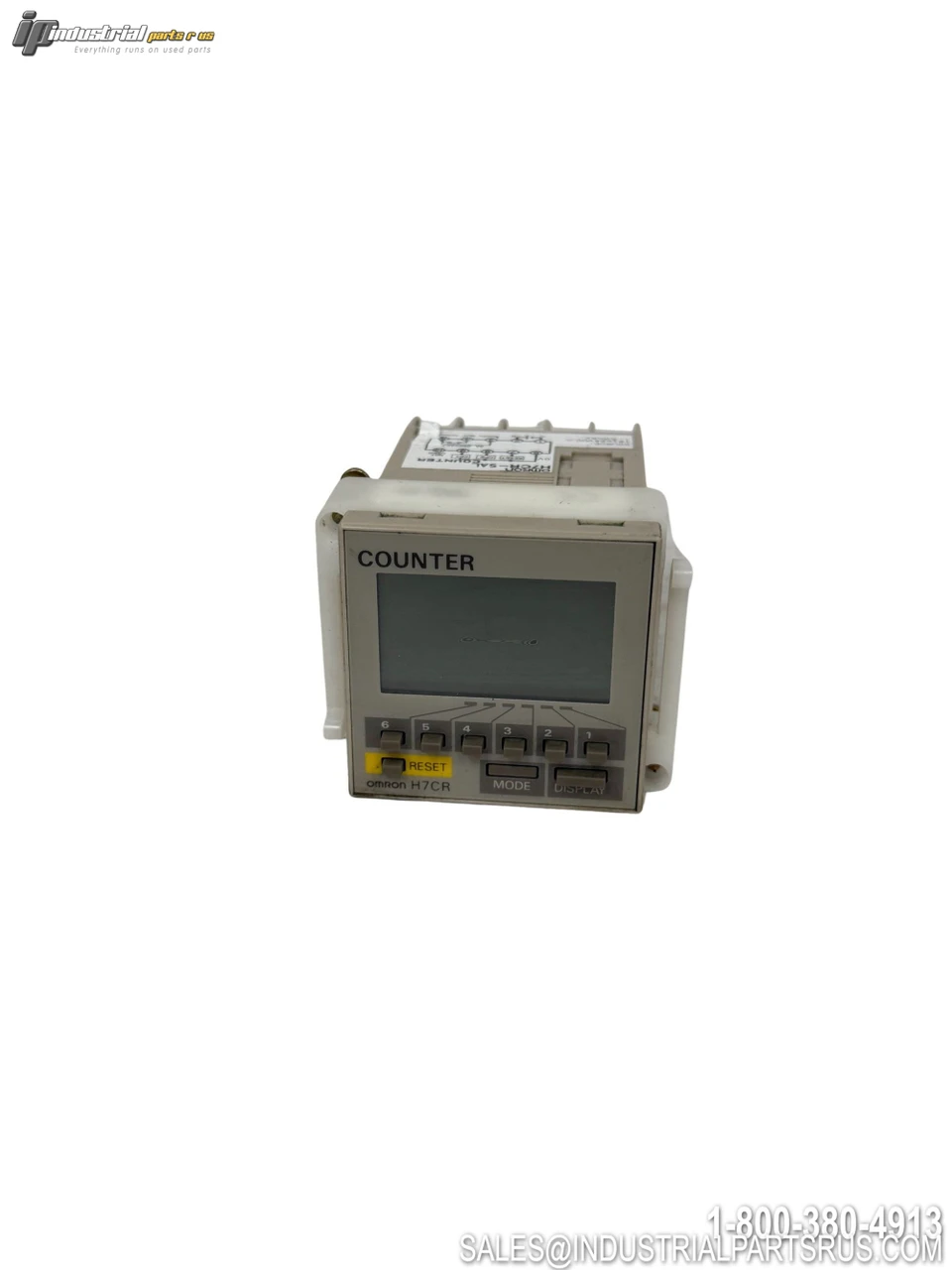

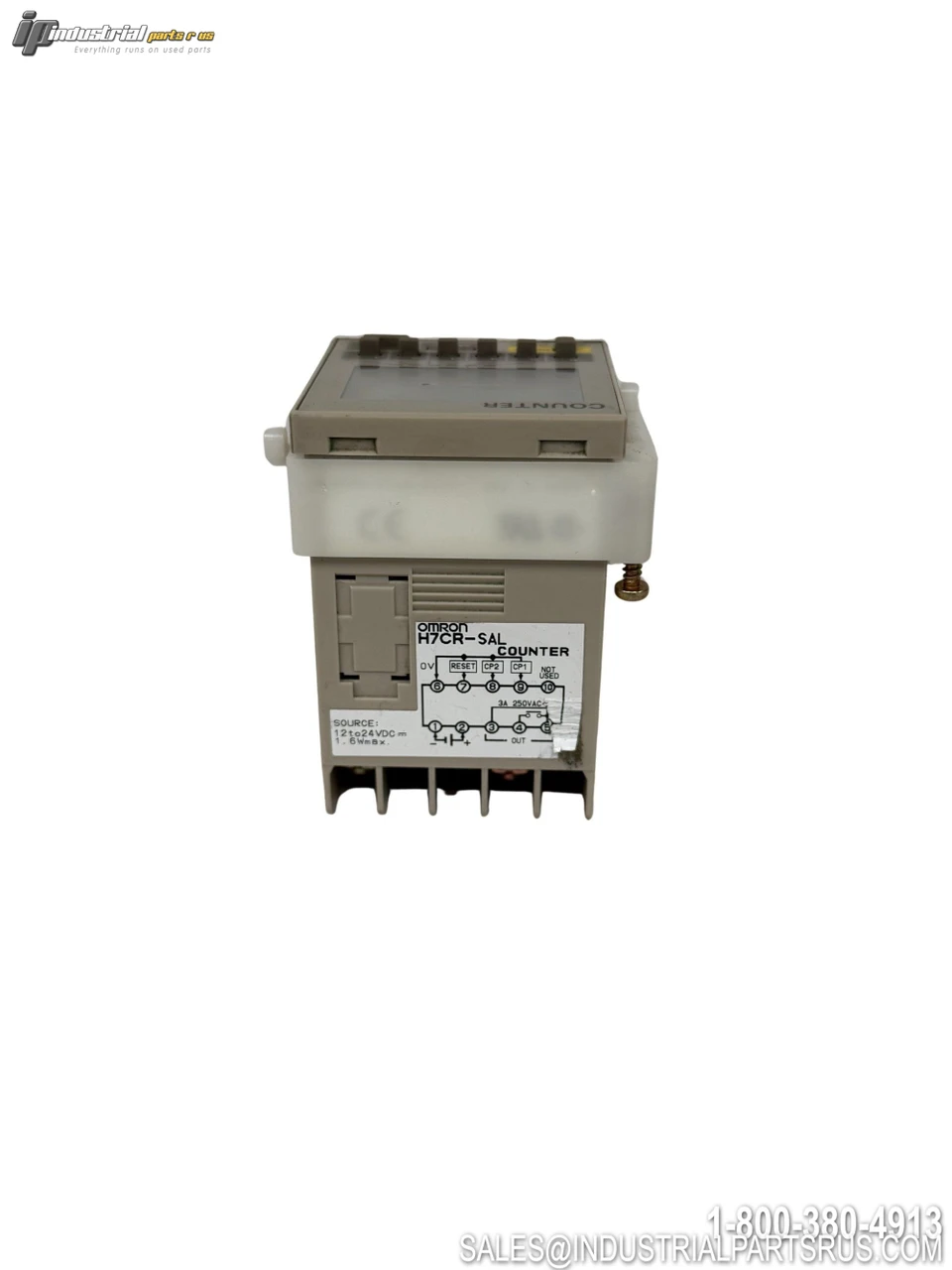

The Omron H7CR-SAL is a compact 1/16 DIN (48×48mm) digital preset counter featuring a 6-digit LCD display and short-body (64mm depth) design for space-constrained panel installations. It accepts a 12–24VDC supply voltage with no-voltage (NPN) count input and provides a relay contact output rated at 3A, 250VAC. The H7CR series supports up, down, and reversible counting modes with external and manual reset, and includes non-replaceable lithium battery backup for memory retention of approximately 10 years at 20°C. Housing is constructed from Polycarbonate (PC) / ABS material, and the Y92F-30 panel mounting adaptor is included.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Omron |
| Model / Part Number | H7CR-SAL |
| Product Type | Digital Preset Counter |
| Series | H7CR |
| Supply Voltage | 12–24VDC |
| Contact Rating (Output) | 3A, 250VAC |
| Output Type | Relay (SPST-NO contact) |
| Input Type | No-voltage (NPN transistor) |
| Display Type | 6-Digit LCD (7-segment, non-backlit) |
| Display Range | 0 to 999,999 |
| Number of Presets | 1 (Economy/Single Preset) |
| Max Counting Speed | 30 / 1,000 / 5,000 cps (selectable) |
| Input Modes | Up, Down, Reversible A (command), Reversible B (individual), Reversible C (phase difference) |
| Output Modes | N, F |
| Reset System | External and manual reset |
| Body / Depth | Short body — 64mm deep |
| Panel Cutout / DIN Size | 48 x 48mm (1/16 DIN) |
| Mounting Type | Flush panel mount |
| External Connections | Screw terminals |
| Enclosure Rating | IP54 (panel surface) |
| Operating Voltage Range | 85% to 110% of rated voltage |
| Memory Backup | Approx. 10 years at 20°C (non-replaceable lithium battery) |
| Approvals / Standards | UL508, CSA C22.2 No.14, conforms to EN61010-1 / IEC1010-1, EMC |
| Approx. Weight | Approx. 120g (H7CR-S type) |
| Panel Mounting Adaptor | Y92F-30 (included) |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Mounting Style Panel Mount
Current Rating 3 A
Output Type Relay (SPST-NO contact)
Material Polycarbonate (PC) / ABS Housing
Manufacturer Omron
Enclosure Type IP54 (panel surface)
Part Number H7CR-SAL
Series H7CR
Shelf F-10 Tub 2
Model H7CR-SAL
Coil Voltage 12-24VDC
MPN H7CR-SAL
Type Counter
