Product Description

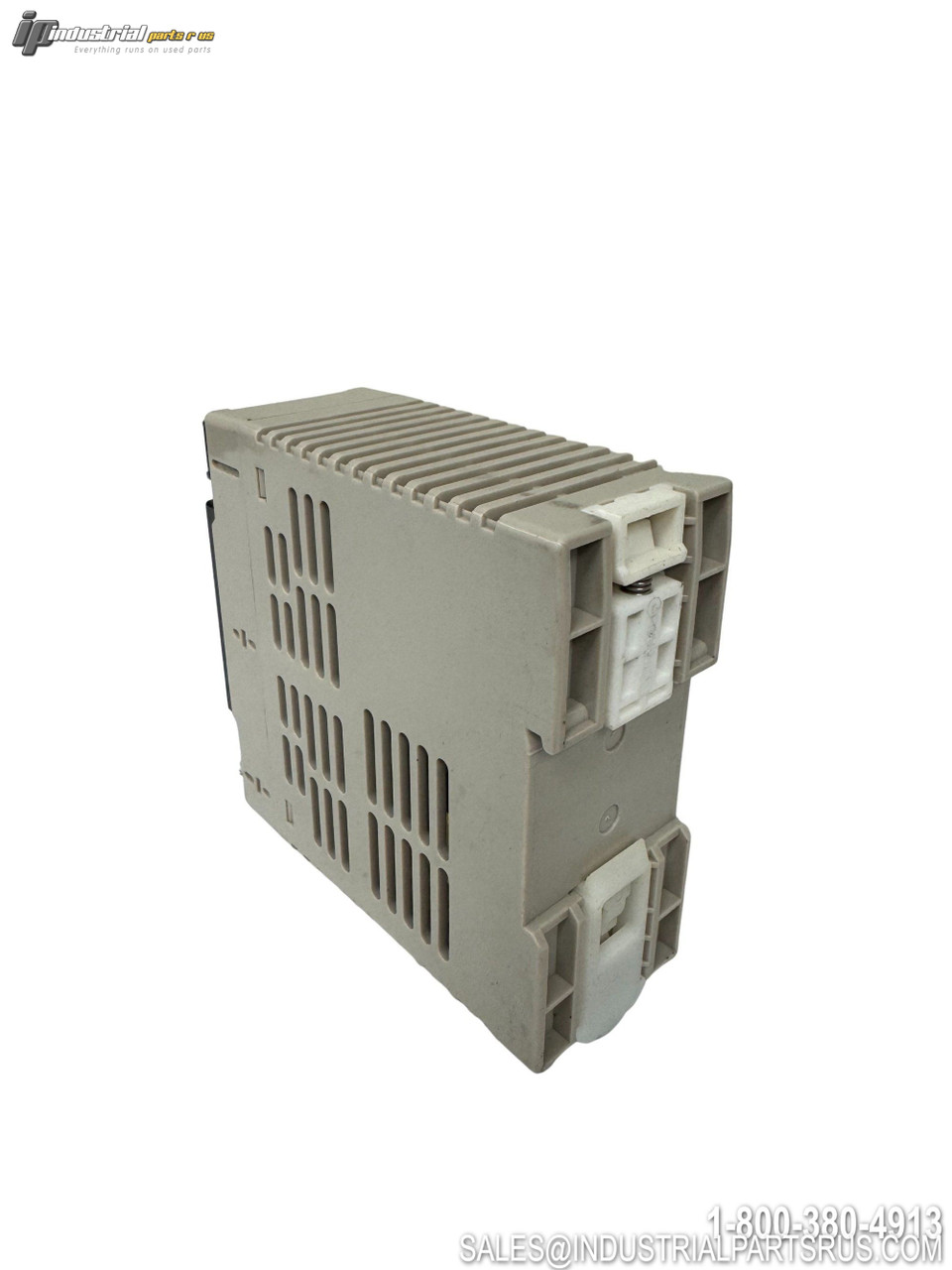

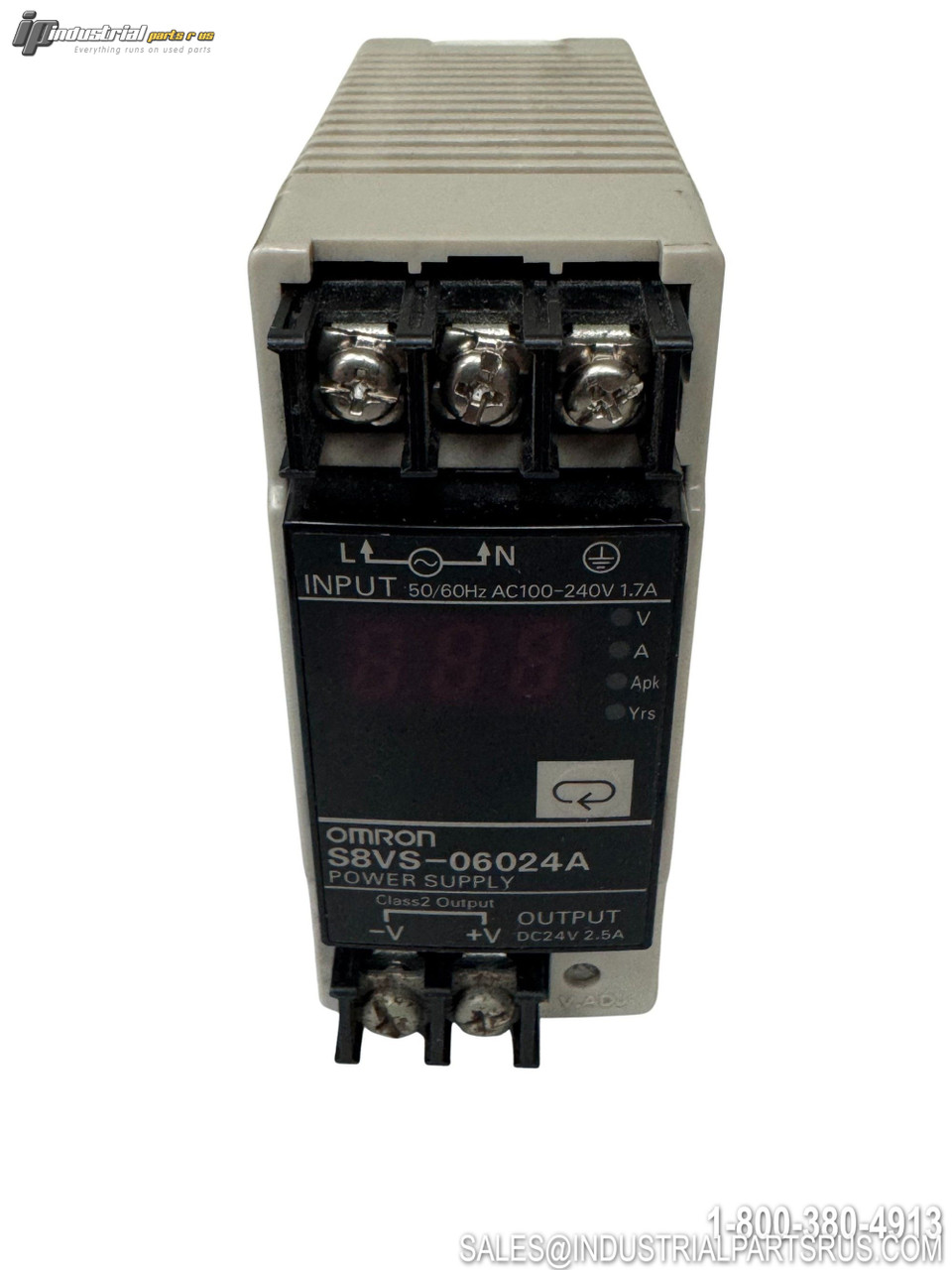

The Omron S8VS-06024A /ED2 is a Switch Mode Power Supply (SMPS) that provides reliable 60W power conversion from AC to DC. This compact unit delivers 24VDC at 2.5A output current and features a wide universal input voltage range of 100-240VAC. Designed for DIN rail mounting with screw terminal connections, it includes display monitor functionality and undervoltage alarm indication for enhanced system monitoring.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Omron |
| Model/Part Number | S8VS-06024A /ED2 |
| Product Type | Switching Power Supply |
| Series | S8VS |
| Power Rating | 60W |
| Input Voltage | 100-240VAC (85-264VAC range) |
| Input Current | 1.7A max @ 100VAC |
| Input Frequency | 50/60Hz |
| Output Voltage | 24VDC |
| Output Current | 2.5A |
| Efficiency | 78% minimum |
| Mounting Type | DIN Rail (35mm) |
| Terminal Type | Screw Terminal Block |
| Display Monitor | Yes |
| UL Class | Class 2 |
| Ripple | 2.0% (p-p) max |
| Operating Temperature | -10°C to +60°C |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer Omron
Part Number S8VS-06024A /ED2
Shelf GS-35
Model S8VS-06024A /ED2
MPN S8VS-06024A /ED2
Type Switching Power Supply
