Product Description

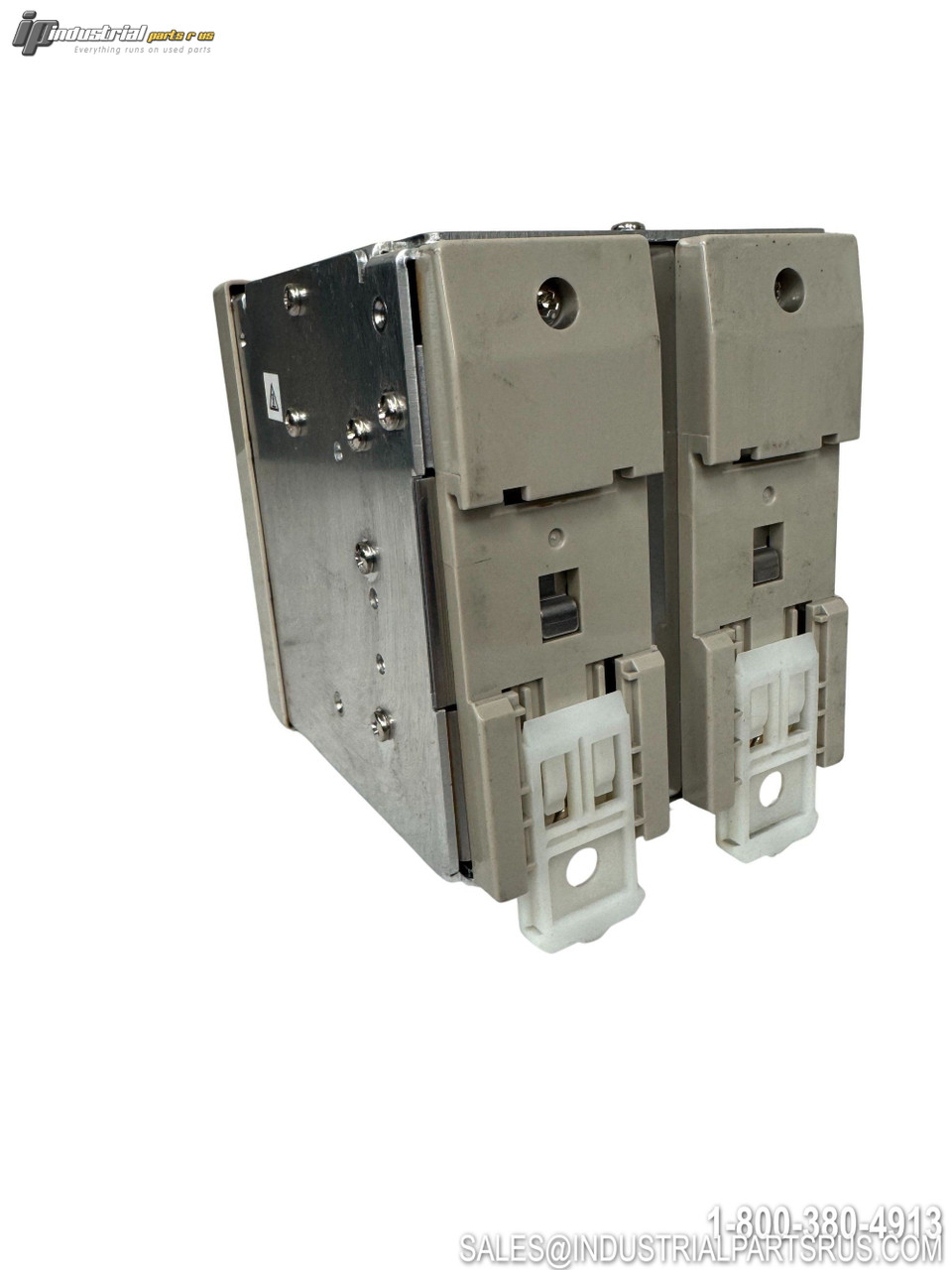

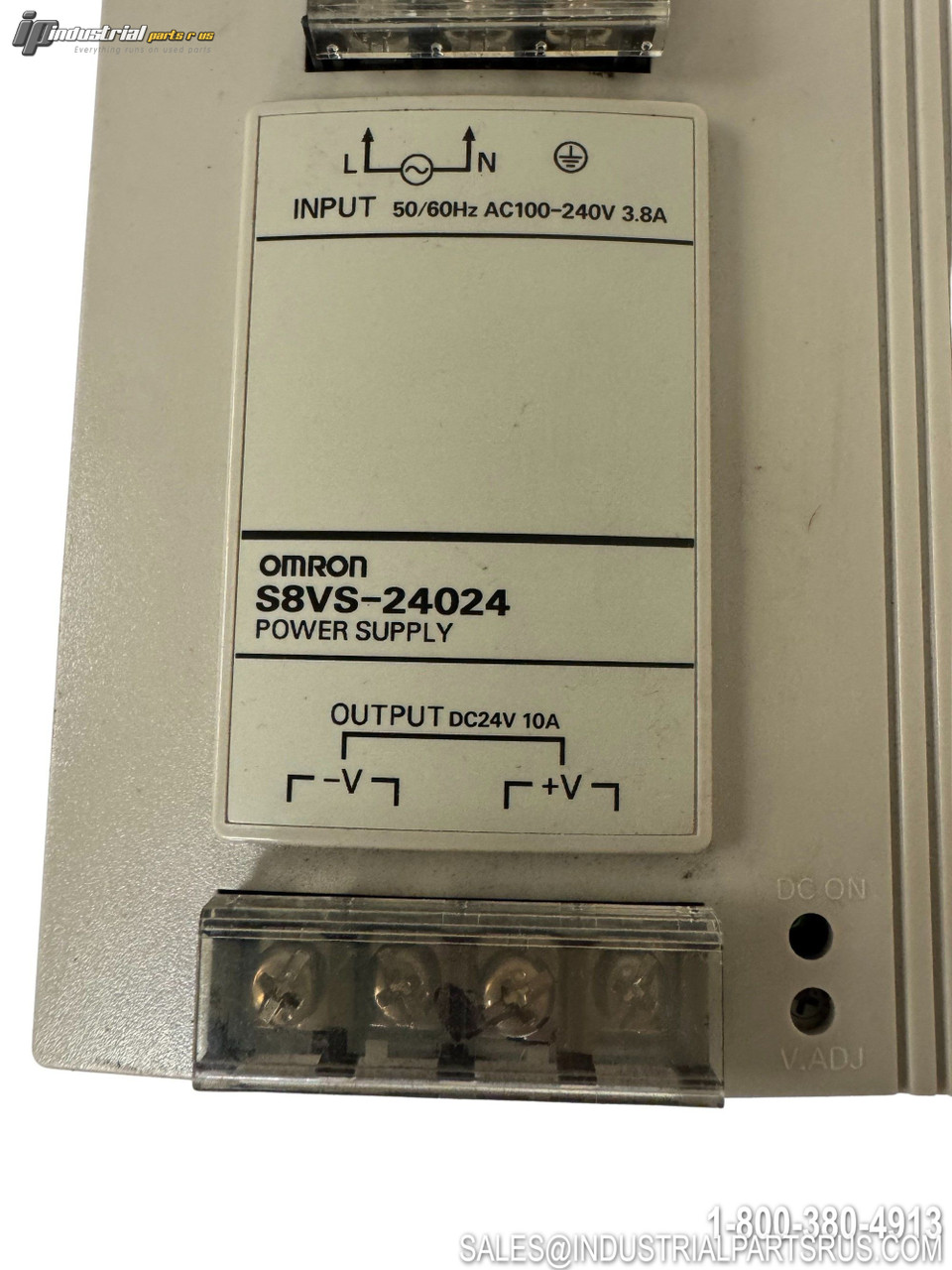

The Omron S8VS-24024 is a 240-watt switch mode power supply (SMPS) from Omron's S8VS series, designed for industrial DIN rail installation. It accepts a wide-range single-phase AC input (85–264 VAC) or DC input (80–370 VDC) and delivers a regulated 24 VDC output at up to 10 A. This basic model features a sinking alarm output (emitter COM), screw terminal block connections, natural convection cooling with no fan required, and automatic reset overload protection. The unit is gray in color and supports series operation of up to 2 units for higher voltage applications.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Omron |
| Model / Part Number | S8VS-24024 |
| Product Type | Switch Mode Power Supply (SMPS) |
| Series | S8VS |
| Power Rating | 240 W |
| Input Voltage (AC) | 85–264 VAC (100/120/240 VAC nominal) |
| Input Voltage (DC) | 80–370 VDC (110 VDC nominal) |
| Input Current (Max) | 3.8 A @ 100 VAC / 2.0 A @ 200 VAC |
| Input Phase | Single-phase (1AC) or DC |
| Input Frequency | 50/60 Hz |
| Output Voltage | 24 VDC |
| Output Current | 10 A |
| Number of Outputs | 1 |
| Output Type | Fixed |
| Hold Time | 64 ms @ 100 VAC / 64 ms @ 200 VAC |
| Alarm Output | Sinking (Emitter COM), 30 VDC max, 50 mA max |
| Indication Monitor | Without indication (basic model) |
| Overload Protection | 105%–160% of rated load current, auto reset (inverted-L drop) |
| Overvoltage Protection | Yes |
| Undervoltage Detection | Approx. 80% (75–90%) of rated output |
| Cooling Method | Natural convection (gravity/fanless) |
| Mounting Type | DIN Rail |
| Connection Type | Screw Terminal Block |
| Operating Temperature | -10°C to +60°C |
| Length | 125.3 mm |
| Width | 100 mm |
| Series Operation | Up to 2 units in series |
| Certifications | UL 508, CSA C22.2 No107.1, CE, EN 62477-1, EN 61204-3, EN 55011 Class A/B, SEMI F47-0706 |
| Status | Discontinued by Manufacturer |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Output Type Fixed
Country/Region of Manufacture China
Manufacturer Omron
Part Number S8VS-24024
Shelf F-14 Tub 15
Model S8VS-24024
MPN S8VS-24024
Type Switching Power Supply
