Product Description

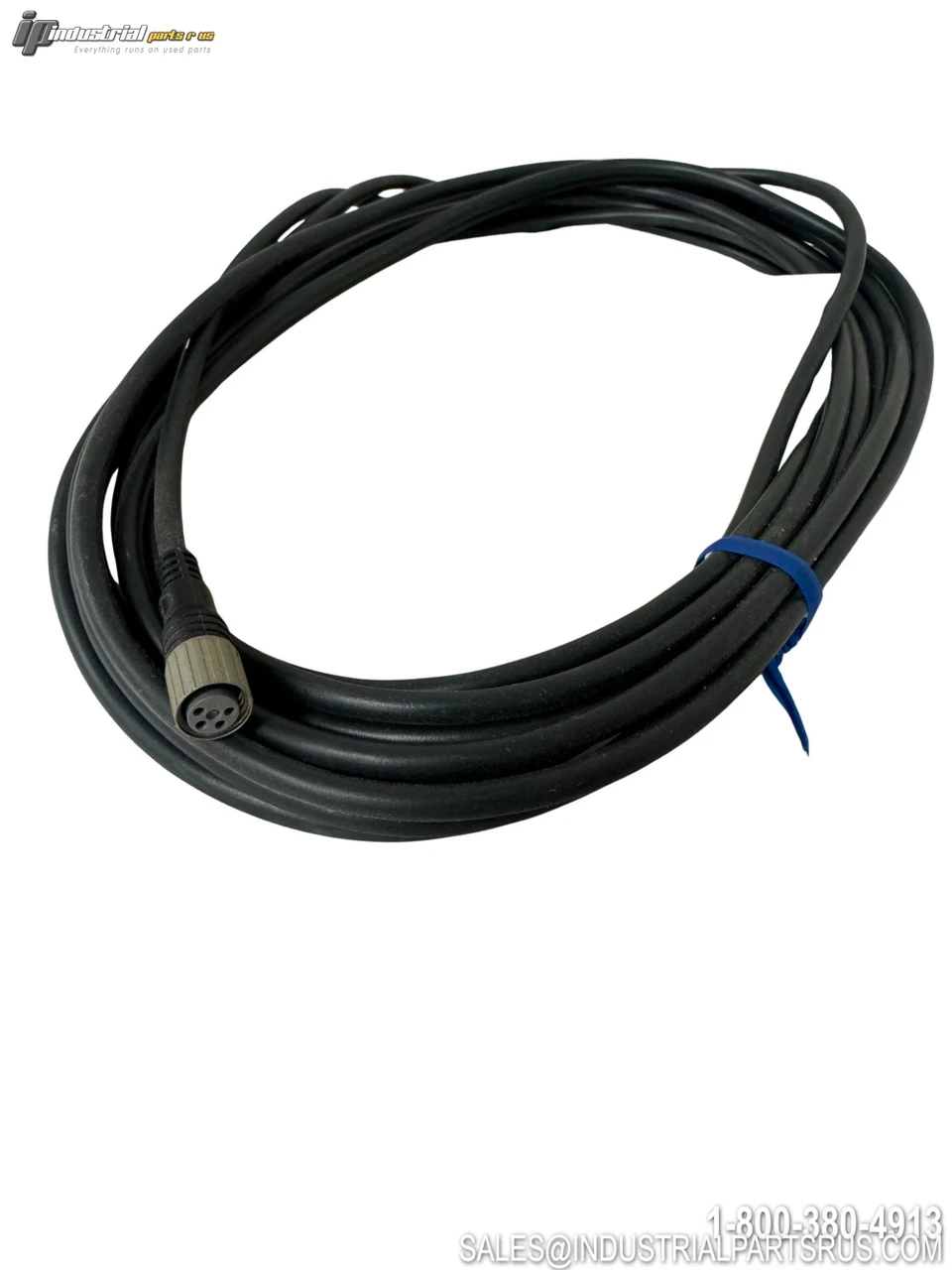

The Omron XS3F-M421-402-A is a round water-resistant sensor cordset from the XS3 Series, featuring an M8 screw-on straight socket (female) connector on one end and free bare-wire flying leads on the other. It is designed to connect industrial sensors and automation devices — including E3X, E3NX, E2E-X, E2EQ, E3Z, and E3NC series — to control panels or I/O systems with an IP67 environmental protection rating. The 4-pole, 2-meter PVC standard cable carries a 1A current rating and 125VDC voltage rating, making it suitable for a wide range of factory automation signal and power wiring applications.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Omron |
| Model / Part Number | XS3F-M421-402-A |
| Series | XS3 |
| Product Type | Sensor Cable / Cordset |
| Connector Type (End A) | M8 Screw-on, Straight Socket (Female) |
| Connector Type (End B) | Free End / Flying Leads (Bare Wire) |
| Number of Poles / Positions | 4 |
| Cable Length (Metric) | 2 m |
| Cable Length (Imperial) | 6.6 ft |
| Cable Material / Jacket | PVC (Standard) |
| Number of Cores | 4 |
| Shielding | Unshielded |
| IP / Protection Rating | IP67 |
| Current Rating | 1 A |
| Voltage Rating (DC) | 125 VDC |
| Contact Resistance | 40 mΩ |
| Operating Temperature (Min) | -25°C |
| Operating Temperature (Max) | 70°C |
| Connector Coding | A-Coding (4-pole) |
| Connector Orientation | Straight |
| RoHS Compliant | Yes |
| Compatible Sensor Series | E3X, E3NX, E2E-X, E2EQ, E3Z, E3NC, E32 |
| Gross Weight | 51.5 g |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686185
Manufacturer Omron
Enclosure Type IP67
Part Number XS3F-M421-402-A
Shelf K-27
Model XS3F-M421-402-A
MPN XS3F-M421-402-A
Type Sensors - OTHER
