Product Description

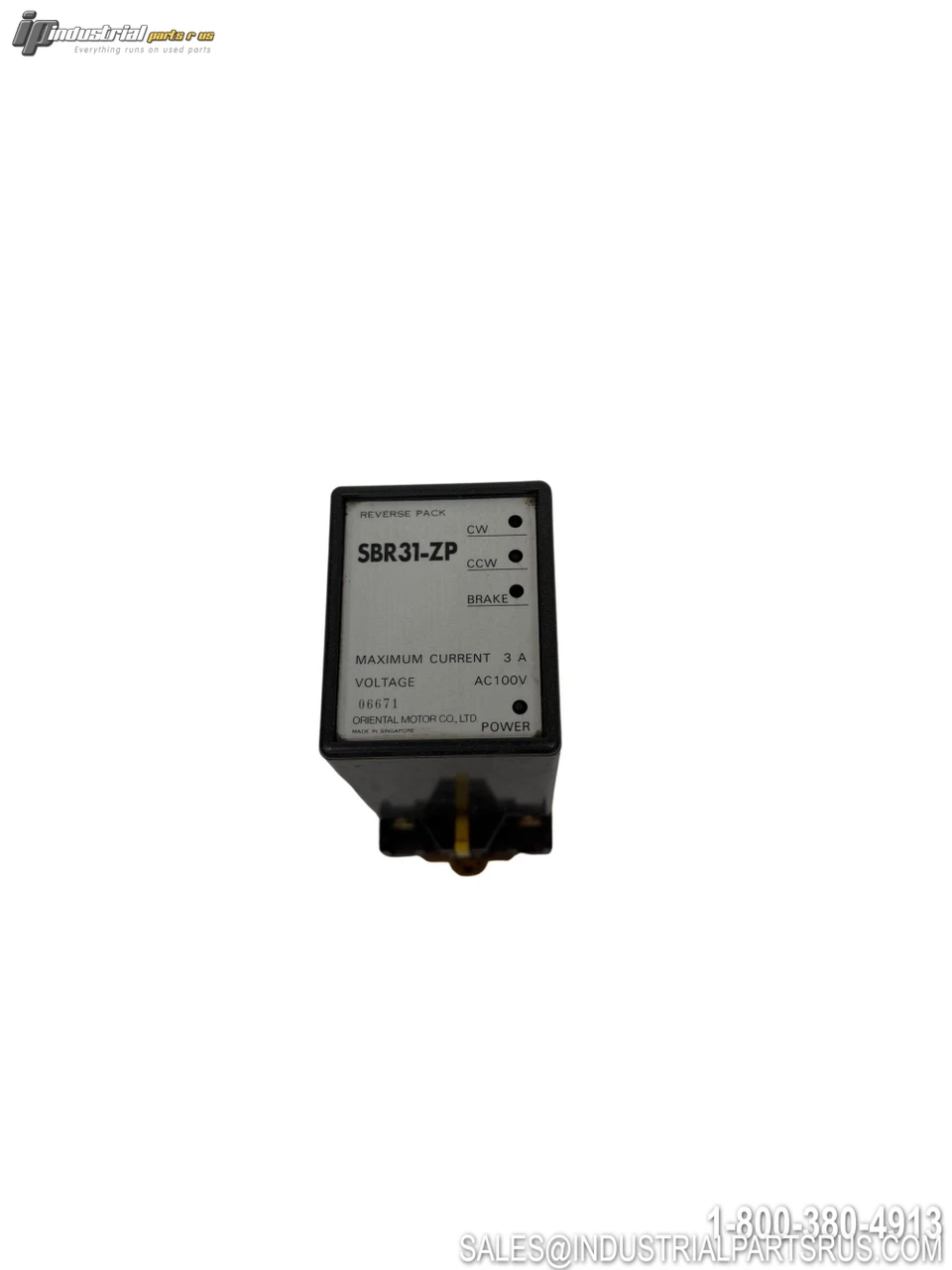

The Oriental Motor SBR31-ZP is a Reverse Pack relay module designed for use with Oriental Motor single-phase AC induction and reversible motors. It provides motor direction (CW/CCW) control and braking functions via a relay-based circuit, and mounts on an 11-pin (11PFA) socket base. This unit is used in indexing and positioning applications where controlled motor stopping and reversal are required.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Oriental Motor |
| Model / Part Number | SBR31-ZP |
| Product Type | Reverse Pack Relay (Brake/Reversing Control Module) |
| Rated Voltage | 100VAC |
| Rated Current | 3A |
| Power Source | AC |
| Phase | Single Phase |
| Socket Type | 11-Pin (11PFA / Omron 11PFA compatible) |
| Function | Motor Reversing and Braking Control |
| Application | AC Induction / Reversible Motor Control, Indexing |
| Also Known As (AKA) | QX9 |
| Relay Series | SBR Series |
| Terminal Base | Included (Terminal Base Block / Socket) |
| Manufacturer | Oriental Motor Co., Ltd. (Japan) |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Mounting Style Socket Mount (Plug-In)
Current Rating 3A
Full Load Amps 3A
Manufacturer Oriental Motor
Part Number SBR31-ZP
Shelf E-19
Model SBR31-ZP
Coil Voltage 100VAC
MPN SBR31-ZP
Type Relay
