Product Description

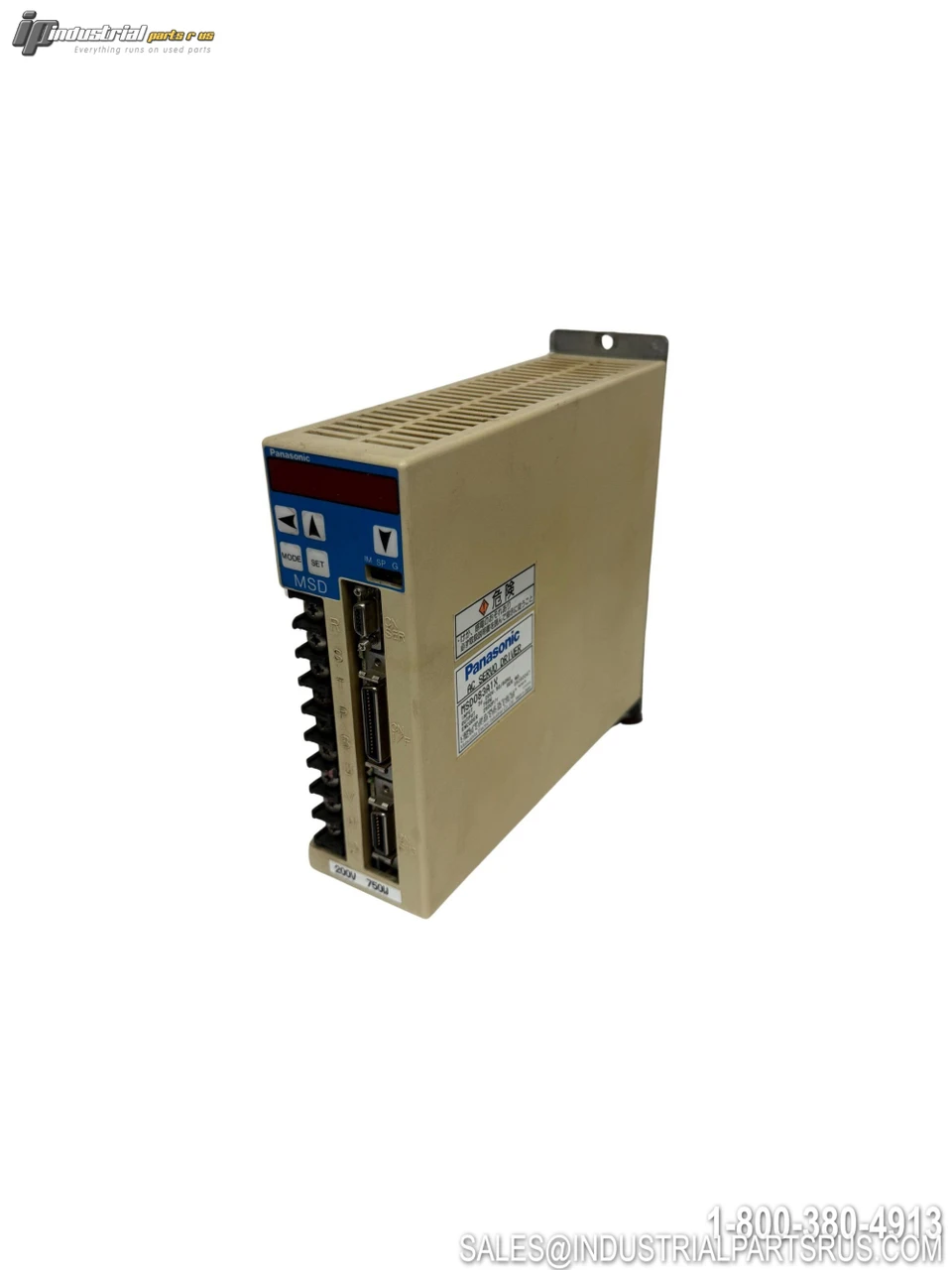

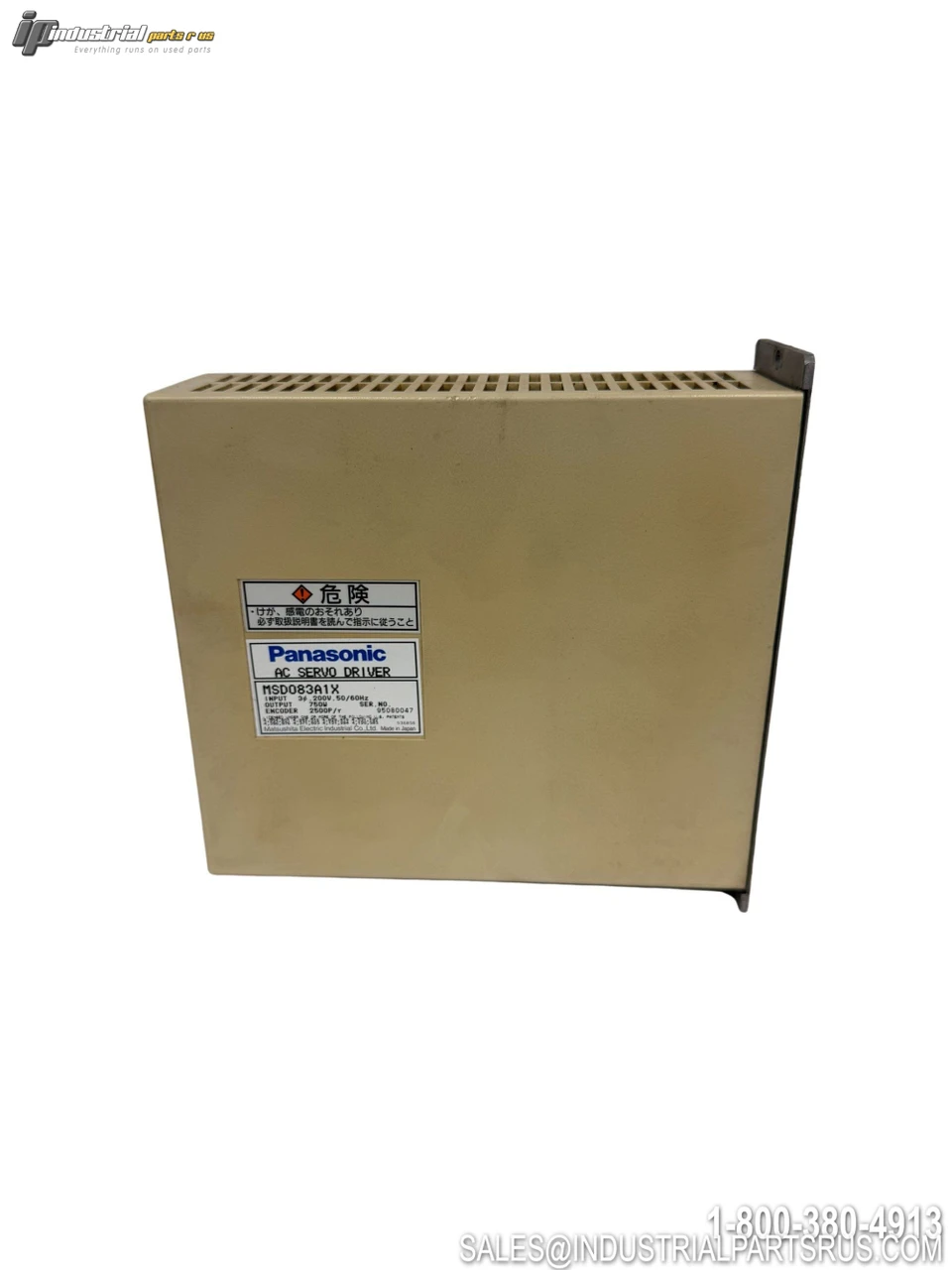

The Panasonic MSD083A1X is a MINAS X Series AC Servo Driver designed to precisely control MSM low inertia AC servo motors. It accepts both single-phase and three-phase 200–230V AC input and delivers a rated output of 750W at 116V / 4.3A, making it well-suited for demanding motion control applications in robotics, automation, and material handling. This unit utilizes a 2500 pulse-per-revolution incremental encoder interface for accurate closed-loop speed and position feedback, and features real-time auto-gain tuning for simplified commissioning.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Panasonic |
| Model / Part Number | MSD083A1X |
| Manufacturer | Panasonic (Matsushita Electric Industrial Co., Ltd.) |
| Product Series | MINAS X Series |
| Product Type | AC Servo Driver (Amplifier) |
| Input Voltage | 200–230V AC |
| Input Phase | Single-Phase or Three-Phase (1Ø / 3Ø) |
| Input Current | 4.0A (3-phase) / 3.7A (single-phase) |
| Input Frequency | 50 / 60 Hz |
| Output Power | 750W |
| Output Voltage | 116V |
| Output Current | 4.3A |
| Encoder Resolution | 2500 P/R (Pulses per Revolution) — Incremental |
| Compatible Motor Type | MSM Low Inertia AC Servo Motors |
| Control Modes | Position, Velocity, Torque |
| Motor Series Compatibility | MINAS Series (MSM Low Inertia) |
| RoHS Compliance | Compliant (EU RoHS 2011/65/EU & 2015/863/EU) |
| Status | Discontinued by Manufacturer |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686185
Manufacturer Panasonic
Part Number MSD083A1X
Shelf E-15
Model MSD083A1X
MPN MSD083A1X
Type Servo Drive
