Product Description

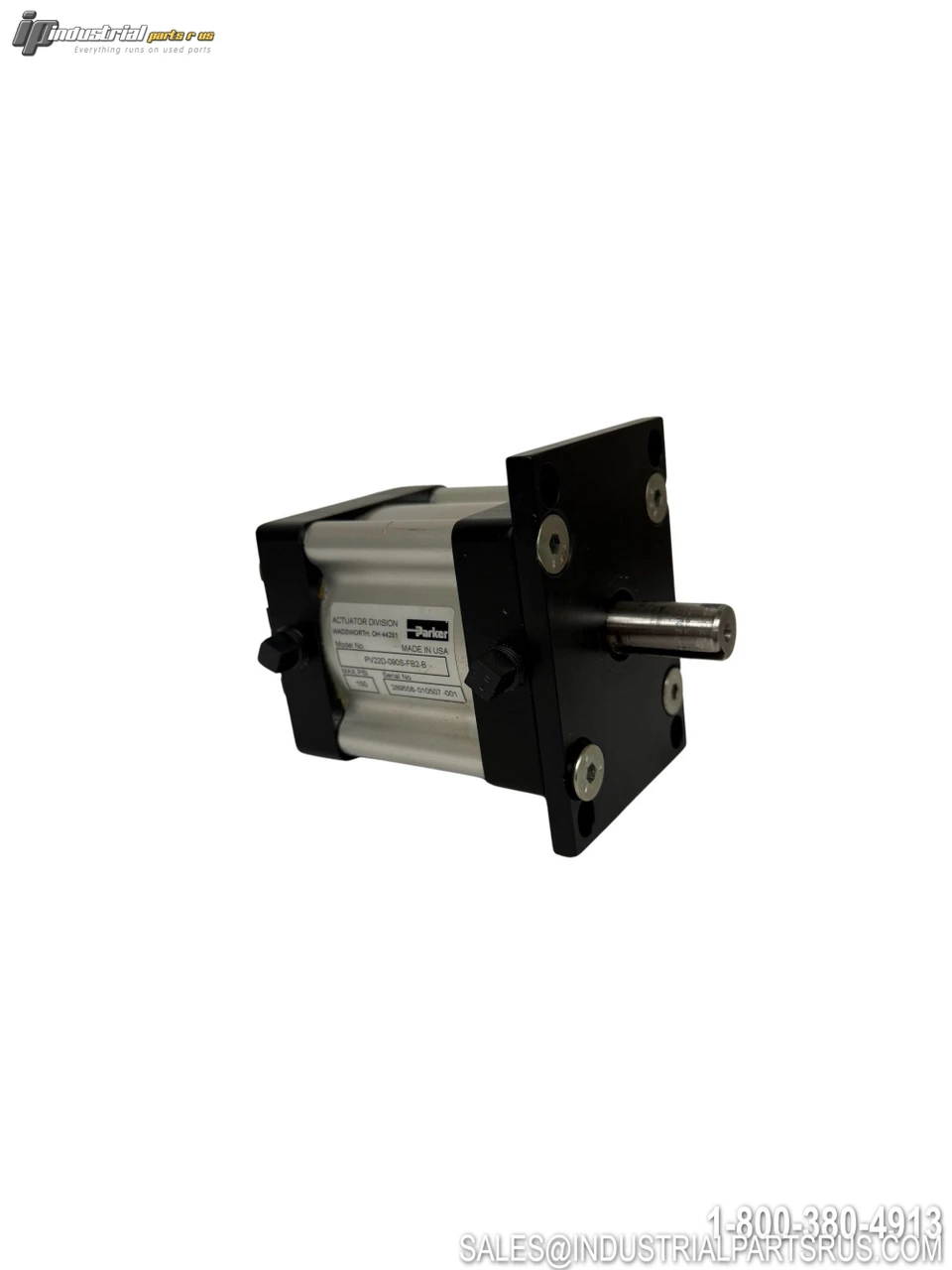

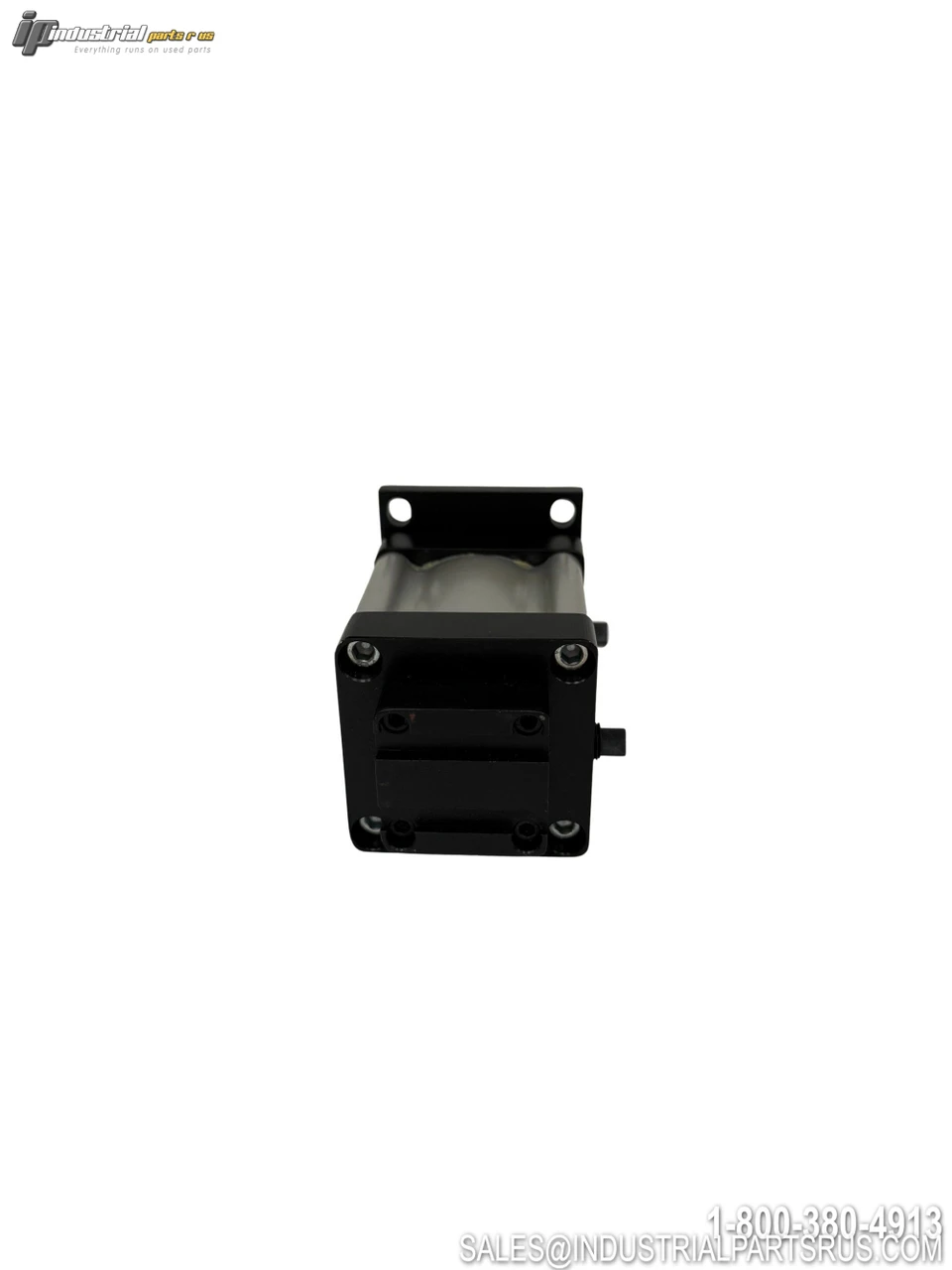

The Parker PV22D-090S-FB2-B is a pneumatic vane-type rotary actuator from Parker Hannifin's PV Series, Automation Actuator Division. This size 22 double-vane unit features a 90° rotation setting with magnets added for position sensing (order switches separately), front flange mounting, single male keyed inch shaft, and NPTF top ports. The hard-coat anodized aluminum body and stainless steel shaft deliver long service life in demanding industrial environments.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Parker |
| Model / Part Number | PV22D-090S-FB2-B |
| Product Series | PV Series – Pneumatic Vane Rotary Actuator |
| Model Size | 22 |
| Vane Configuration | Double Vane (D) |
| Maximum Rotation (Double Vane) | 100° ± 1° |
| Rotation Setting | 090S – Magnets Added, 90° Setting (switches ordered separately) |
| Maximum Operating Pressure | 150 PSIG (10.3 bar) |
| Mounting Style | F – Front Flange |
| Shaft Configuration | B – Single Male Keyed (Inch) |
| Shaft Material | Stainless Steel |
| Port Configuration | 2 – NPTF Top (Standard) |
| Port Size | 1/8 NPTF |
| Design Series | B – Current Design Series |
| Seal Material (Standard) | Nitrile (NBR) |
| Body Material | Hard-coat Anodized Aluminum |
| Shaft Bearing Type | Composite Bushing (Thermoplastic Journal) |
| Position Sensing | Yes – Magnets included; Hall Effect or Reed switches ordered separately |
| Operating Temperature (Nitrile Seals) | 30°F to 180°F (-1°C to 82°C) |
| Filtration Requirement | 40 micron, dry filtered air |
| Manufacturer | Parker Hannifin Corporation – Automation Actuator Division |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Country/Region of Manufacture UNITED STATES
Rotation 100°
Material Stainless Steel
Max. Bar 10.3 bar
Max. PSI 150 PSIG
Ratio Double Vane
Manufacturer Parker
Part Number PV22D-090S-FB2-B
Series PV Series
Shelf B-4
Model PV22D-090S-FB2-B
Port Size 1/8 NPTF
MPN PV22D-090S-FB2-B
Type Pneumatic Cylinder
