Product Description

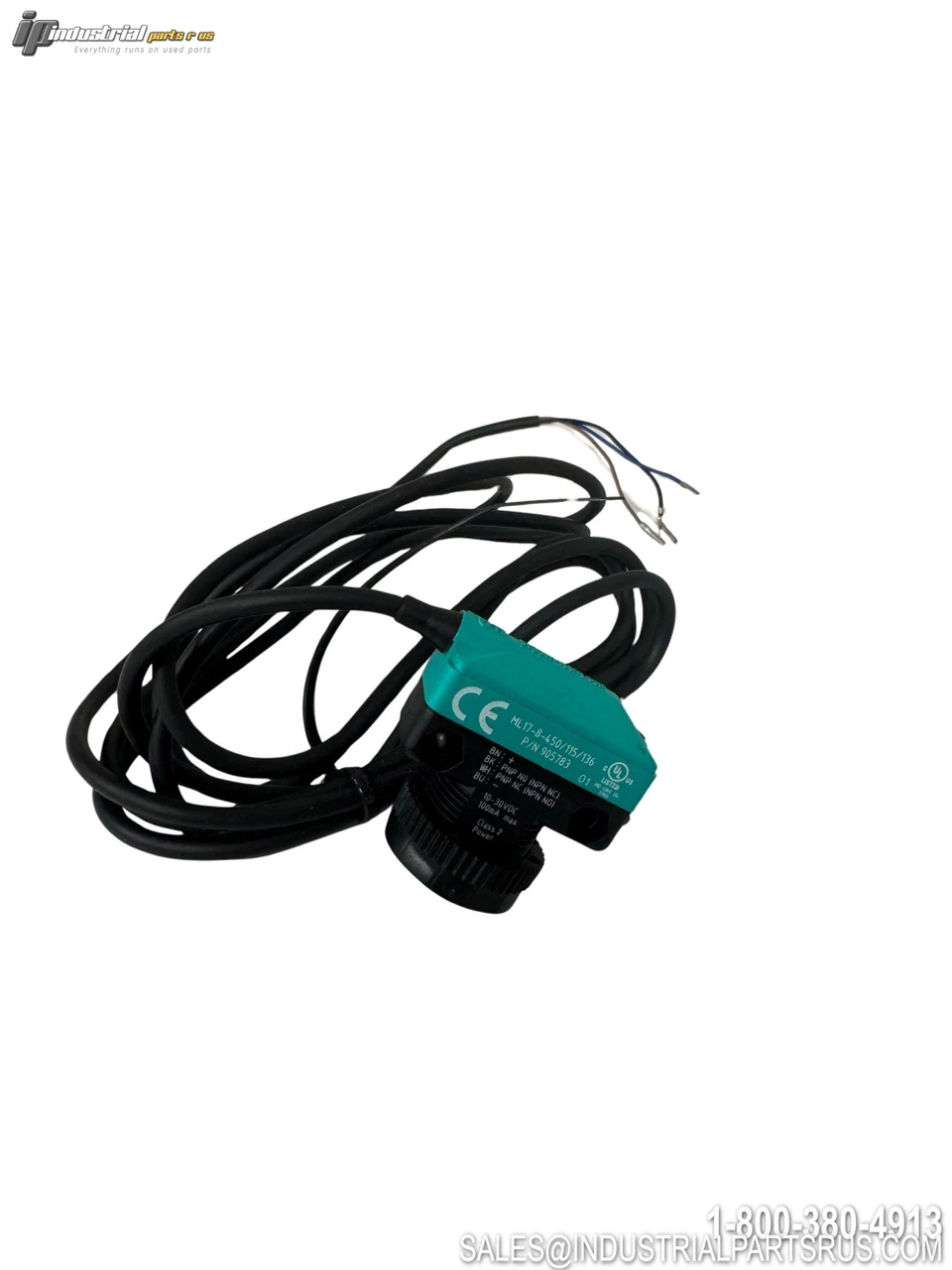

The Pepperl+Fuchs ML 17-8-450/115/136 is a compact diffuse mode photoelectric sensor from the ML17 Tru-Vue™ series. It detects objects within an adjustable range of 10 to 450 mm using a modulated infrared LED at 950 nm, and features a unique 4-in-1 push-pull output that auto-selects NPN or PNP for flexible wiring. The sensor is housed in a polycarbonate body with an M18 threaded snout, 360° high-visibility status LEDs, and an IP67 ingress protection rating, and ships with a pre-wired 2-meter PVC cable.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Pepperl+Fuchs |
| Model / Part Number | ML 17-8-450/115/136 |
| Manufacturer Part Number (Alt) | 905783 |
| Series | ML17 Tru-Vue™ |
| Sensor Type | Diffuse Mode (Proximity / Background Suppression) |
| Sensing Range | 10 – 450 mm (adjustable) |
| Reference Target | 100 mm × 100 mm white test card |
| Sensitivity Adjustment | Yes – single-turn potentiometer |
| Light Source | Infrared LED (IRED), 950 nm, modulated |
| Supply Voltage | 10 – 30 VDC (Class 2) |
| Output Type | 4-in-1 Push-Pull (NPN-NO, NPN-NC, PNP-NO, PNP-NC auto-selects) |
| Number of Outputs | 2 push-pull outputs (Q1 Light-On, Q2 Dark-On) |
| Output Current | 100 mA |
| Switching Type | Light-On / Dark-On |
| Response Time | ≤ 1.0 ms |
| Switching Frequency | 500 Hz |
| Short-Circuit Protection | Yes |
| Reverse Polarity Protection | Yes |
| Overvoltage Protection | Yes |
| Electrical Connection | 2 m PVC cable, 4-conductor, #26 AWG (fixed) |
| Housing Material | Polycarbonate |
| Mounting Type | Front mounting M18 threaded snout or side mounting holes |
| Thread Size | M18 × 1 |
| Dimensions (L × W × H) | 29.3 mm × 15 mm × 34.5 mm |
| Weight | 1.4 oz (approx. 40 g) |
| Ingress Protection (IP Rating) | IP67 |
| Operating Temperature | -20 °C to +55 °C (-4 °F to +131 °F) |
| Indicators | Yellow signal LED, Green operating LED, 360° visible |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Output Type Push-Pull (NPN/PNP)
Sensor Type Diffuse Mode Photoelectric
Operating Distance 10 – 450 mm (adjustable)
Manufacturer Pepperl+Fuchs
Enclosure Type IP67
Part Number ML 17-8-450/115/136
Shelf Q-5
Model ML 17-8-450/115/136
MPN ML 17-8-450/115/136
Type Photoelectric Sensor
