Product Description

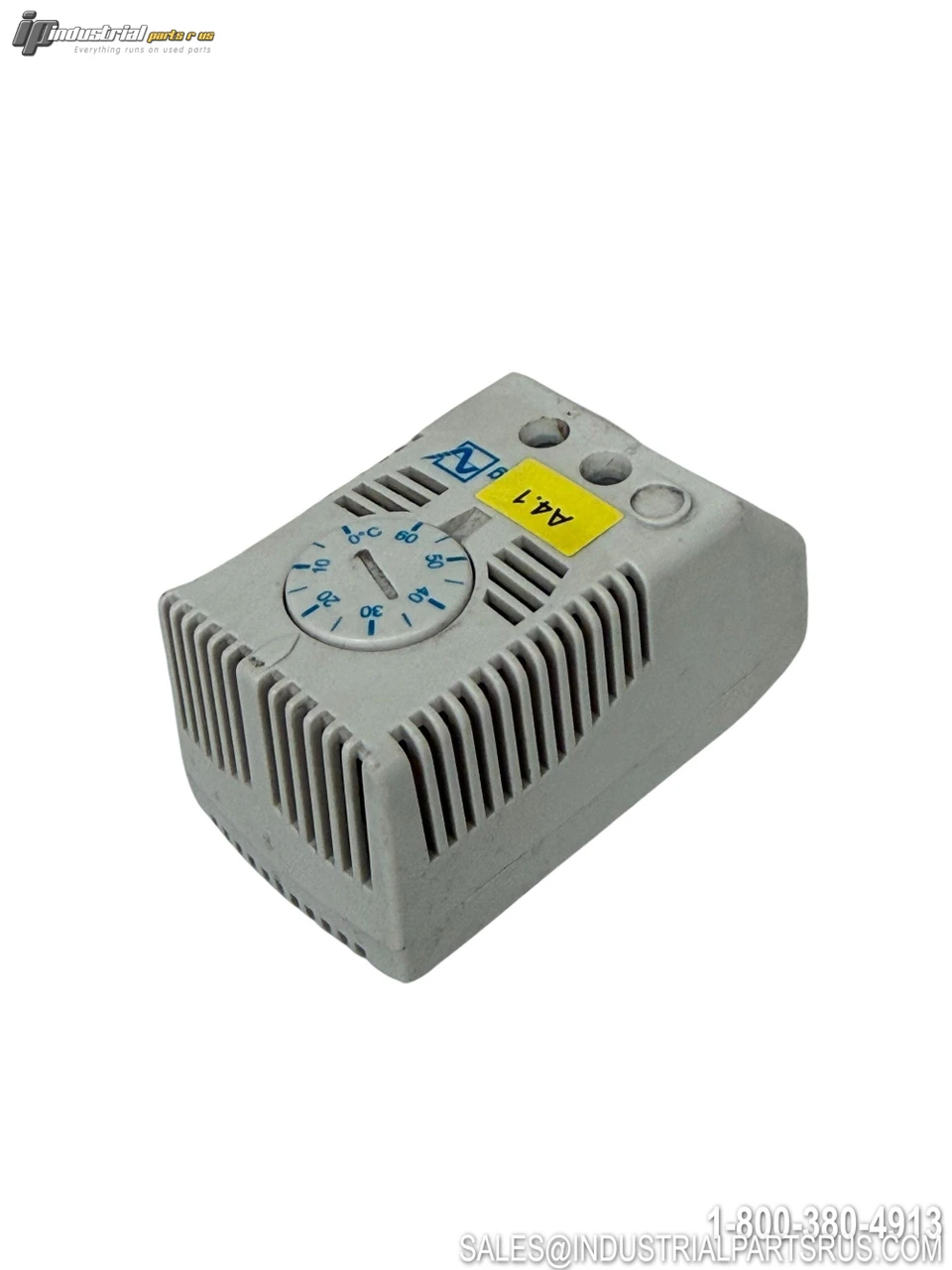

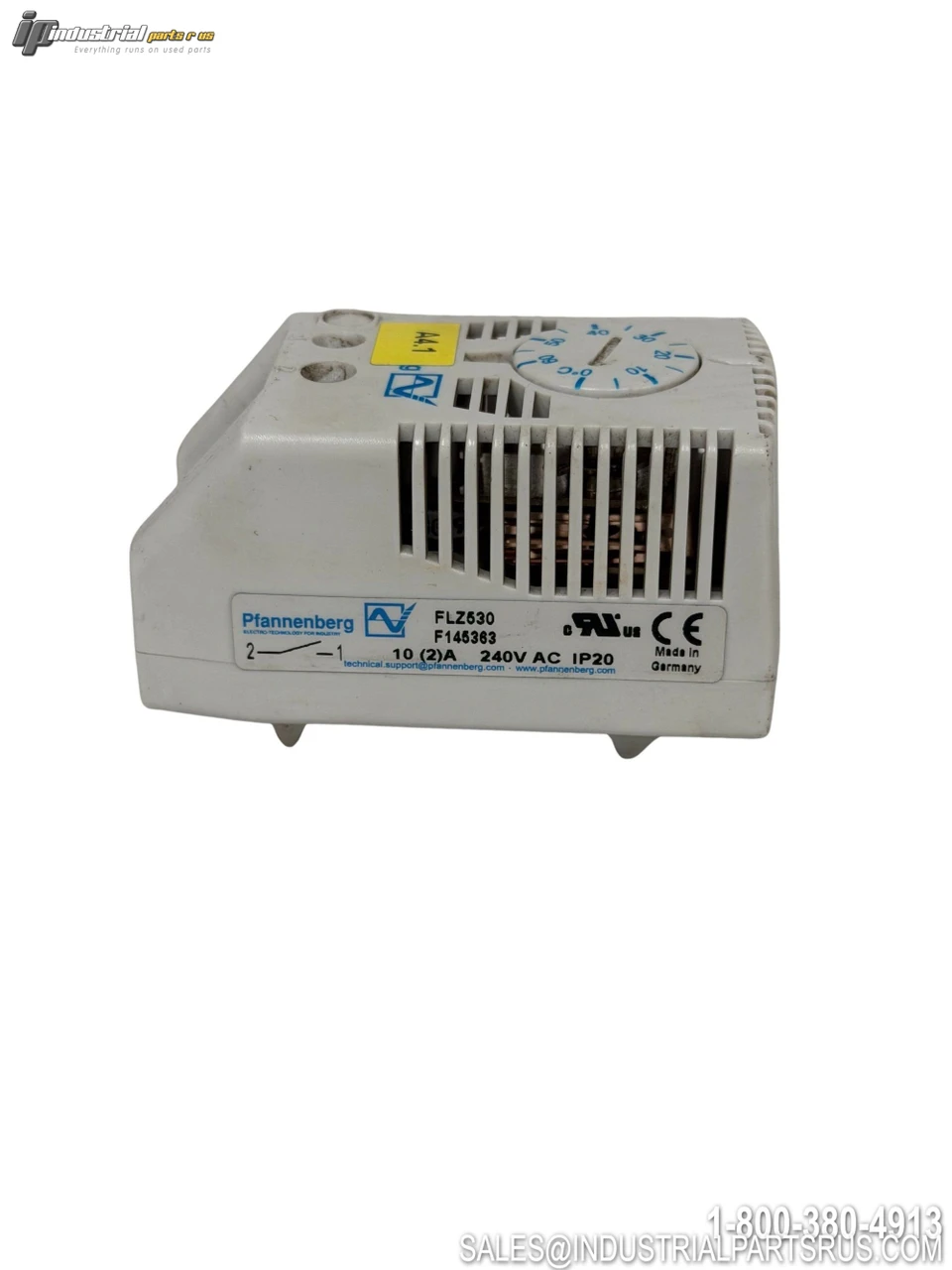

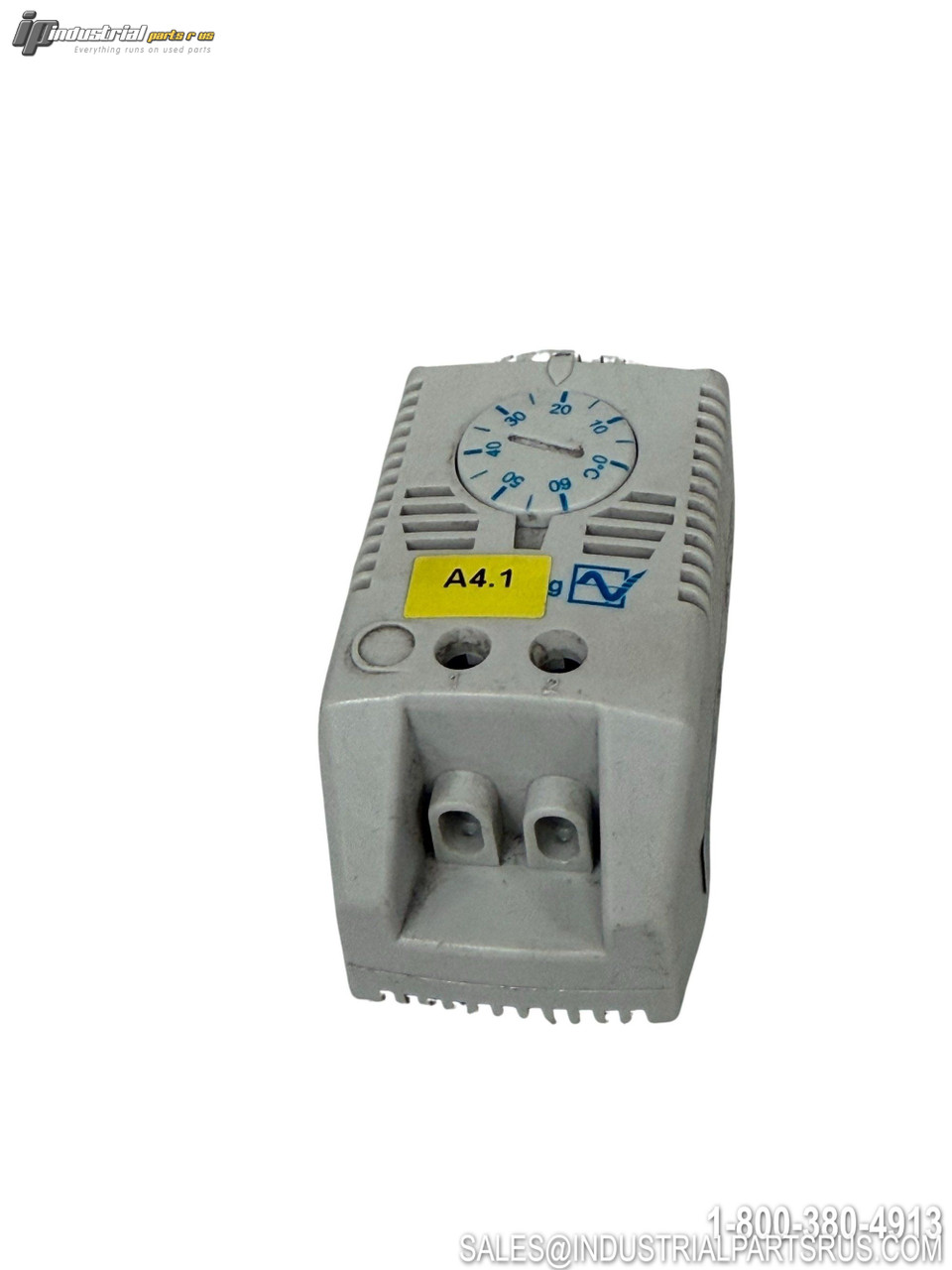

The Pfannenberg FLZ 530 is a compact bimetal thermostat designed for temperature control inside electrical control cabinets. It features a normally open (N.O.) spring contact and is used in combination with control cabinet heaters and Filterfans® to regulate internal enclosure temperature. The unit mounts directly or snaps onto a standard DIN rail without tools and features a universal temperature control dial with both Fahrenheit and Celsius ranges.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Pfannenberg |
| Model / Part Number | FLZ 530 |
| Article Number (°C range) | 17121000000 |
| Article Number (°F range) | 17121000010 |
| Product Type | Thermostat / Temperature Controller |
| Contact Type | N.O. (Normally Open) with spring contact |
| Temperature Range | 0°C – 60°C (32°F – 140°F) |
| Switching Point Tolerance | ±4 K |
| Switching Temperature Difference | <7 K |
| Max Switching Current (Resistive) – AC | 100–250V AC / 5A (resistive); 120V AC / 15A (resistive) |
| Max Switching Current (Inductive, cos φ=0.6) | 2A |
| Max Switching Power (DC) | 30 W |
| Voltage Rating | 100–250V AC |
| Amperage | 10A |
| Probe Type | Bimetal |
| Enclosure / Protection Rating | IP20 |
| Operating Temperature Range | -20°C to +80°C (-4°F to +179°F) |
| Housing Material | ABS high temperature plastic |
| Mounting Type | DIN rail (snap-on, tool-free) or direct mount |
| Dimensions (L x W x H) | 40 mm x 36 mm x 72 mm |
| Weight | 50 g |
| Temperature Scale | Dual (°F and °C) |
| UL Recognition | NITW2 and NITW8 (UL 508A panel compatible) |
| Compatible Accessories | Hygrostat (17207000000), Internal Enclosure Fan (18110000000) |
| Series | FLZ 510–530 |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Full Load Amps 240VAC / 5A; 120V AC / 15A
Manufacturer Pfannenberg
Enclosure Type IP20
Part Number FLZ 530
Shelf F-10 Tub 1
Model FLZ 530
MPN FLZ 530
Type Temperature Controller
