Product Description

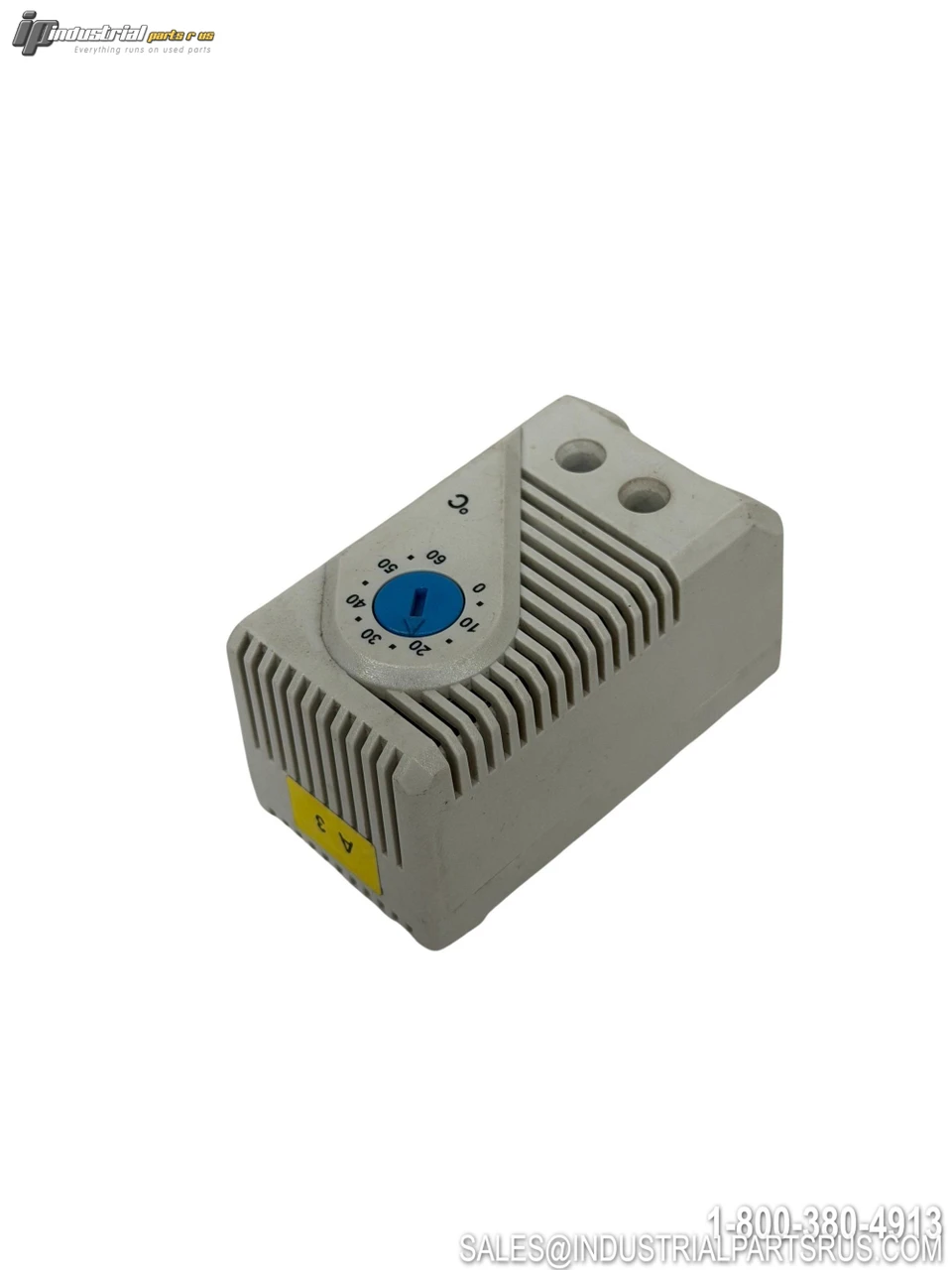

The Pfannenberg FLZ 530 is a compact bimetal thermostat designed for temperature control inside electrical control cabinets. Featuring a normally open (N.O.) spring contact, it is used in combination with control cabinet heaters and Filterfans® to regulate internal cabinet temperature and reduce energy consumption. The unit mounts directly or snaps onto a standard DIN rail without tools using the included snap fastener, and is UL Recognized to NITW2 and NITW8 standards for easy integration into UL 508A panels.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Pfannenberg |
| Model / Part Number | FLZ 530 |
| Article Number (°C) | 17121000000 |
| Article Number (°F) | 17121000010 |
| Type | Temperature Controller / Thermostat |
| Contact Type | N.O. (Normally Open) with Spring Contact — Form A |
| Temperature Range | 0°C to +60°C (32°F to 140°F) |
| Switching Point Tolerance | ±4 K |
| Switching Temperature Difference | <7 K |
| Max Switching Voltage (AC, resistive) | 100–250V AC / 5A (resistive); 120V AC / 15A (resistive) |
| Max Switching Current (inductive, cos φ=0.6) | 2A |
| Max Switching Power (DC) | 30W |
| Rated Voltage | 100–250V AC (120–240VAC) |
| Rated Current | 10A |
| Probe Type | Bimetal |
| Operating Temperature Range | -20°C to +80°C (-4°F to +179°F) |
| IP Rating / System of Protection | IP20 |
| Housing Material | ABS High Temperature Plastic |
| Dimensions (L x W x H) | 40mm x 36mm x 72mm |
| Weight | 50g |
| Mounting Type | DIN Rail or Direct Mount (tool-free snap fastener) |
| Temperature Scale | Dual scale: °C and °F (universal dial) |
| UL Recognition | NITW2 and NITW8 (UL 508A Compatible) |
| Compatible Accessories | Hygrostat (17207000000), Internal Enclosure Fan (18110000000) |
| Series | FLZ 510–530 |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686185
Full Load Amps 5A (250VAC); 15A (120VAC)
Manufacturer Pfannenberg
Enclosure Type IP20
Part Number FLZ 530
Shelf F-10 Tub 1
Model FLZ 530
MPN FLZ 530
Type Temperature Controller
