Product Description

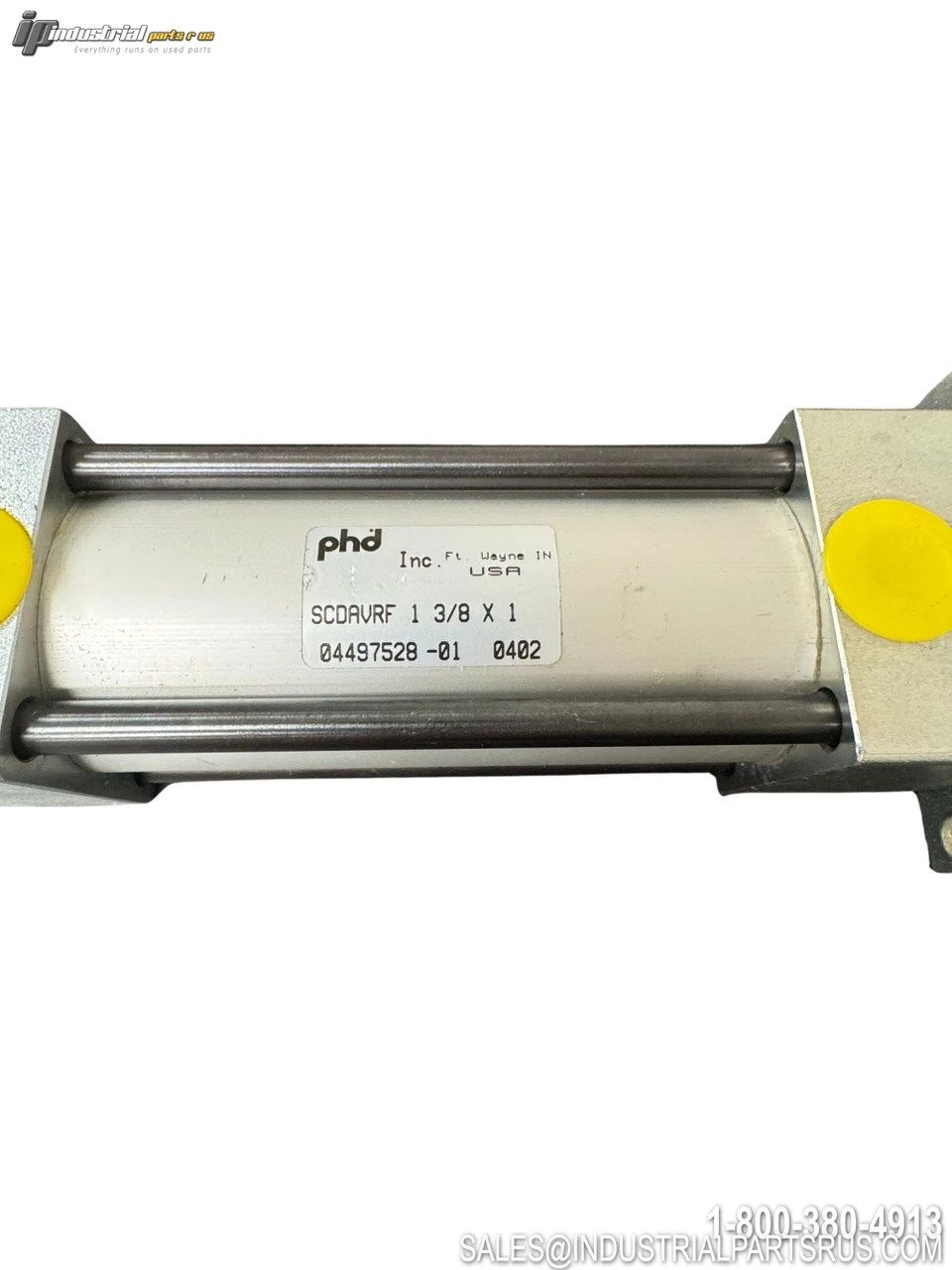

The PHD SCDAVRF-1-3/8x1 is a Tom Thumb® AV Series single-acting, spring-extend, double-rod-end tie-rod pneumatic cylinder designed to NFPA standards. With a 1-3/8" bore and 1" stroke, this cylinder features a spring that extends the rod (cap-end spring), and the double-rod configuration passes through both head and cap ends. It mounts via tapped holes on the front face of the head (rod mount style) and is rated for up to 150 psi air pressure. PHD's AV Series cylinders offer long service life, field repairability, and a wide range of compatible accessories and switch options.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | PHD |
| Model / Part Number | SCDAVRF-1-3/8x1 |
| Series | AV Series (Tom Thumb®) |
| Product Type | Pneumatic Cylinder |
| Cylinder Action | Single-Acting, Spring Extend (Cap-End Spring) |
| Rod Configuration | Double Rod End |
| Bore Diameter | 1-3/8" (1.375") |
| Stroke Length | 1" |
| Maximum Operating Pressure | 150 PSI (10 bar) Air |
| Minimum Operating Pressure | 20 PSI (1.4 bar) Air |
| Port Size | 1/8" NPT |
| Standard Rod Diameter | 1/2" |
| Mounting Style | Rod Mount — Tapped Holes on Front Face of Head (RF) |
| Body Material | Anodized Aluminum |
| Operating Temperature | -20°F to +180°F (-29°C to +82°C) |
| Max Force @ 150 PSI | ~223 lb (991 N) extend |
| Stroke Tolerance | ±0.032" |
| Lubrication | Permanently Lubricated (Non-lubricated or lubricated air compatible) |
| Standards | NFPA |
| Maintenance | Field Repairable |
| Media | Compressed Air |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer Phd
Part Number SCDAVRF-1-3/8X1
Shelf B-6
Bore Diameter 1-3/8 in
Model SCDAVRF-1-3/8X1
MPN SCDAVRF-1-3/8X1
Type Pneumatic Cylinder
