Product Description

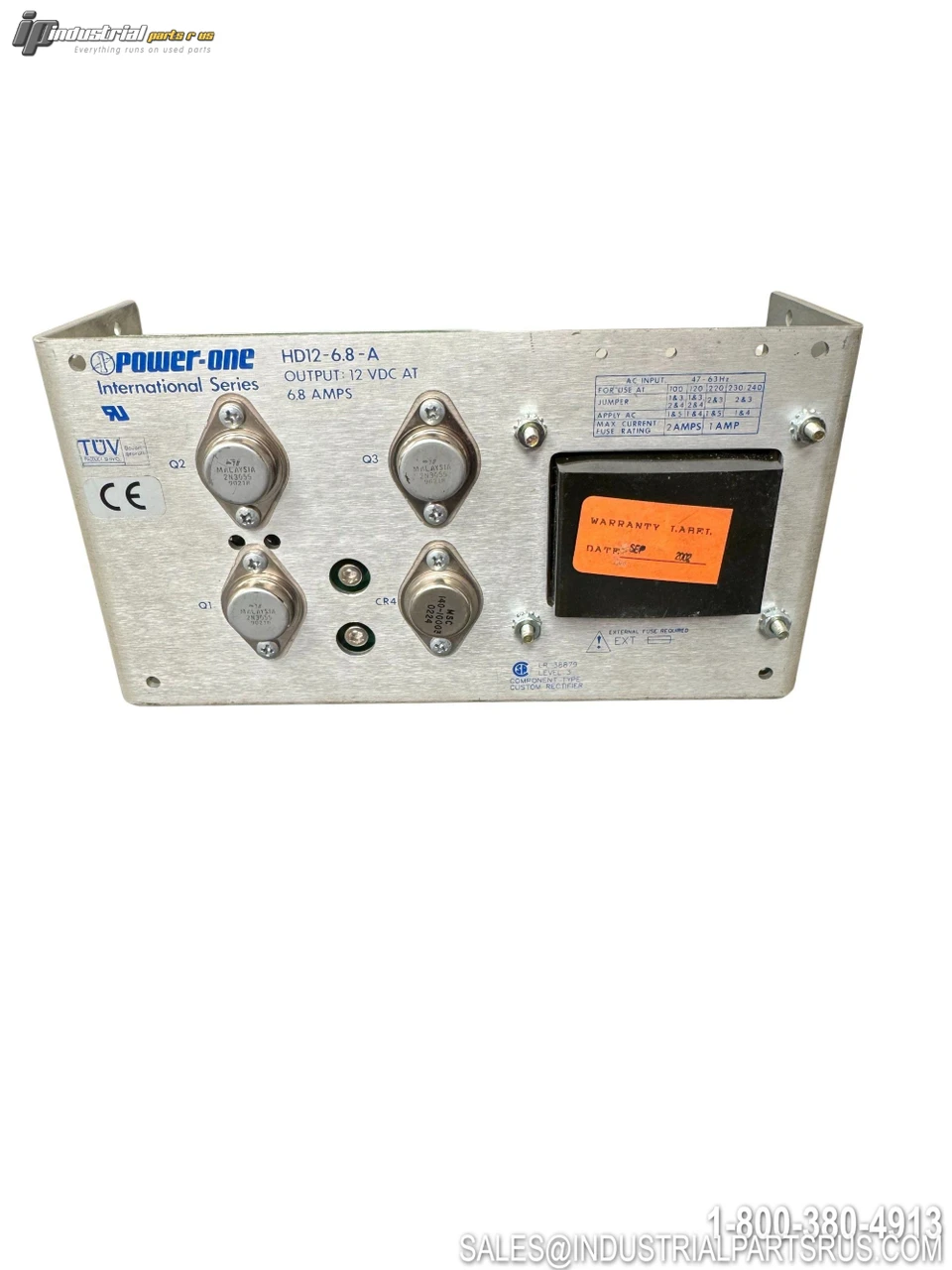

The Power-One HD12-6.8A is a single-output linear AC-DC power supply from the International Series, delivering 12VDC at 6.8A (82W) in an open-frame, chassis-mount (Case D) package. It accepts worldwide AC input voltages (100/120/220/230/240 VAC) and features ±0.05% output regulation, remote sense, output inhibit, and parallel master/slave operation capability. Output connects via screw terminal/barrier strip. Approved to UL, CSA, TÜV, and CE standards with a 100% burn-in process and MTBF in excess of 300,000 hours.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Power-One |
| Model / Part Number | HD12-6.8A |
| Product Line / Series | International Series (HD Series) |
| Power Supply Type | Linear, Regulated, Open Frame |
| Input Voltage | 100 / 120 / 220 / 230 / 240 VAC (Universal) |
| Input Frequency | 47 – 440 Hz |
| Output Voltage | 12 VDC (Adjustable ±5%) |
| Output Current (Max) | 6.8 A |
| Output Power | 82 W |
| Number of Outputs | 1 |
| Output Regulation | ±0.05% |
| Efficiency | 55% (typical, 12V output) |
| Case / Package | Case D – Open Frame |
| Mounting Type | Chassis Mount / Panel Mount |
| Dimensions (L x W x H) | 9.00" x 4.88" x 2.75" (228.6mm x 124.0mm x 69.9mm) |
| Remote Sense | Yes |
| Output Inhibit | Yes |
| Parallel Operation | Yes – Master/Slave Capability |
| Output Voltage Adjustment | ±5% via onboard Vadj potentiometer |
| MTBF | >300,000 Hours |
| Burn-In | 100% Factory Burn-In |
| Operating Temperature | 0°C to 70°C (with derating) |
| Approvals / Certifications | UL, CSA, TÜV, CE (Low Voltage Directive) |
| RoHS | Compatible (6 substances) |
| Applications | ITE (Commercial / Industrial) |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer Power-One
Part Number HD12-6.8A
Shelf F-11
Model HD12-6.8A
MPN HD12-6.8A
Type DC Power Supply
