Product Description

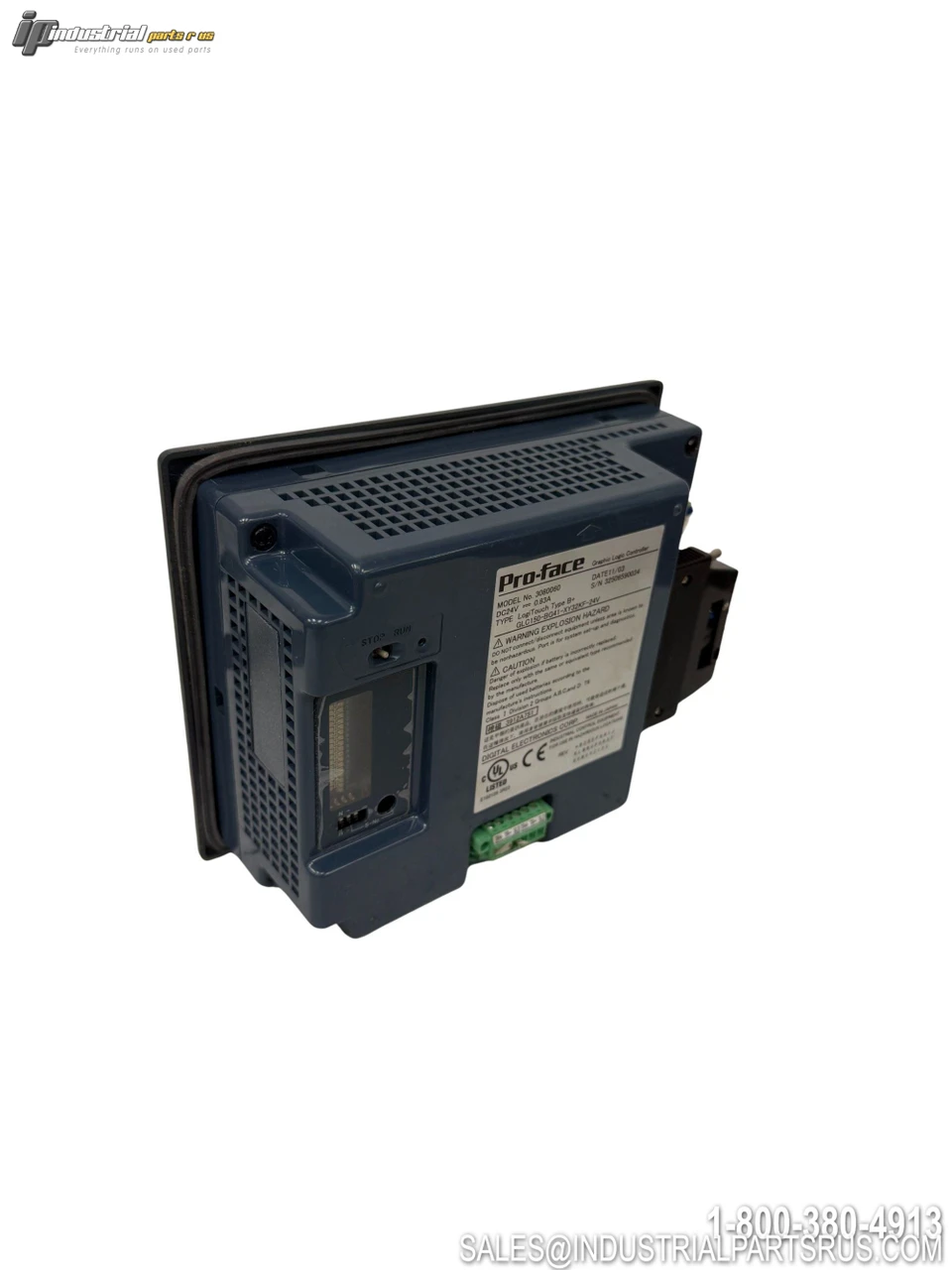

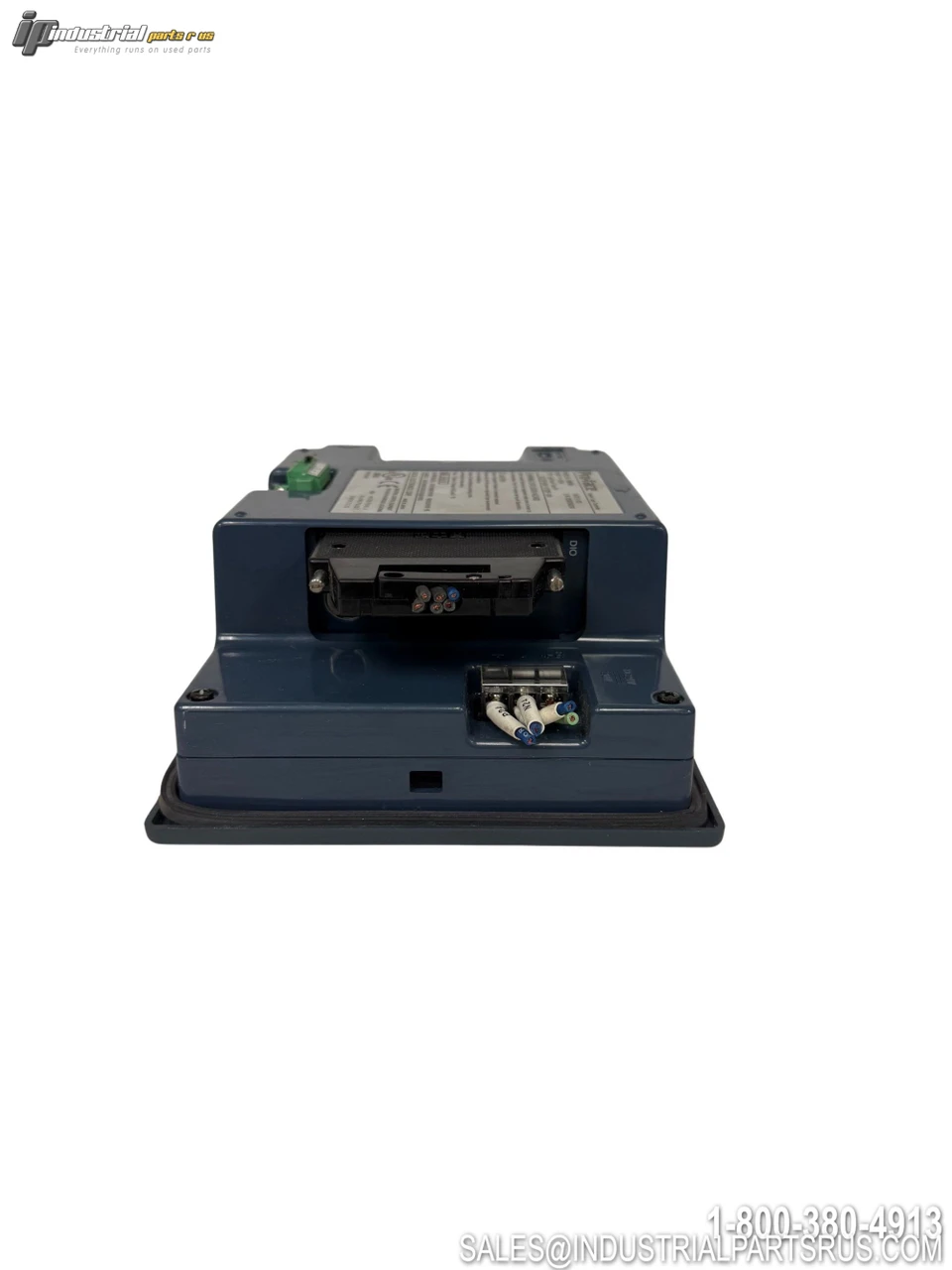

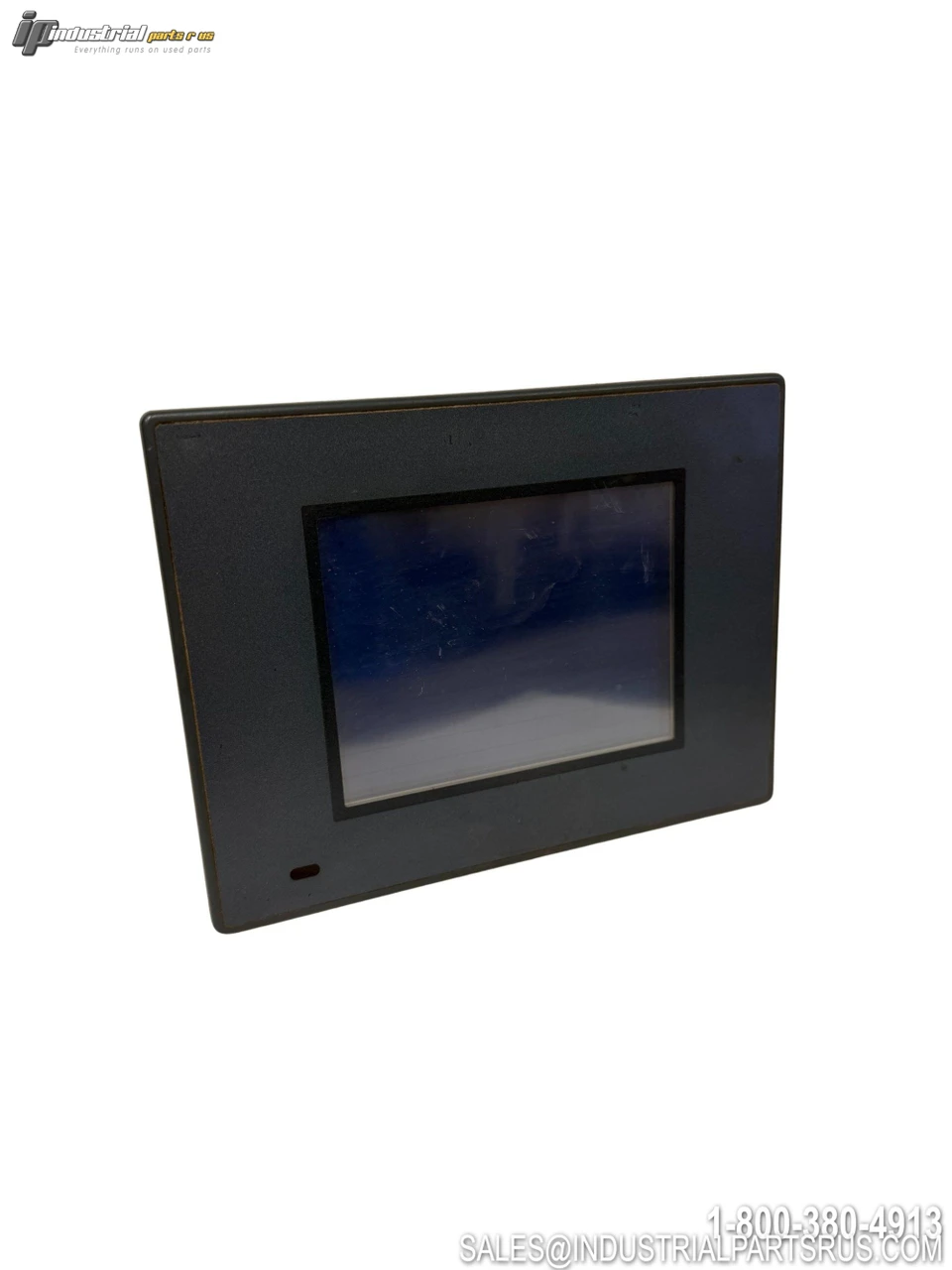

The Pro-Face 3080060 (catalog number GLC150-BG41-XY32KF-24V) is a Type B+ LT LogiTouch Series integrated graphic logic controller and HMI. It combines a 5.7-inch monochrome blue-and-white LCD touchscreen with onboard 32-point discrete I/O (16 sink/source inputs, 16 sink outputs) and a Flex Network port for distributed I/O expansion. The unit operates on 24VDC and is designed for factory-floor machine control and operator interface applications.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Pro-Face |
| Model / Part Number | 3080060 |
| Catalog Number | GLC150-BG41-XY32KF-24V |
| Global Code | PFXGLC150BDBP |
| Series | LT LogiTouch Series |
| Controller Type | Type B+ Graphic Logic Controller |
| Display Size | 5.7 inch |
| Display Type | Monochrome STN LCD (Blue Mode) |
| Resolution | 320 x 240 pixels |
| Backlight Type | CCFL (CFL, lifespan: 36,000+ hours continuous) |
| Input Voltage (Rated) | 24VDC |
| Allowable Voltage Range | DC 20.4V to DC 28.8V |
| Power Consumption | 20W or less |
| In-Rush Current | 30A or less |
| Input Points | 16 (Sink/Source) |
| Output Points | 16 (Sink Transistor) |
| Total I/O Points | 32 Points |
| I/O Connector | 20-pin (A and B column configuration) |
| Communication / Network Port | Flex Network (FN) Port, 6-pin |
| Memory | 1 MB Flash EPROM (128KB program / 32KB variable) |
| Touch Panel Type | Resistive Touch Screen |
| Dimensions (W x H x D) | 8.15 in x 6.18 in x 2.98 in (approx. 207 x 157 x 76 mm) |
| Insulation Resistance | Above 20 MΩ at DC 500V (between charging and FG terminals) |
| Voltage Endurance | AC 1000V at 10mA for 1 minute |
| Sales Status | End of Sales (2013-09-30) |
| Recommended Replacement | AGP3300-T1-D24-FN1M (GP3000 Series) |
