Product Description

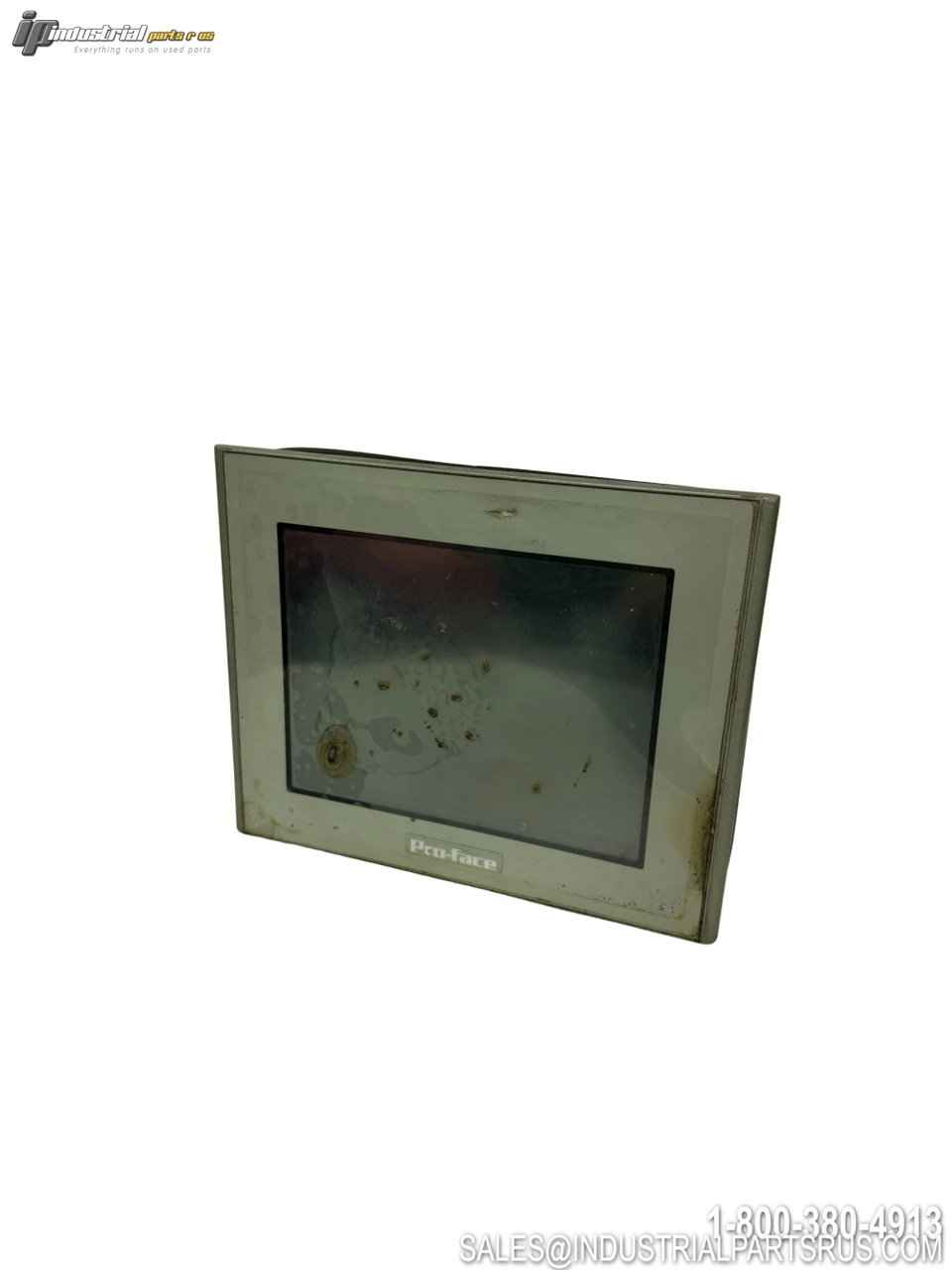

The Pro-Face 2980070-04, catalog number GP2301-LG41-24V (global code PFXGP2301LD), is a 5.7-inch monochrome LCD graphic operator interface (HMI touch panel) belonging to the GP2000 Series. It features a resistive analog touchscreen with 320×240 pixel resolution, CCFL backlight, and communicates via RS-232C/RS-422 serial interface for direct connection to PLCs, temperature controllers, inverters, and other serial devices. This unit is powered by 24VDC, is UL/c-UL Listed and Class I Division 2 rated, and is compatible with Pro-face GP-PRO/PBIII C-Package HMI development software.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Pro-Face |
| Model / Part Number | 2980070-04 |
| Catalog Number | GP2301-LG41-24V |
| Global Code | PFXGP2301LD |
| Series | GP2000 |
| Product Type | Operator Interface / HMI Touch Panel |
| Screen Size | 5.7 inch |
| Display Type | Monochrome LCD |
| Display Colors | Black & White / 2 levels of gray |
| Resolution | 320 x 240 pixels (QVGA) |
| Backlight Type | CCFL |
| Backlight Service Life | 50,000 hours at 25°C (24-hr operation) |
| Brightness Adjustment | 4 levels |
| Input Voltage | 24 VDC |
| Input Current | 0.92 A |
| Application Memory | 1 MB Flash EPROM |
| Backup Memory | 128 KB SRAM |
| Serial Interface | RS-232C / RS-422 (asynchronous) |
| Data Transmission Speed | 2,400 – 115,200 bps |
| Data Length | 7 – 8 bits |
| Stop Bits | 1 or 2 bits |
| Optional Communication | DH+, Remote I/O, Modbus Slave (optional modules) |
| Font / Character Sizes | 8x8, 8x16, 16x16, 32x32 dot fonts |
| Programming Software | GP-PRO/PBIII C-Package (GP-PRO 03) |
| UL Model Number | 2980070-04 |
| End of Sales | 2013/09/30 (Discontinued) |
| End of Repair | 2019/12/27 |
| Weight | ~2.03 lbs (0.92 kg) |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer Pro-face
Part Number 2980070-04
Controller Platform GP-PRO/PBIII C-Package (GP-PRO 03)
Shelf D-15
Model 2980070-04
MPN 2980070-04
Type Touch Panel
