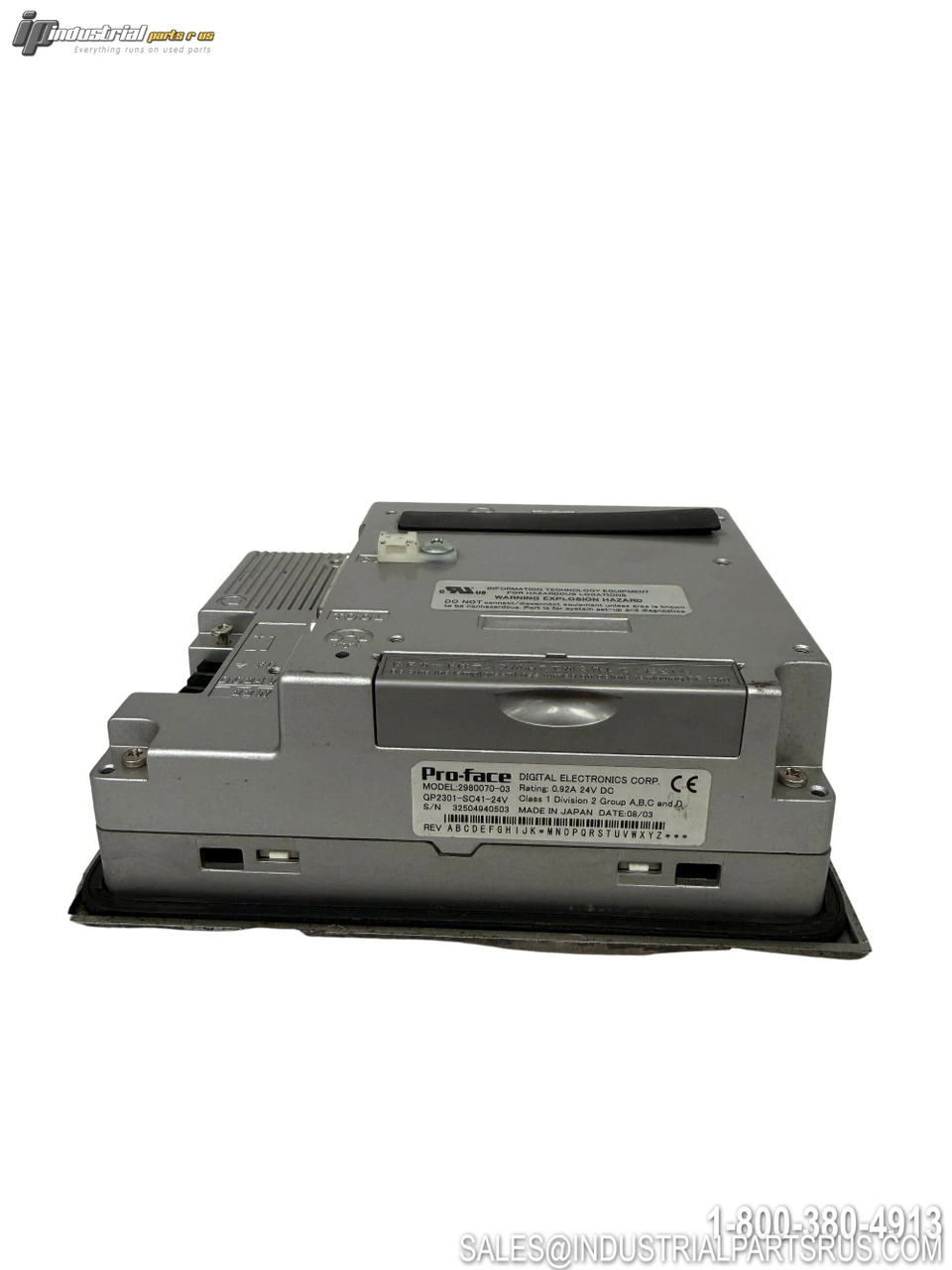

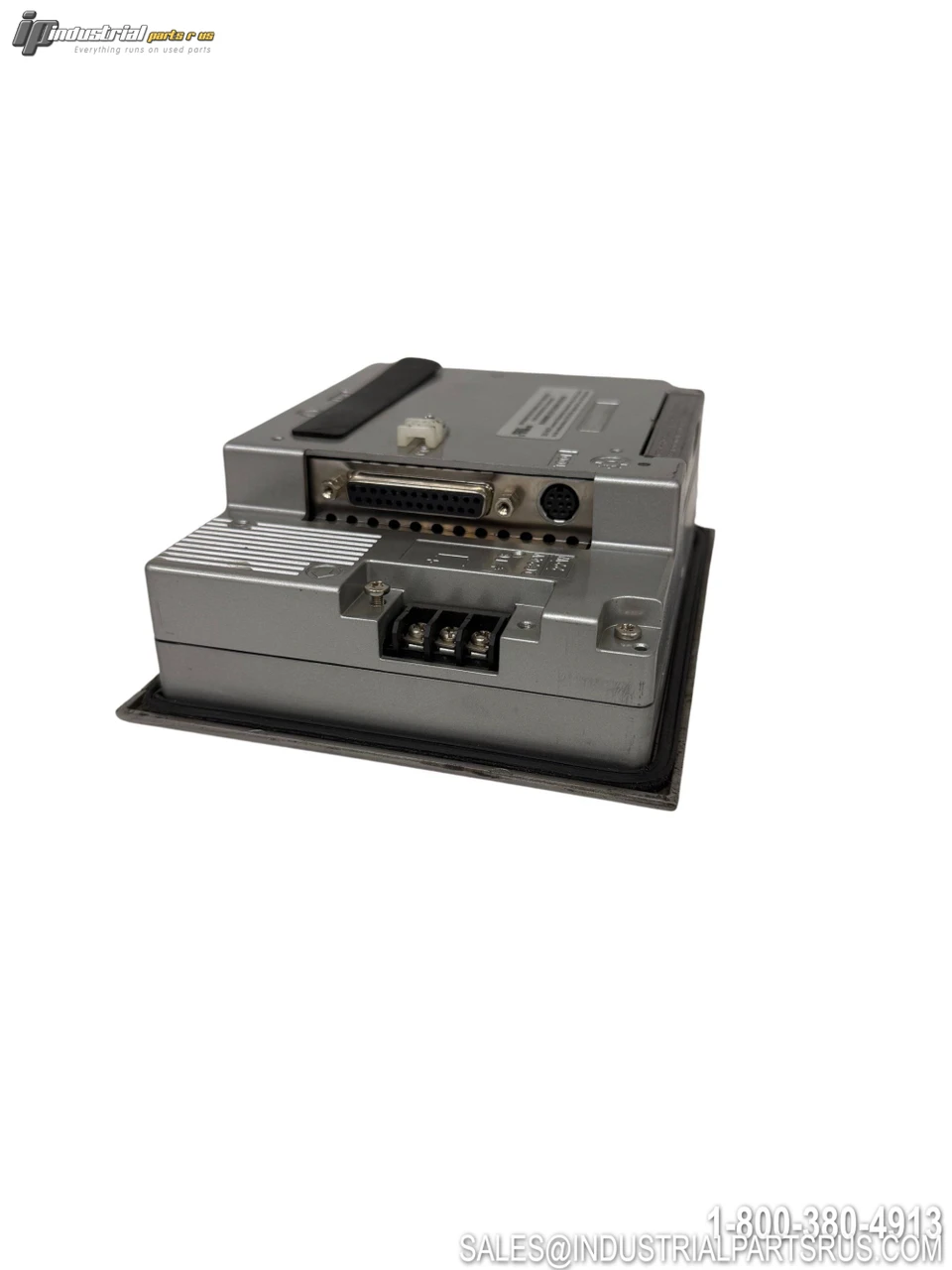

Product Description
The Pro-Face GP2301-SC41-24V is an industrial Human-Machine Interface (HMI) touch panel from the GP2000 Series, designed for panel-mount operator interface applications. It features a 5.7-inch STN color LCD with 320×240 pixel resolution capable of displaying up to 64 colors, powered by 24VDC. This unit includes an RS-232C/RS-422 configurable serial interface (25-pin D-sub), a secondary RS-232C tool/programming connector (8-pin mini-DIN), and a CompactFlash card slot for data storage and program transfer.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Pro-Face |
| Model / Part Number | GP2301-SC41-24V |
| UL Registration Model | 2980070-03 |
| Global Code | PFXGP2301SD |
| Product Series | GP2000 Series |
| Product Type | HMI Touch Panel (Operator Interface) |
| Display Type | STN Color LCD |
| Screen Size | 5.7 inch |
| Resolution | 320 × 240 pixels (QVGA) |
| Display Colors | 64 colors with 3-speed blink |
| Effective Display Area | 115.2 mm (W) × 86.4 mm (H) |
| Backlight | CCFL, 4 adjustable brightness levels |
| Contrast Adjustment | 8 levels |
| Input Voltage | 24VDC |
| Rated Voltage Range | 19.2VDC to 28.8VDC |
| Rated Current | 0.92A |
| Power Consumption | 22W or less |
| Inrush Current | 30A or less |
| Allowable Voltage Drop | 10ms or less |
| Voltage Endurance | AC 1,000V 20mA for 1 minute (between charging and FG terminals) |
| Insulation Resistance | 20 MΩ or higher at DC 500V (between charging and FG terminals) |
| Application Memory | 1 MB Flash FEPROM |
| Backup Memory | 128 KB SRAM (Lithium Battery backed) |
| Serial Interface (COM1) | RS-232C/RS-422 configurable, 25-pin D-sub, 2400–115,200 bps |
| Tool / Programming Port | RS-232C, 8-pin mini-DIN, 2400–38,400 bps |
| CF Card Interface | 1 slot (CompactFlash) |
| Network / Ethernet Interface | Not available (no built-in Ethernet on -01 variant) |
| Expansion Interface | Not available on this model |
| Touch Panel Type | Analog resistive matrix |
| External Dimensions | 171 mm (W) × 138 mm (H) × 60 mm (D) |
| Weight | 1.2 kg or less |
| Operating Temperature | 0°C to +50°C |
| Backup Battery Type | Lithium Battery |
| Certifications | UL, CE (EN55011 Class A, EN61000-6-2), Class 1 Division 2 Groups A,B,C,D |
| End of Sales | 2013/09/30 (Discontinued) |
| Software | GP-PRO/PBIII C-Package (for Windows) |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Full Load Amps 0.92A
Manufacturer Pro-face
Part Number GP2301-SC41-24V
Shelf D-15
Model 2980070-03
MPN GP2301-SC41-24V
Type Touch Panel
