Product Description

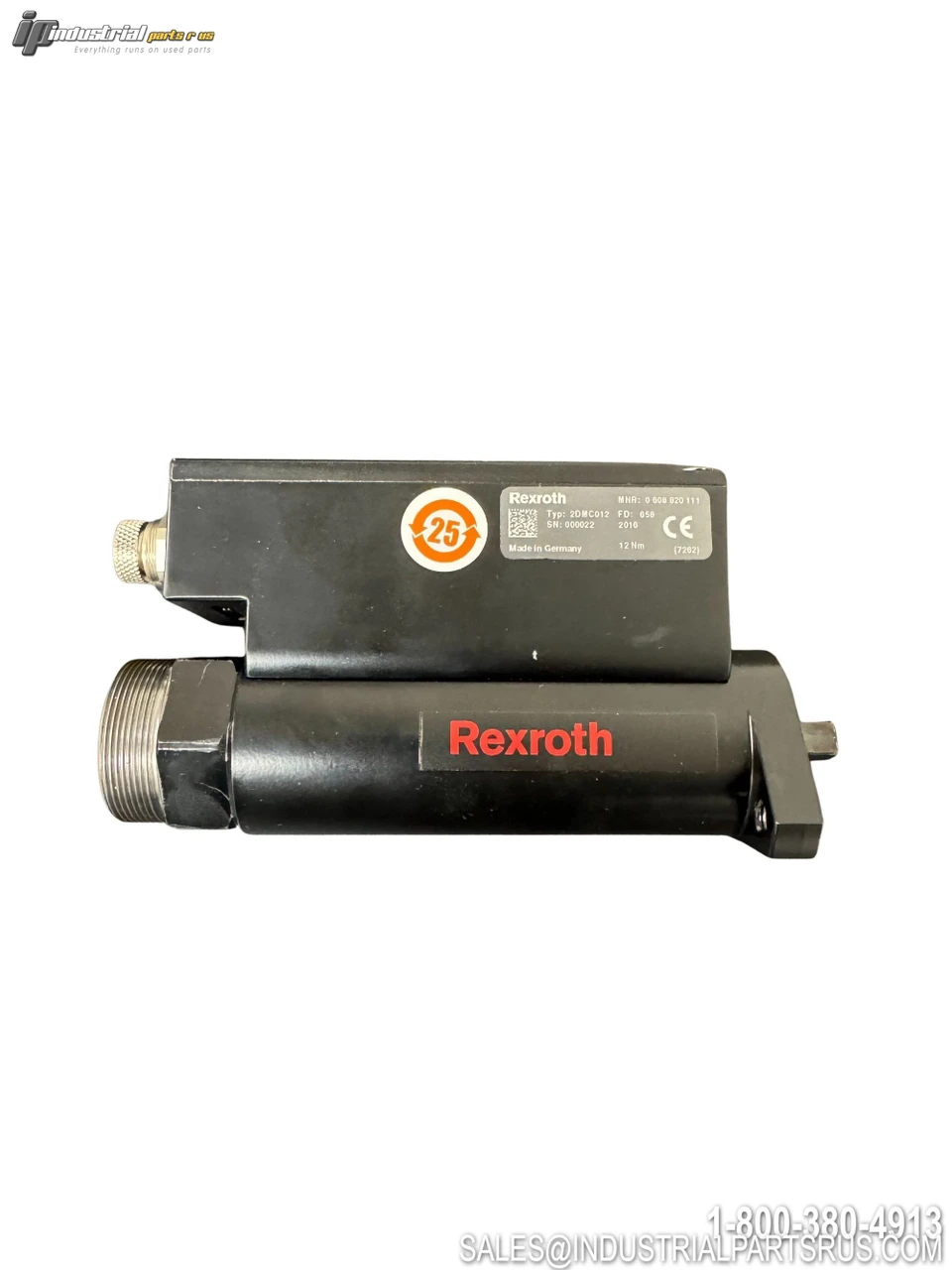

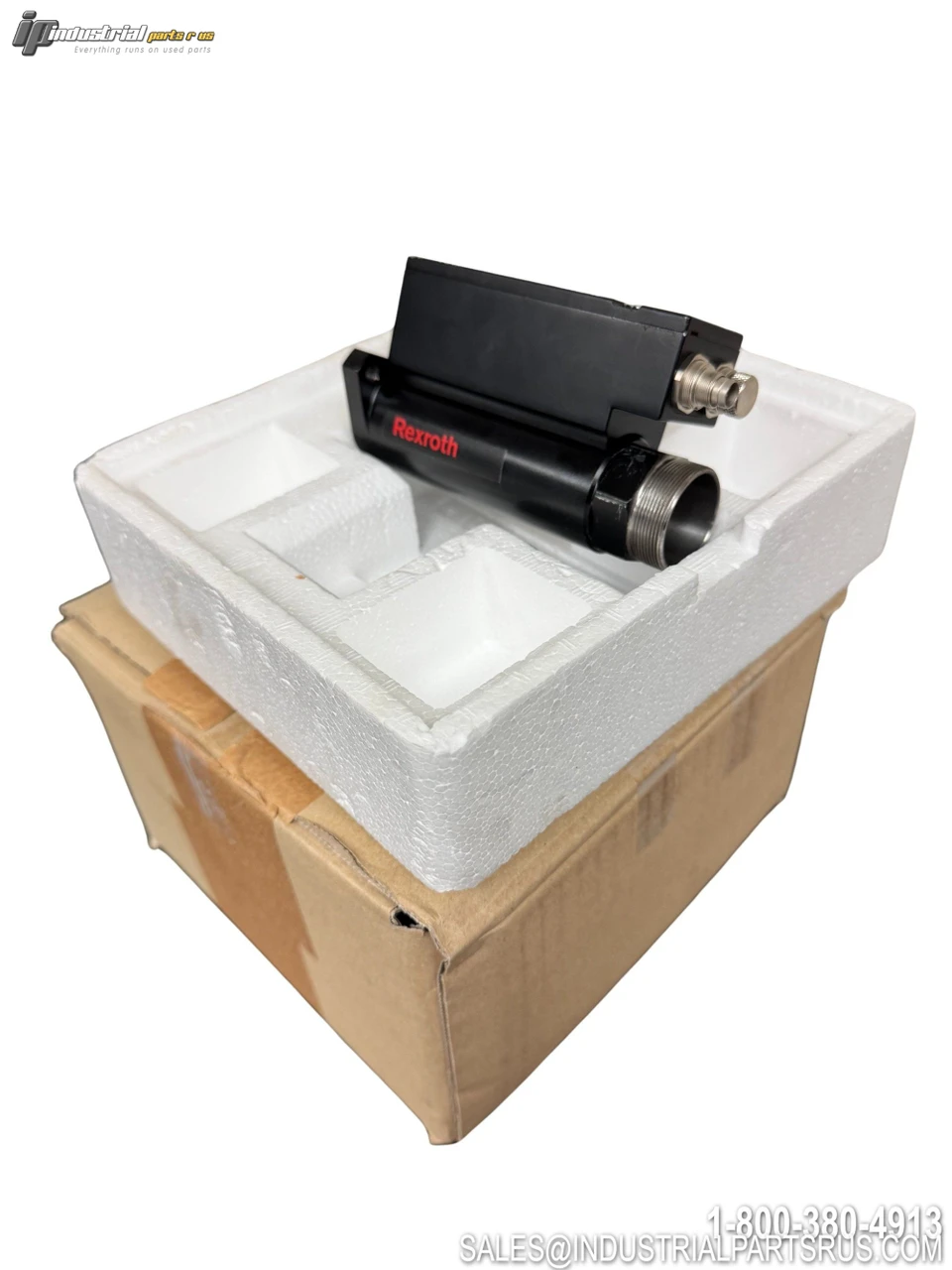

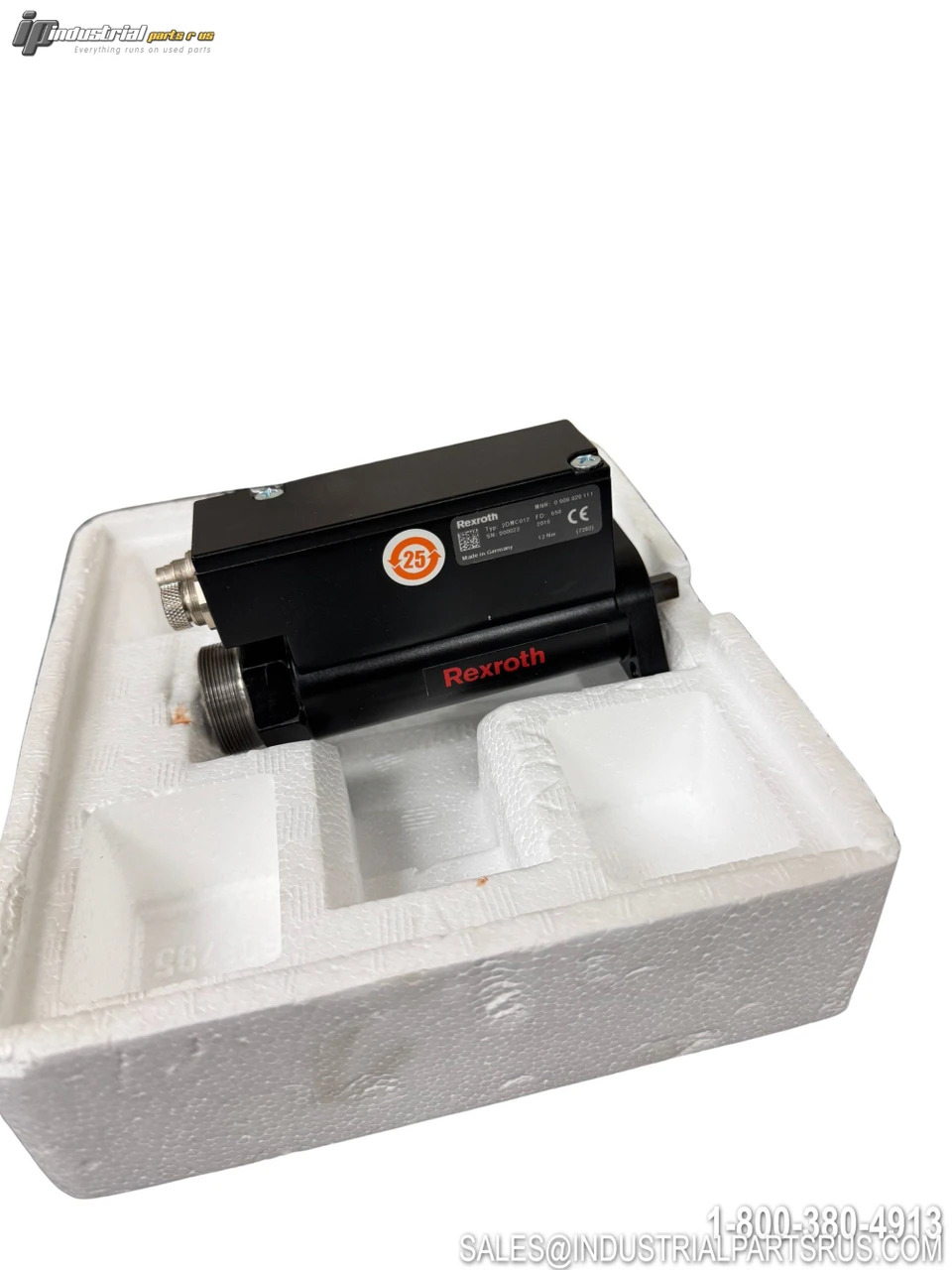

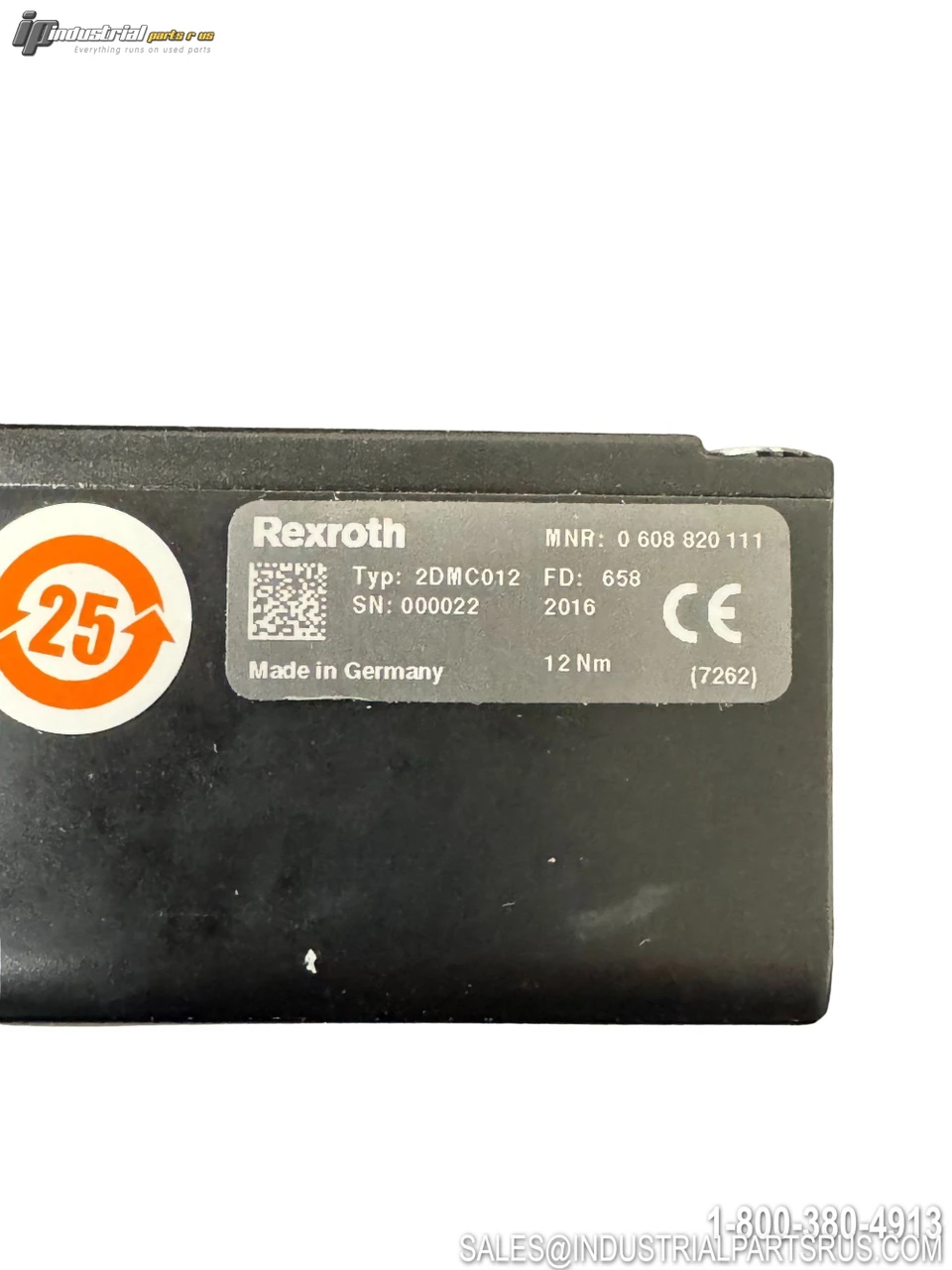

The Bosch Rexroth 0608820111 is a measurement transducer with type code 2DMC012 SZ2, part of the Rexroth Tightening System 350 series. It is a non-contact, maintenance-free sensor engineered for integration into electric tightening spindles to provide reliable, direct analysis of torque and angle of turn. The transducer supports redundant configuration by pairing with an identical unit via a 2A or 4AR adapter, enhancing system safety and measurement confidence in precision automated assembly applications.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Bosch Rexroth |
| Model / Part Number | 0608820111 |
| Type Code | 2DMC012 |
| Size | SZ2 (Size 2) |
| Product Series | Rexroth Tightening System 350 |
| Product Category | Tightening Spindles — Measurement Transducer |
| Nominal Torque | 12 Nm |
| Reduction Ratio | 1 (1:1) |
| Average Efficiency | 1 (100%) |
| Installation Length | 118.5 mm |
| Weight | 0.55 kg |
| Sensor Action | Non-contact |
| Measurement Parameters | Torque (T), Angle of Turn (A), Gradient |
| Measurement Transfer | Digital |
| Transducer Tracks | Twin-track |
| Direction Detection | Yes |
| Integrated Cycle Counter | Yes |
| Redundant Transducer Capable | Yes (via 2A / 4AR adapter) |
| Maintenance | Maintenance-free |
| EMC Resistance | Highest level of EMC interference resistance |
| Drive Connection | Spline (defined installation position) |
| Exchange Design | Fast exchange |
| Compatible Spindle System | Bosch Rexroth EC302 servo motor / 2GE19 / 2GE26 planetary gearbox |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Output Type Digital
Country/Region of Manufacture Germany
Manufacturer Rexroth
Part Number 0608820111
Shelf K-48
Model 0608820111
MPN 0608820111
Type Current Sensor
