Product Description
This listing is for the RECEIVER ONLY. The emitter is NOT included.

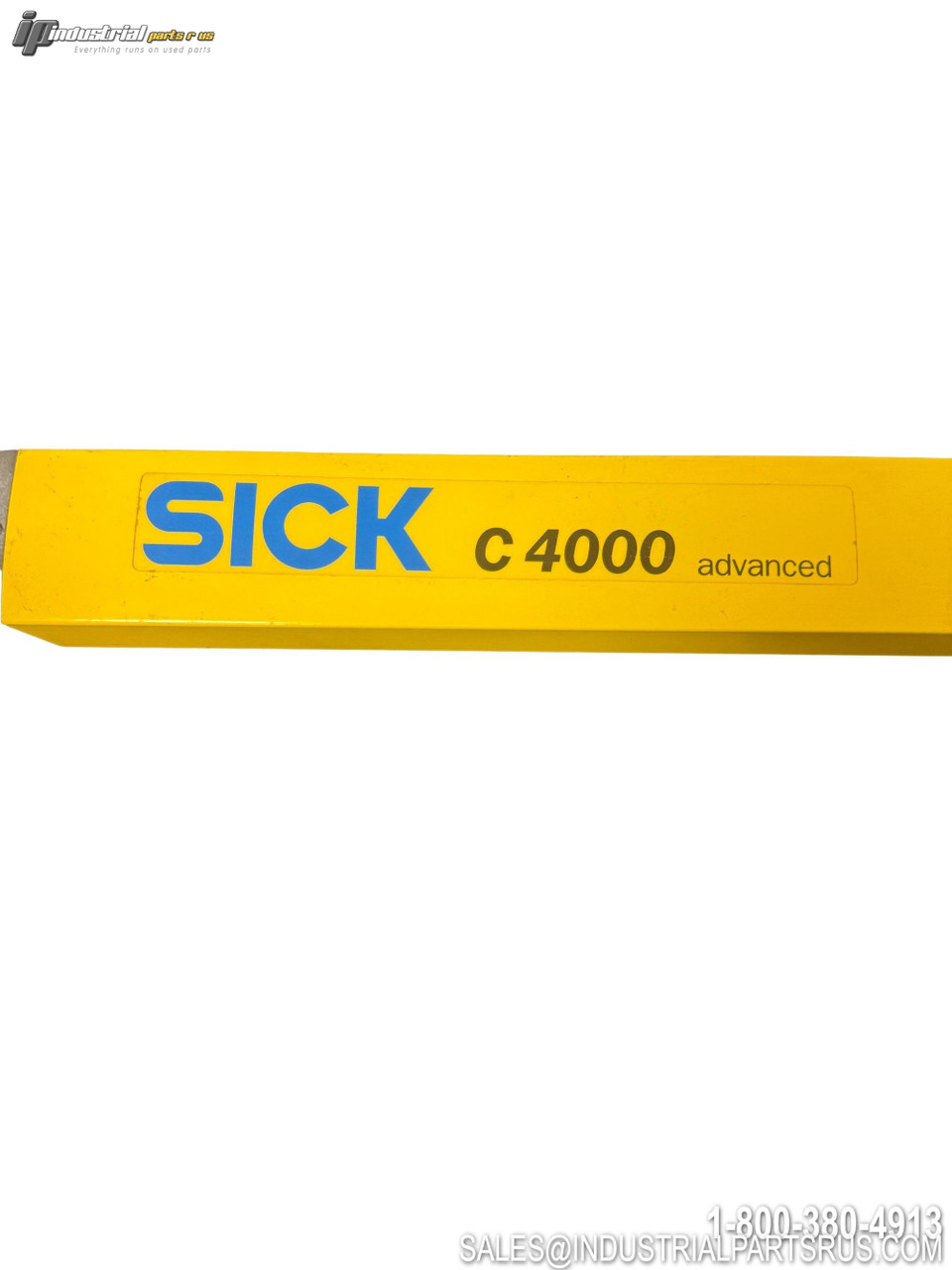

The Sick C40E-0702CB010 is a C4000 Advanced safety light curtain receiver designed for industrial safety applications to protect against access into hazardous points and areas. This model features a 750mm protective field height with 20mm resolution for finger and hand protection, offering Type 4 safety performance with SIL 3 and Category 4 PL e rating.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Sick |
| Model/Part Number | C40E-0702CB010 |
| SICK ID Number | 1018795 |
| Series | C4000 Advanced |
| System Part | Receiver |
| Protection Field Height | 750mm |
| Resolution | 20mm |
| Scanning Range | 21m |
| Response Time | 14ms (without beam coding, blanking, cascade) |
| Safety Type | Type 4 (IEC 61496-1) |
| Safety Integrity Level | SIL 3 (IEC 61508) |
| Safety Category | Category 4 (EN ISO 13849) |
| Performance Level | PL e (EN ISO 13849) |
| Synchronization | Optical Synchronization |
| Connection Type | M8, 4-pin female connector |
| Status Display | 7-segment display |
| Conductor Cross Section | 0.75 mm² |
| Allowed Cable Length | 50m (dependent on load, power supply, conductor cross section) |
| Configuration | PC with CDS (Configuration and Diagnostic Software) |
| Application Environment | Standard Industrial Environment |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686208
Manufacturer SICK
Part Number C40E-0702CB010
Shelf LC Bin
Model C40E-0702CB010
MPN C40E-0702CB010
Type Safety Light Curtain
