Product Description

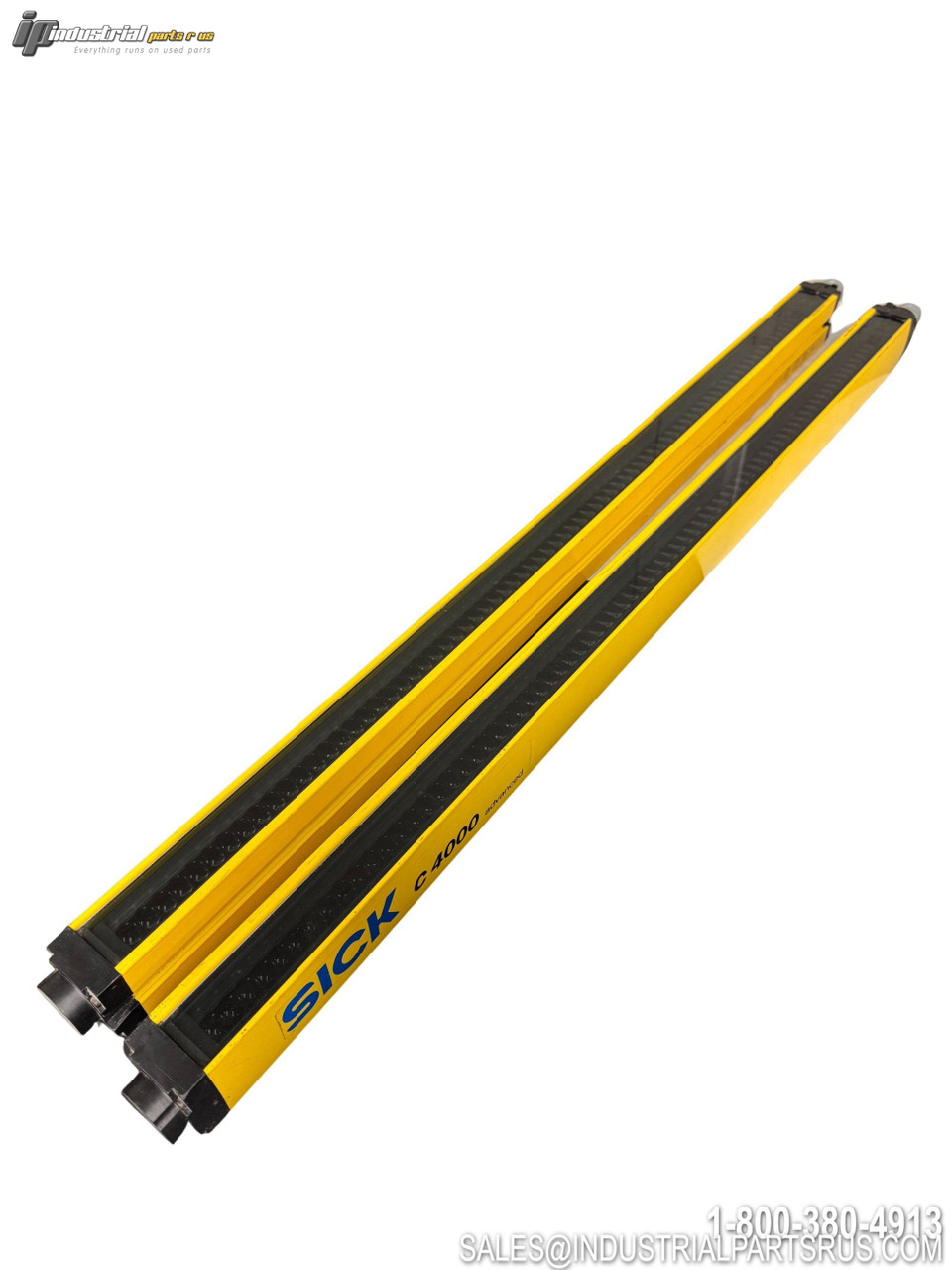

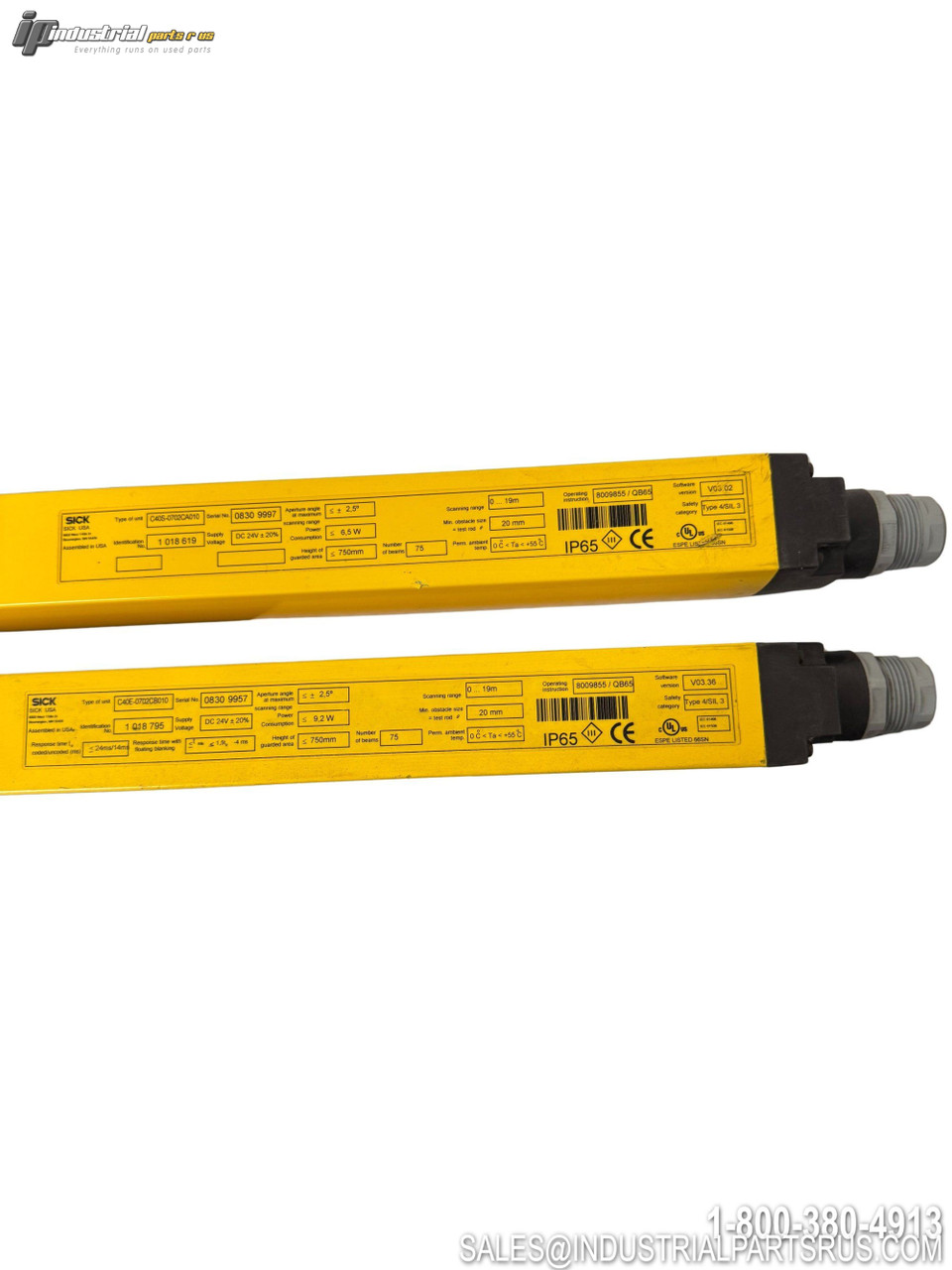

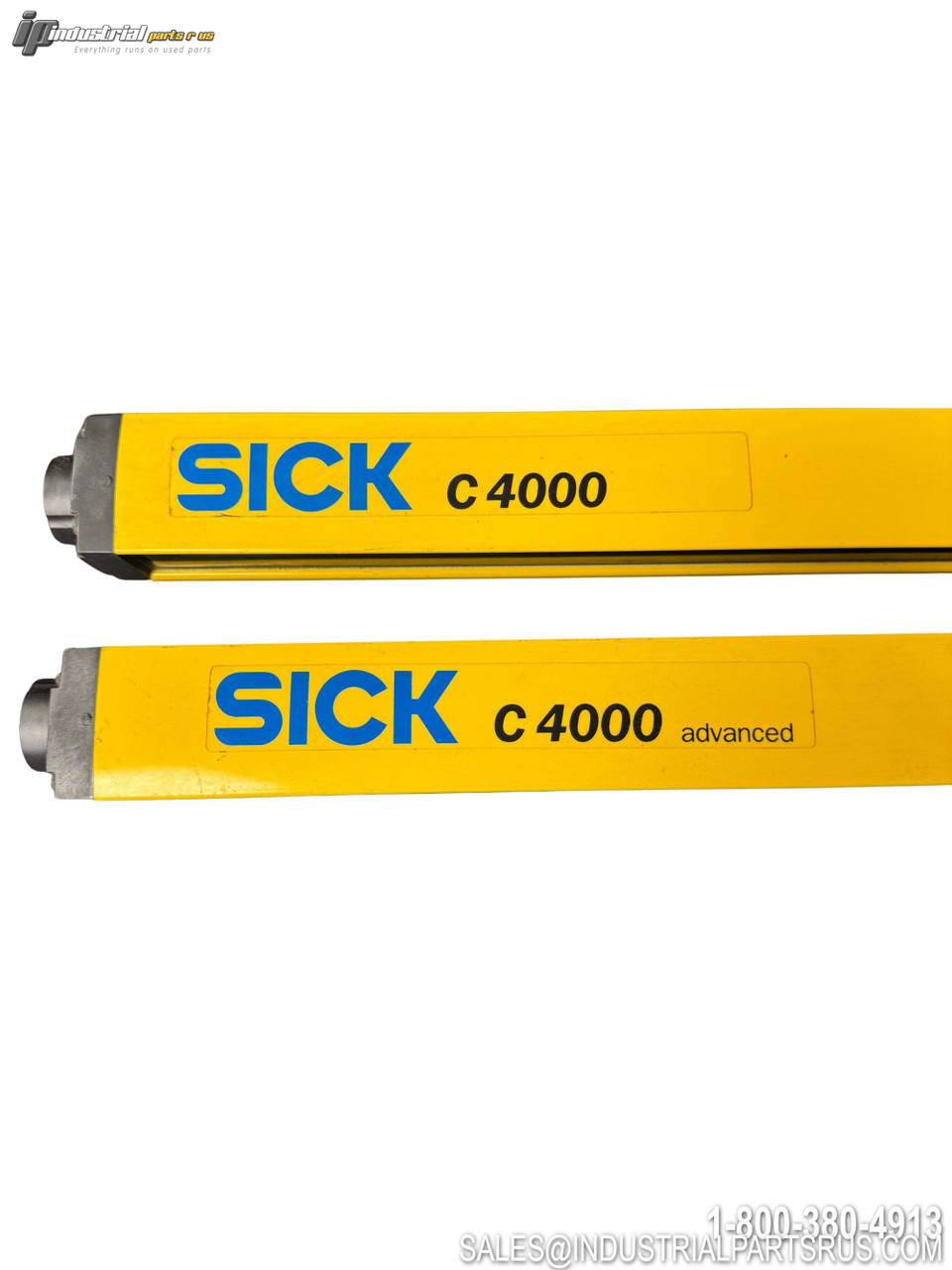

This listing includes the COMPLETE SET with both emitter and receiver units.
The Sick C40S-0702CA010 is the sender unit of the C4000 Advanced safety light curtain system, providing reliable electro-sensitive protective equipment (ESPE) for hazardous point and area guarding. It features a 750 mm protective field height, 20 mm resolution, and a maximum scanning range of 21 m, operating at 24 V DC. This unit pairs with a compatible C4000 Advanced receiver (e.g., C40E-0702CB010) and supports advanced functions including restart interlock (RES), external device monitoring (EDM), dynamic blanking, beam coding, cascading of up to three systems, and PC-based configuration via CDS software with a 7-segment display for alignment and diagnostics.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Sick |
| Model / Part Number | C40S-0702CA010 |
| SICK Part No. (Internal) | 1018619 |
| Product Series | C4000 Advanced |
| Product Type | Safety Light Curtain – Sender |
| System Part | Sender (C40S) |
| Resolution | 20 mm |
| Protective Field Height | 750 mm |
| Scanning Range (Typical) | 0 m to 21 m |
| Supply Voltage | 24 V DC (19.2 V – 28.8 V) |
| Protection Class | III (IEC 61140) |
| Output Type (OSSD) | 2 × PNP Semiconductor (OSSD1 + OSSD2) |
| Output Current | 500 mA (per OSSD) |
| Light Source | LED (Infrared) |
| System Connection | Hirschmann Male Connector M26, 12-pin |
| Configuration Connection | M8 Socket, 4-pin |
| Max. Cable Length | 50 m |
| Enclosure Rating | IP65 |
| Housing Material | Aluminum Alloy (AlMgSi 0.5) |
| Operating Temperature | 0 °C to +55 °C |
| Storage Temperature | -25 °C to +70 °C |
| Safety Type | Type 4 (IEC 61496-1 / IEC 61496-2) |
| Safety Integrity Level | SIL 3 (IEC 61508) |
| Performance Level | PL e (EN ISO 13849) |
| Safety Category | Category 4 (EN ISO 13849) |
| Display | 7-Segment Display |
| Functions | Restart Interlock (RES), External Device Monitoring (EDM), Dynamic Blanking, Beam Coding, Cascade (up to 3 systems), EFI, Bypass |
| Configuration | PC with CDS (Configuration and Diagnostic Software) |
| Mounting Style | Side Mounting (various adapters available) |
| Compatible Receiver | C40E-0702CB010 |
We warranty all items for 30 days from date of purchase.
