Product Description

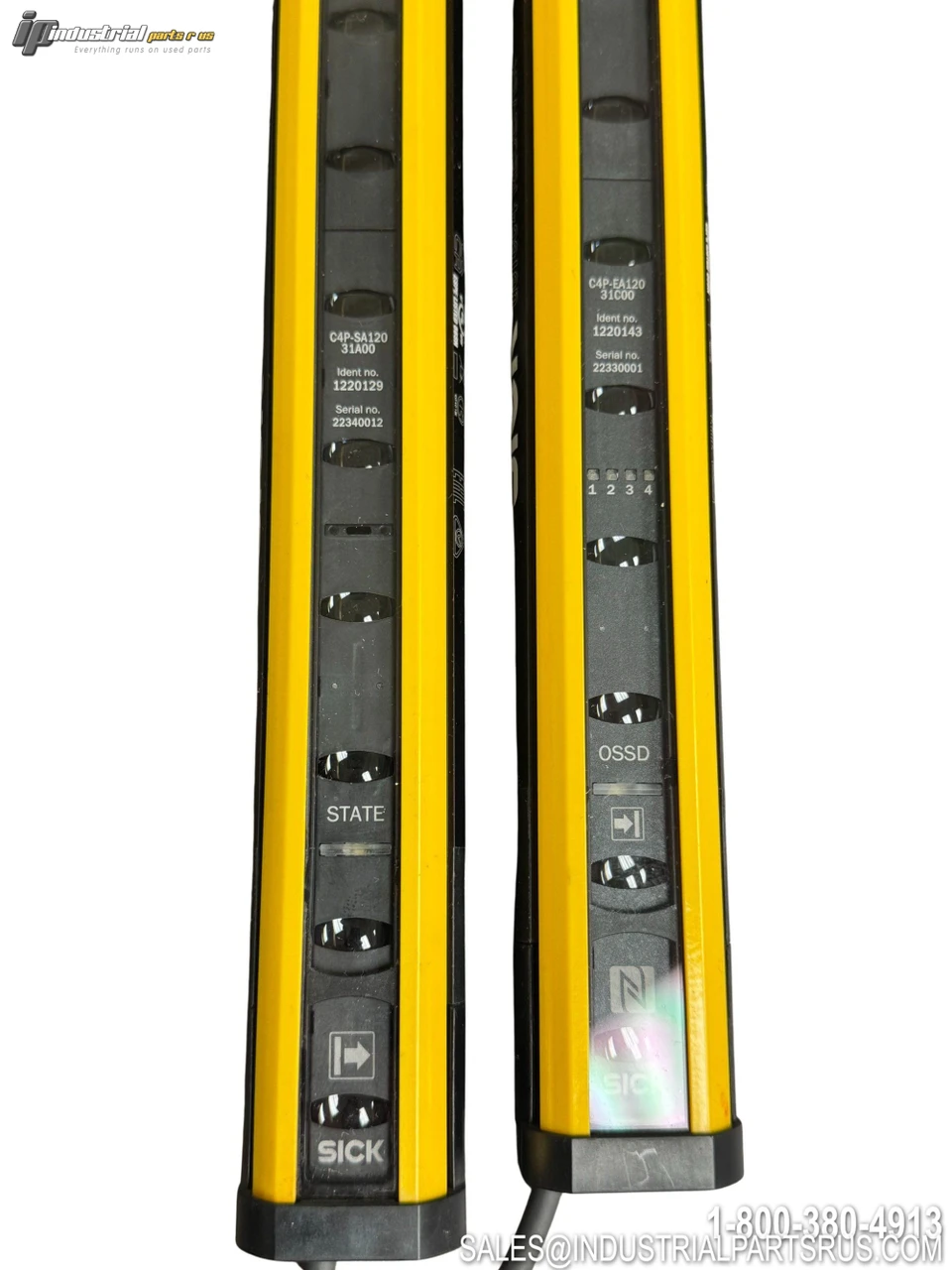

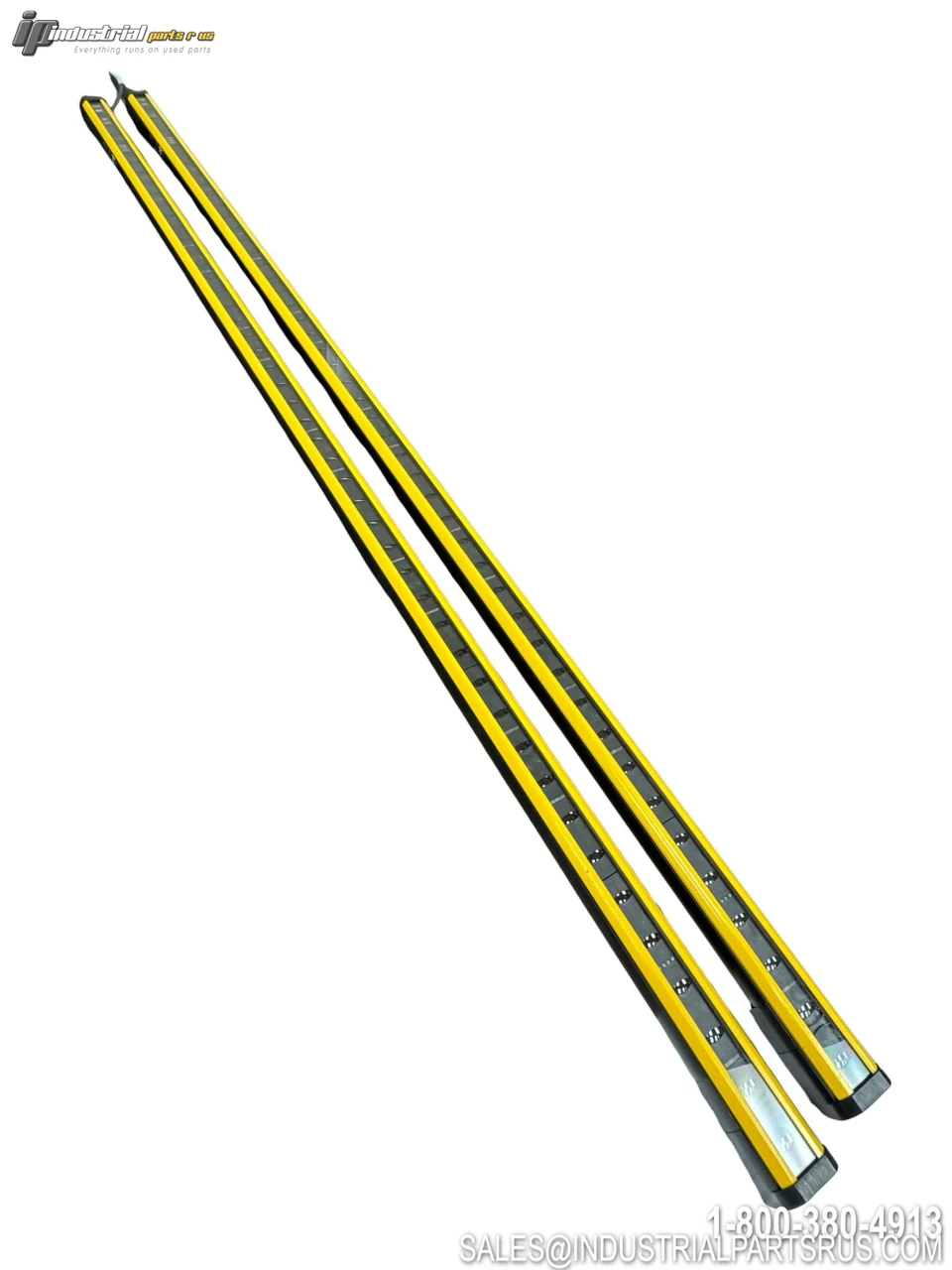

This listing includes the COMPLETE SET with both emitter and receiver units.

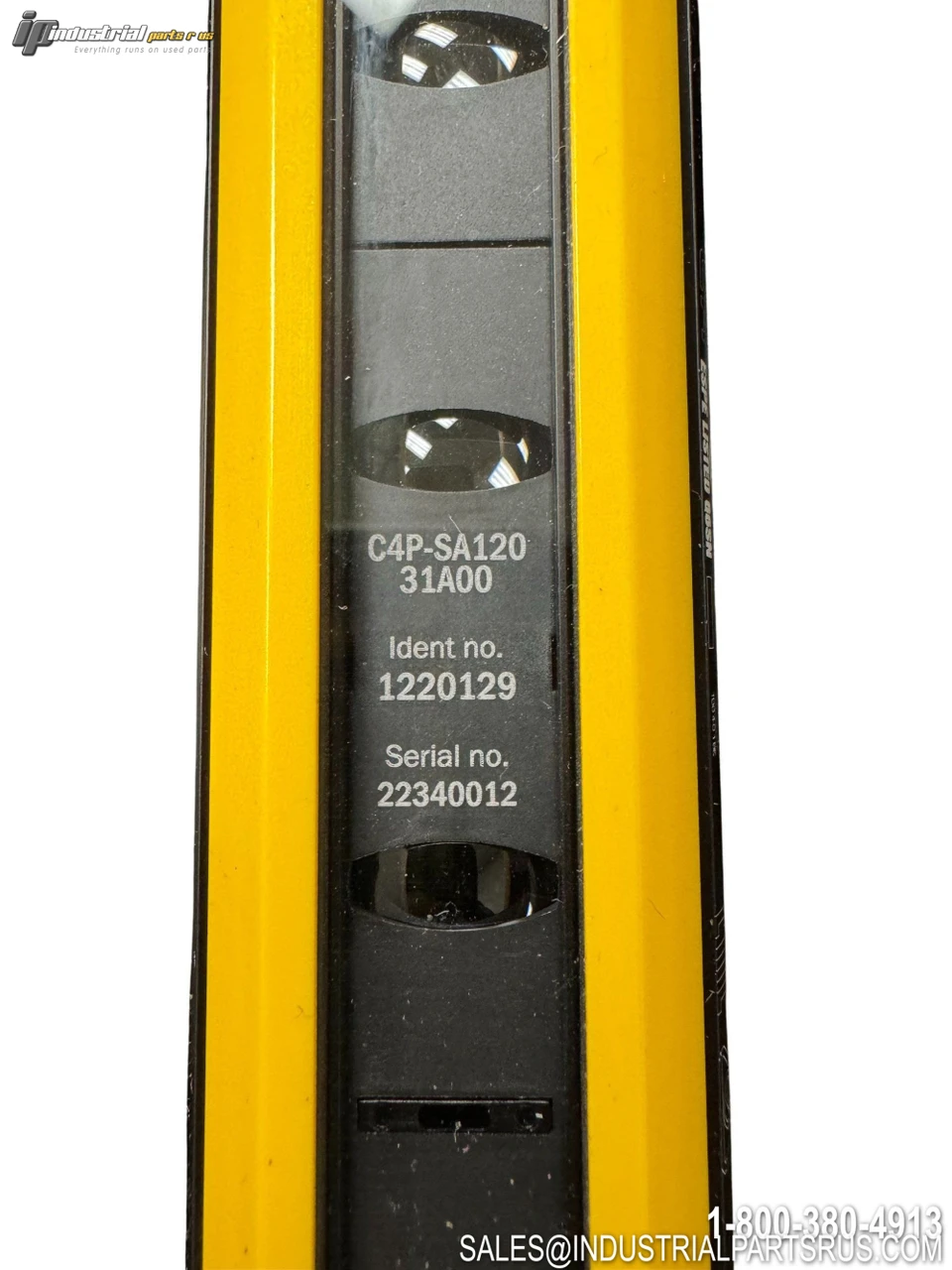

The Sick C4P-SA12031A00 is a deTec4 series safety light curtain sender designed for machine guarding in normal industrial environments. It delivers Type 4 (IEC 61496-1) safety performance with a 30 mm resolution (hand protection), 1,200 mm protective field height, and a 30-meter scanning range. The unit features optical synchronization, an integrated laser alignment aid, beam coding, cascading capability, and no blind zones, making it suitable for demanding safety applications requiring SIL 3 and Performance Level e.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Sick |
| Model / Part Number | C4P-SA12031A00 |
| Manufacturer Part Number (Alt) | 1220129 |
| Product Series | deTec4 |
| Product Type | Safety Light Curtain – Sender |
| System Part | Sender |
| Application | Normal industrial environment |
| Resolution | 30 mm (hand protection) |
| Protective Field Height | 1,200 mm |
| Scanning Range | 30 m |
| Response Time | 12 ms (Uncoded); 20 ms (Code 1 or Code 2) |
| Synchronization | Optical synchronization |
| Safety Type | Type 4 (IEC 61496-1) |
| Safety Integrity Level | SIL 3 (IEC 61508) / SILCL 3 (IEC 62061) |
| Category | Category 4 (ISO 13849-1) |
| Performance Level | PL e (ISO 13849-1) |
| PFH_D (Single Device) | 15.3 × 10⁻⁹ |
| PFH_D (Cascade with 1 Guest) | 30.5 × 10⁻⁹ |
| PFH_D (Cascade with 2 Guests) | 45.6 × 10⁻⁹ |
| Mission Time (T_M) | 20 years (ISO 13849-1) |
| Supply Voltage (V_S) | 24 V DC (19.2 V … 28.8 V) |
| Ripple | ≤ 10% |
| Power Consumption (Typical) | 1.68 W (DC) |
| Protection Class | III (IEC 61140) |
| Enclosure Rating | IP65 / IP67 (IEC 60529) |
| Ambient Operating Temperature | –30 °C … +55 °C |
| Housing Material | Aluminum extruded profile |
| Connection Type | M12 male connector, 5-pin or 8-pin (system plug required) |
| Extension Connection | Without extension or M12 female connector, 5-pin (depending on system plug) |
| Configuration Method | DIP switch on system plug |
| Display Elements | LEDs |
| No Blind Zones | Yes |
| Beam Coding | Yes |
| Cascading | Yes |
| Integrated Laser Alignment Aid | Yes |
| Safe State (Fault Condition) | At least one OSSD is in the OFF state |
| Replaces | C40S-1204CA010 |
| Items Supplied | Sender (system plug ordered separately) |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Country/Region of Manufacture United States
Operating Distance 30 m
Sensing Range 30 m
Connection Type M12 male connector, 5-pin or 8-pin
Replaces C40S-1204CA010
Application Normal industrial environment
Ratio DIP switch on system plug
Manufacturer SICK
Enclosure Type IP65 / IP67
Part Number C4P-SA12031A00 / C4P-EA12031C00
Height 1200 mm
Min. Object Size 30 mm
Response Time 12 ms (Uncoded); 20 ms (Code 1 or Code 2)
Series deTec4
Shelf LC Bin 21
Model C4P-SA12031A00
MPN C4P-SA12031A00 / C4P-EA12031C00
Voltage 24VDC
Type Light Curtain
