Product Description

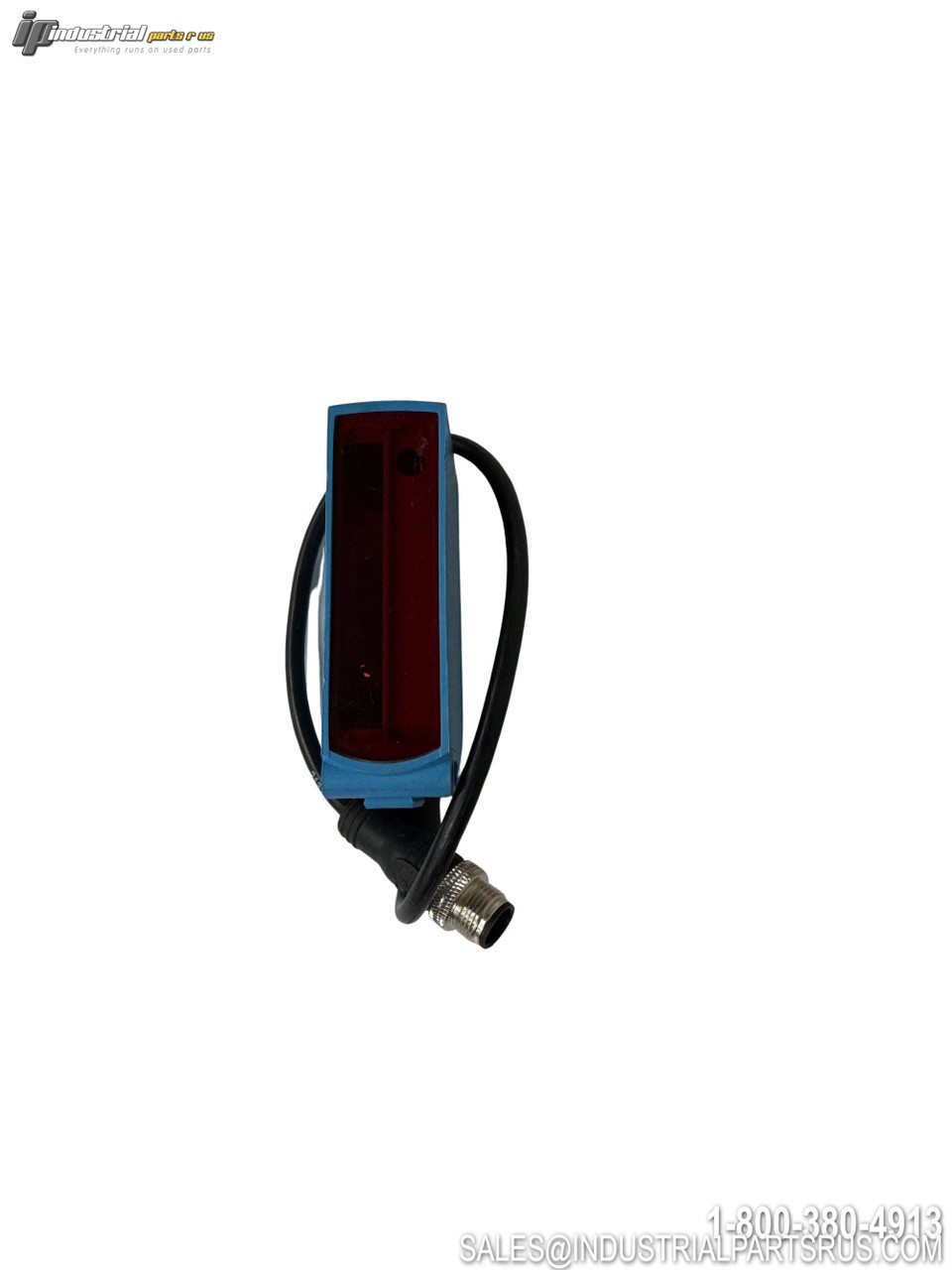

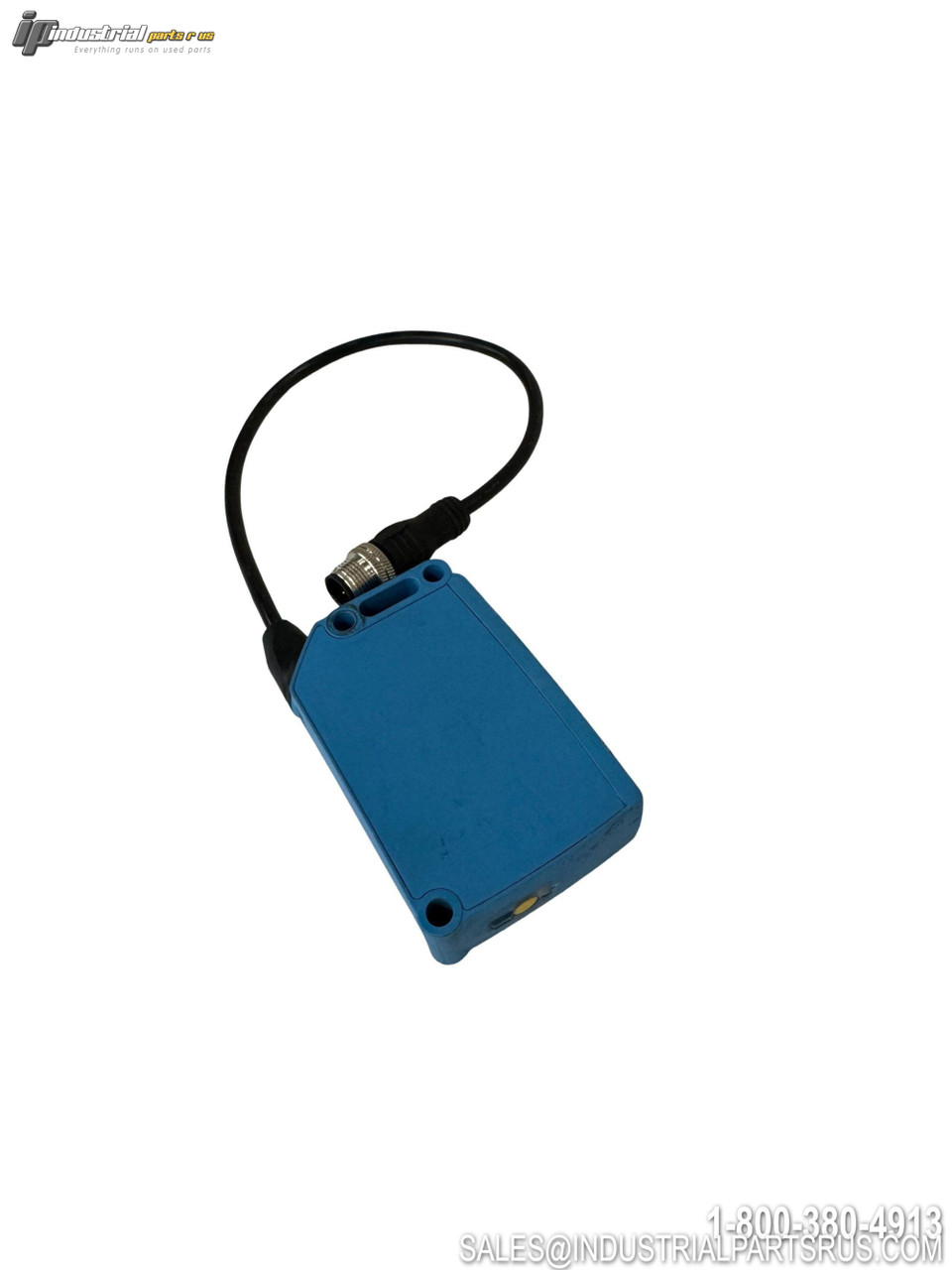

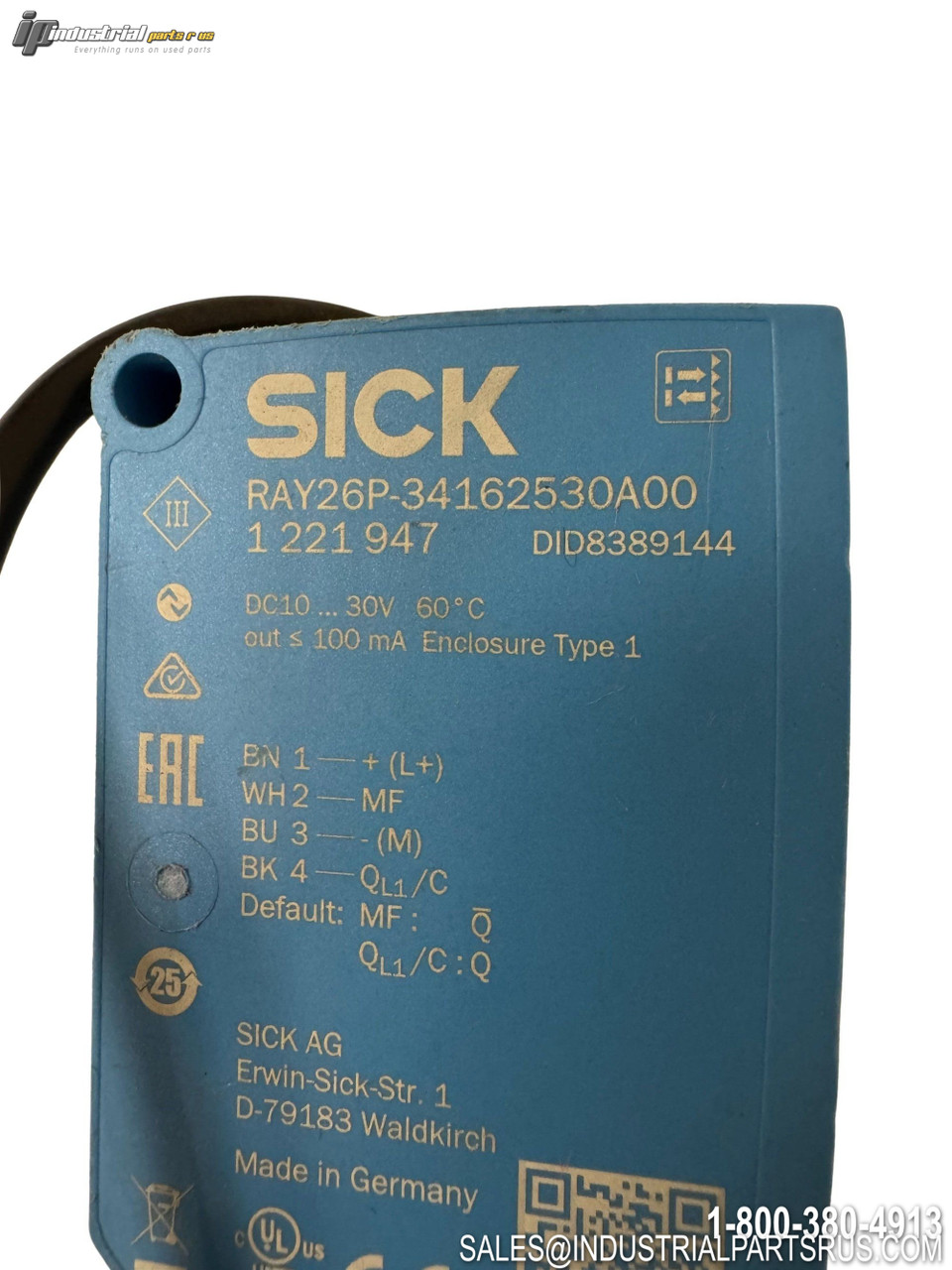

The Sick RAY26P-34162530A00 is a RAY26 Reflex Array MultiTask photoelectric sensor that uses a retroreflective (autocollimation) detection principle to identify leading edges of small, flat, transparent, or unevenly formed objects on conveyor belts within its 55 mm light array. Operating on 10–30 V DC with a Push-Pull PNP/NPN output, it offers a maximum sensing range of 3 m and supports IO-Link communication for advanced configuration. With BluePilot Teach-in adjustment, a 170 Hz switching frequency, and a robust VISTAL® plastic housing rated IP66/IP67, it is purpose-built for demanding industrial automation environments including packaging, material handling, and conveyor systems.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Sick |
| Model / Part Number | RAY26P-34162530A00 |
| Manufacturer Part Number (SICK P/N) | 1221947 |
| Product Series | RAY26 Reflex Array |
| Product Type | Photoelectric Sensor – MultiTask Retro-Reflective |
| Sensor / Detection Principle | Photoelectric retro-reflective, Autocollimation, Reflex Array |
| Sensing Range (Max) | 0 m … 3 m (with Reflector PL80A) |
| Detection Height | 55 mm |
| Minimum Object Size | 5 mm (position-independent detection within the light array) |
| Light Source | PinPoint LED – Visible Red Light |
| Wavelength | 635 nm |
| Light Spot Size (at 1 m) | 55 mm × 9 mm |
| Supply Voltage (UB) | 10 V DC … 30 V DC |
| Ripple | < 5 Vpp |
| Current Consumption | 25 mA (typ.) / 40 mA (max.) |
| Output Type | Push-Pull: PNP/NPN |
| Output / IO-Link Mode | Switching output or IO-Link mode (Output: QL1 / C) |
| Switching Mode | Light / Dark switching (selectable via IO-Link) |
| Output Current (Max) | ≤ 100 mA |
| Response Time | ≤ 3 ms |
| Switching Frequency | 170 Hz |
| Communication Interface | IO-Link V1.1 |
| Adjustment | BluePilot Teach-in button |
| Pin 2 Configuration | External Input (test), Teach-in, switching signal |
| AutoAdapt | Yes |
| Conveyor Belt Suppression | Manual |
| Connection Type | Cable with M12 male connector, 4-pin, 270 mm |
| Cable Material | PVC |
| Connector Type | M12, 4-pin, Male |
| Housing Design | Rectangular (Block) |
| Housing Material | Plastic, VISTAL® |
| Optics Material | Plastic, PMMA |
| Dimensions (W × H × D) | 24.6 mm × 82.5 mm × 53.3 mm |
| Weight | 100 g |
| Enclosure Rating (IP) | IP66 / IP67 |
| Protection Class | III |
| Ambient Operating Temperature | –40 °C to +60 °C |
| Average LED Service Life | 100,000 h at TU = +25 °C |
| Standards / Approvals | CE, cULus Listed (UL File No. NRKH.E181493 & NRKH7.E181493) |
| Special Applications | Transparent objects, perforated objects, flat objects, uneven/shiny objects, position-tolerant detection |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Output Type Push-Pull: PNP/NPN
Country/Region of Manufacture Germany
Operating Distance 0 m … 3 m (with Reflector PL80A)
Full Load Amps 25 mA (typ.) / 40 mA (max.)
Manufacturer SICK
Enclosure Type IP66 / IP67
Part Number RAY26P-34162530A00
Shelf P-7
Model RAY26P-34162530A00
MPN RAY26P-34162530A00
Type Photoelectric Sensor
