Product Description

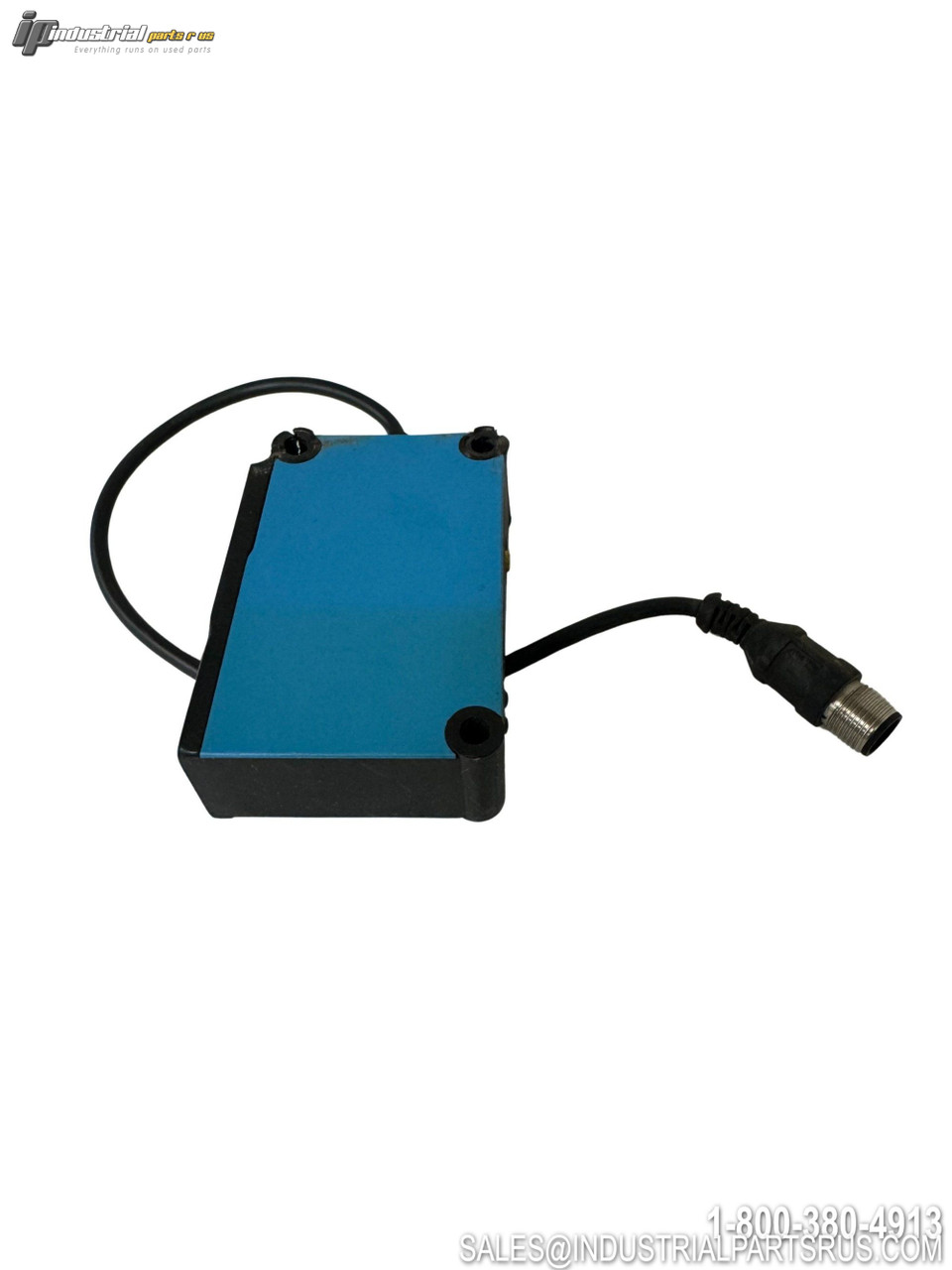

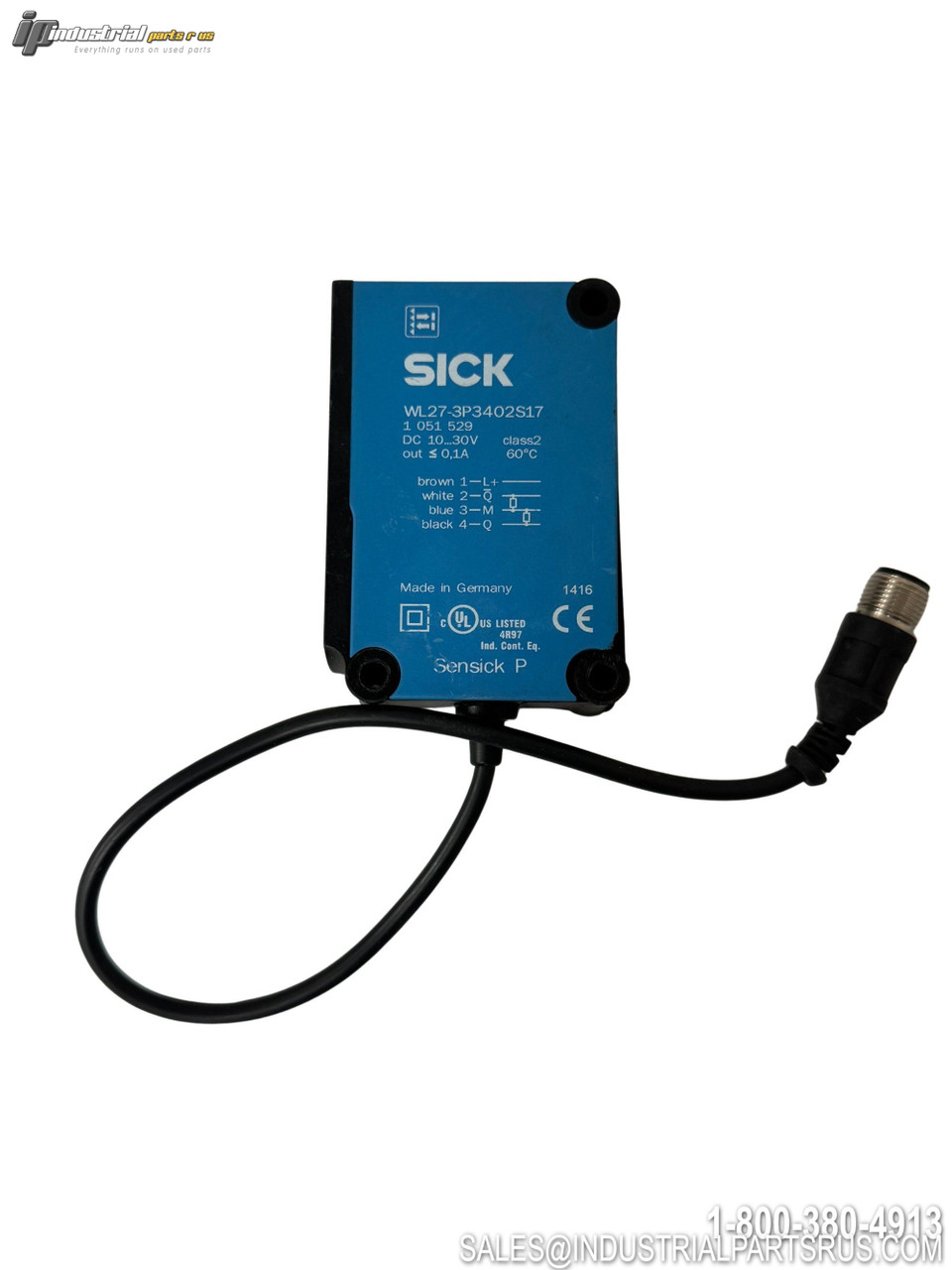

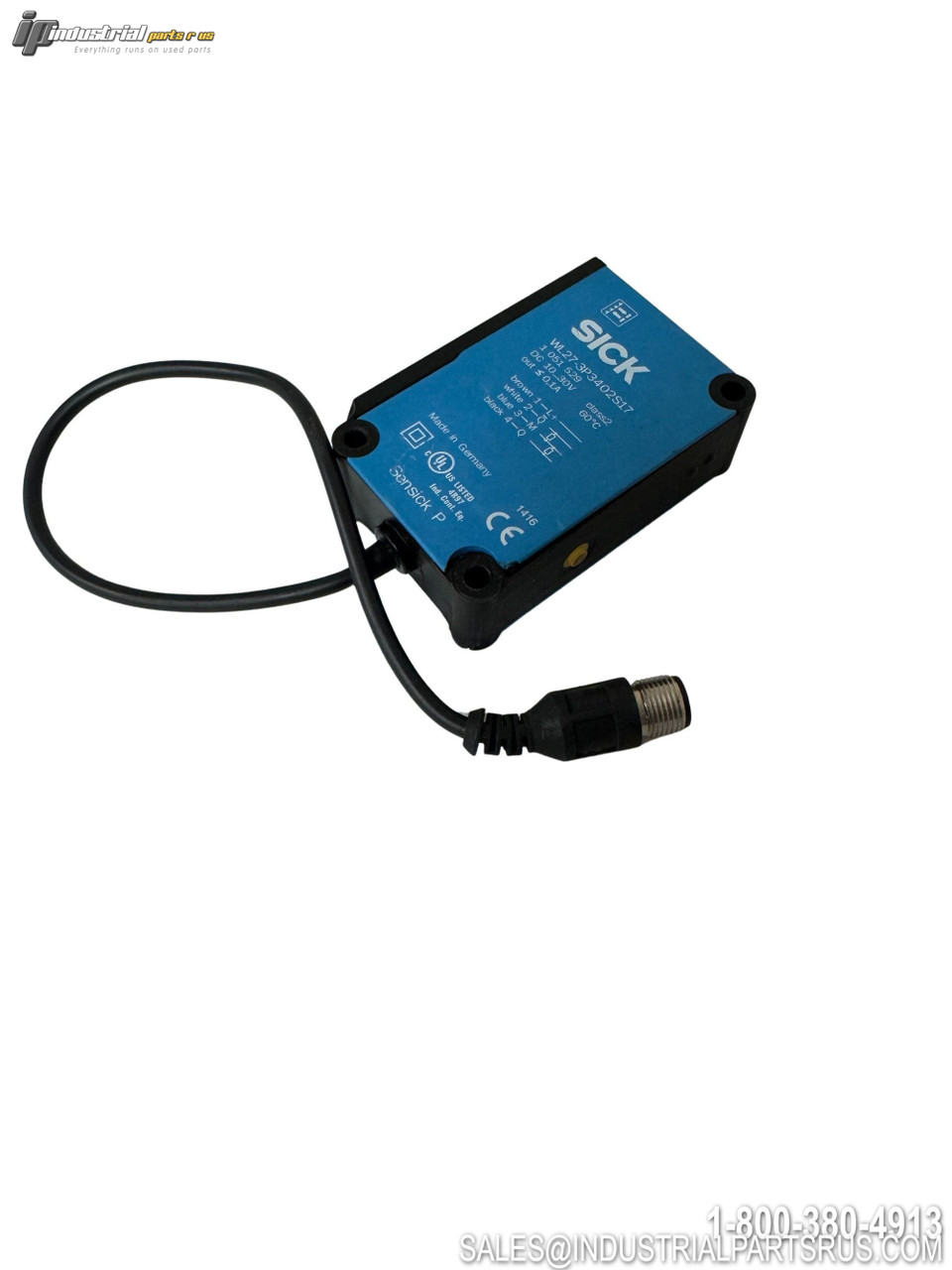

The Sick WL27-3P3402S178740 is a member of the RAY26 Reflex Array family of multitask photoelectric sensors. It operates on the retroreflective (retro-reflective) principle using a light band/array to detect the leading edge of small, flat, transparent, or uneven objects regardless of position within the array. The sensor features a PinPoint LED red light source, single teach-in button with AutoAdapt functionality, and PNP switching output with complementary light/dark switching modes.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Sick |
| Model / Part Number | WL27-3P3402S178740 |
| Product Series | RAY26 Reflex Array |
| Sensor Type | Photoelectric Retroreflective (Reflex Array) |
| Functional Principle | Photoelectric retro-reflective sensor |
| Special Feature | Light band (Reflex Array) |
| Supply Voltage | 10 V DC ... 30 V DC |
| Ripple | < 5 Vpp |
| Current Consumption | ≤ 35 mA |
| Output Type | PNP |
| Output Function | Complementary |
| Switching Mode | Light/dark switching |
| Output Current (Max) | ≤ 100 mA |
| Response Time | ≤ 2.5 ms |
| Switching Frequency | 200 Hz |
| Sensing Range (Max) | 0 m ... 1.5 m |
| Distance: Sensor to Reflector | 0.5 m ... 1.5 m |
| Minimum Object Size | 5 mm (position-independent within light array) |
| Type of Light | Visible red light |
| Light Source | PinPoint LED |
| Adjustment | Single teach-in button / AutoAdapt |
| Connection Type | Cable with M12 male connector, 4-pin, 270 mm |
| Cable Material | Plastic, PVC |
| Housing Material | Plastic, ABS |
| Optics Material | Plastic, PMMA |
| Housing Design | Rectangular |
| Dimensions (W x H x D) | 24.6 mm x 80 mm x 54.2 mm |
| Enclosure Rating | IP67 |
| Protection Class | II |
| Ambient Operating Temperature | -30 °C ... +60 °C |
| Weight | 130 g |
| LED Indicators | Green (supply voltage active), Yellow (received light beam status) |
| Special Applications | Transparent objects, perforated objects, uneven/shiny objects |
| Compliance | CE, cULus (UL File No. NRKH.E181493 / NRKH7.E181493) |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Output Type PNP
Sensor Type Photoelectric
Country/Region of Manufacture Germany
Operating Distance 0.5 m ... 1.5 m (sensor to reflector)
Full Load Amps ≤ 35 mA
Manufacturer SICK
Enclosure Type IP67
Part Number WL27-3P3402S178740
Shelf P-7
Model WL27-3P3402S178740
MPN WL27-3P3402S178740
Type Photoelectric Sensor
