Product Description

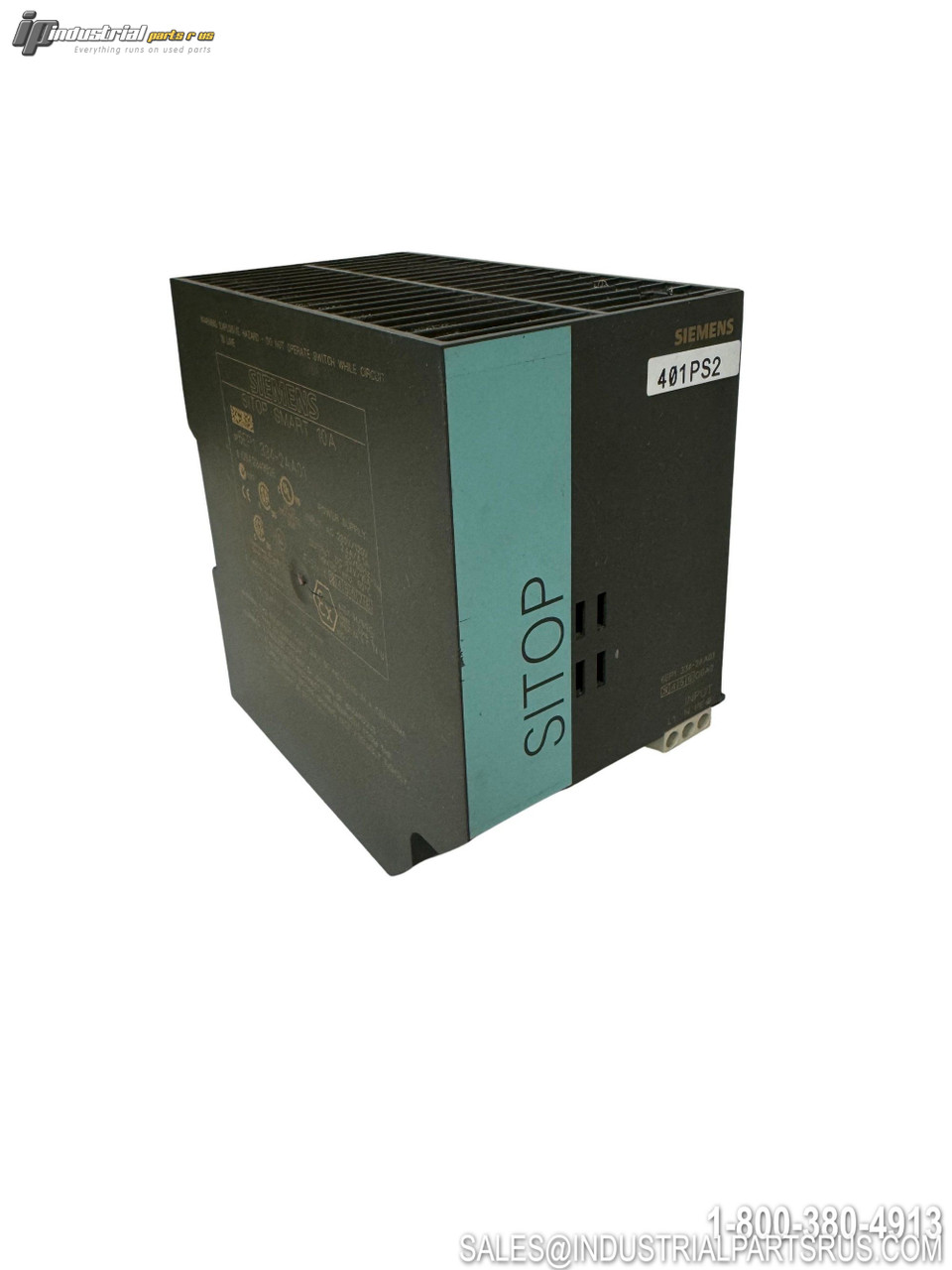

The Siemens 6EP1 334-2AA01 is a SITOP Smart 240W stabilized switching power supply designed for industrial automation applications. This single-phase power supply converts 120/230VAC input to a stable 24VDC output with 10A current capability. The unit features adjustable output voltage, DIN rail mounting, screw terminal connectors, and integrated overload protection for reliable operation in demanding industrial environments.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Siemens |
| Model/Part Number | 6ep1 334-2aa01 |
| Product Series | SITOP Smart |
| Power Supply Type | Switching |
| Input Voltage | 120/230VAC |
| Input Current | 4.1A |
| Input Voltage Range (Min) | 85VAC |
| Input Voltage Range (Max) | 264VAC |
| Number of Phases | 1 |
| Output Voltage | 24VDC |
| Output Current | 10A |
| Output Voltage Range (Min) | 22.8VDC |
| Output Voltage Range (Max) | 28VDC |
| Output Power | 240W |
| Number of Outputs | 1 |
| Efficiency | 90% |
| Tolerance | 3% |
| Mounting Type | DIN Rail |
| Width | 70mm |
| Depth | 125mm |
| Weight | 750g |
| Operating Temperature (Min) | 0°C |
| Operating Temperature (Max) | 60°C |
| Output Type | Fixed |
| RoHS Compliant | Yes |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686185
Output Type Fixed
Manufacturer Siemens
Part Number 6EP1 334-2AA01
Shelf K-47
Model 6EP1 334-2AA01
MPN 6EP1 334-2AA01
Type DC Power Supply
