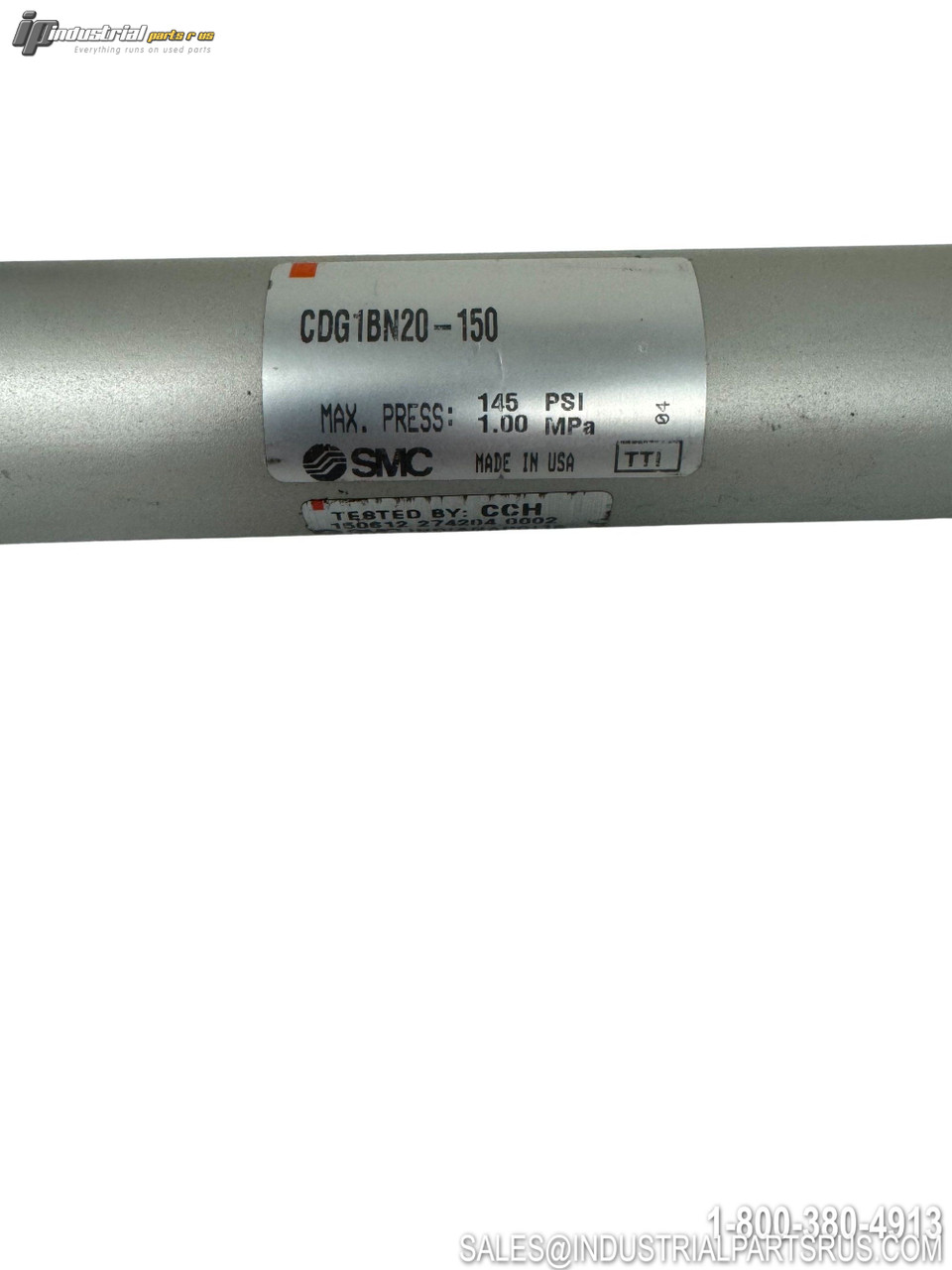

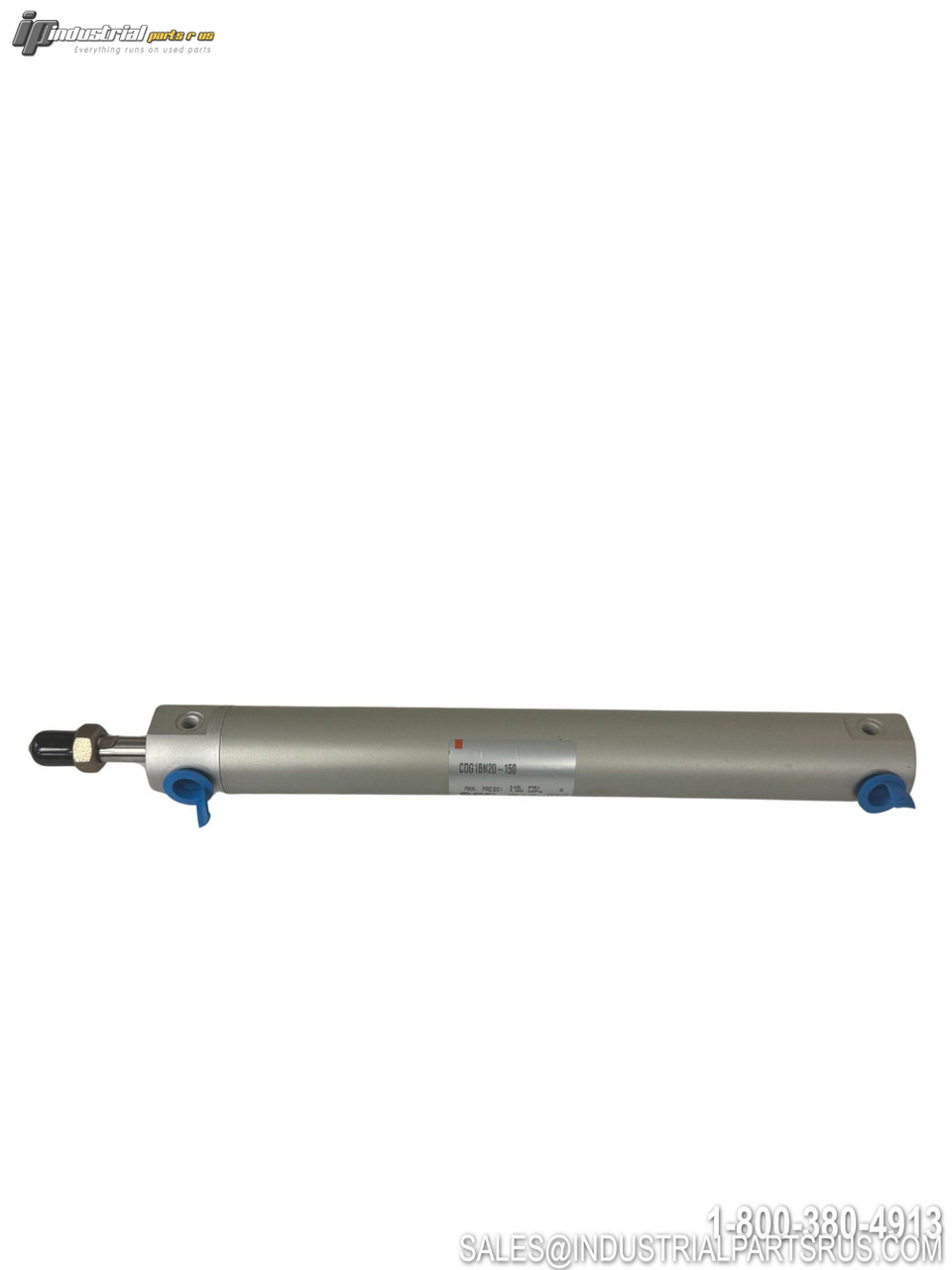

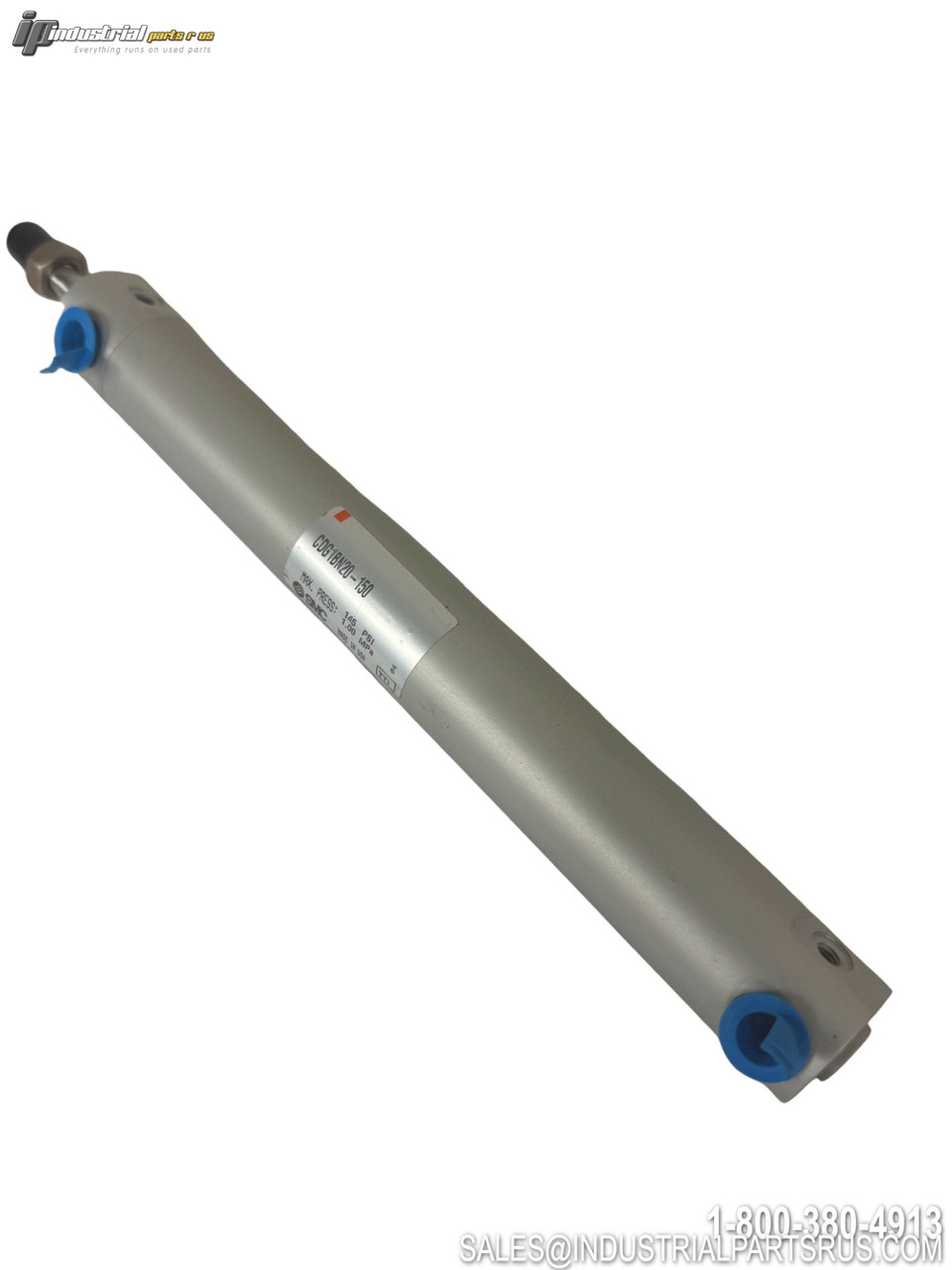

Product Description
The SMC CDG1BN20-150 is a precision pneumatic cylinder from the CG1 series designed for demanding industrial automation applications. This double acting, single rod cylinder features a 20mm bore diameter and 150mm stroke length, with an impact extruded aluminum tube that provides an extraordinarily smooth finish for low break-away pressure and smooth stroke action. The cylinder is auto switch capable and offers multiple mounting options for versatile installation requirements.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | SMC |
| Model/Part Number | CDG1BN20-150 |
| Series | CG1 |
| Cylinder Type | Double Acting Single Rod |
| Bore Diameter | 20mm |
| Stroke Length | 150mm |
| Maximum Operating Pressure | 1.0 MPa |
| Minimum Operating Pressure | 0.05 MPa |
| Proof Pressure | 1.5 MPa |
| Cushion Type | Rubber Bumper |
| Mounting Type | Basic (Without Trunnion) |
| Material | Impact Extruded Aluminum |
| Auto Switch Capable | Yes |
| Rod End | Female Available as Standard |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer SMC
Part Number CDG1BN20-150
Shelf B-6
Bore Diameter 20 mm
Model CDG1BN20-150
MPN CDG1BN20-150
Type Pneumatic Cylinder
