Product Description

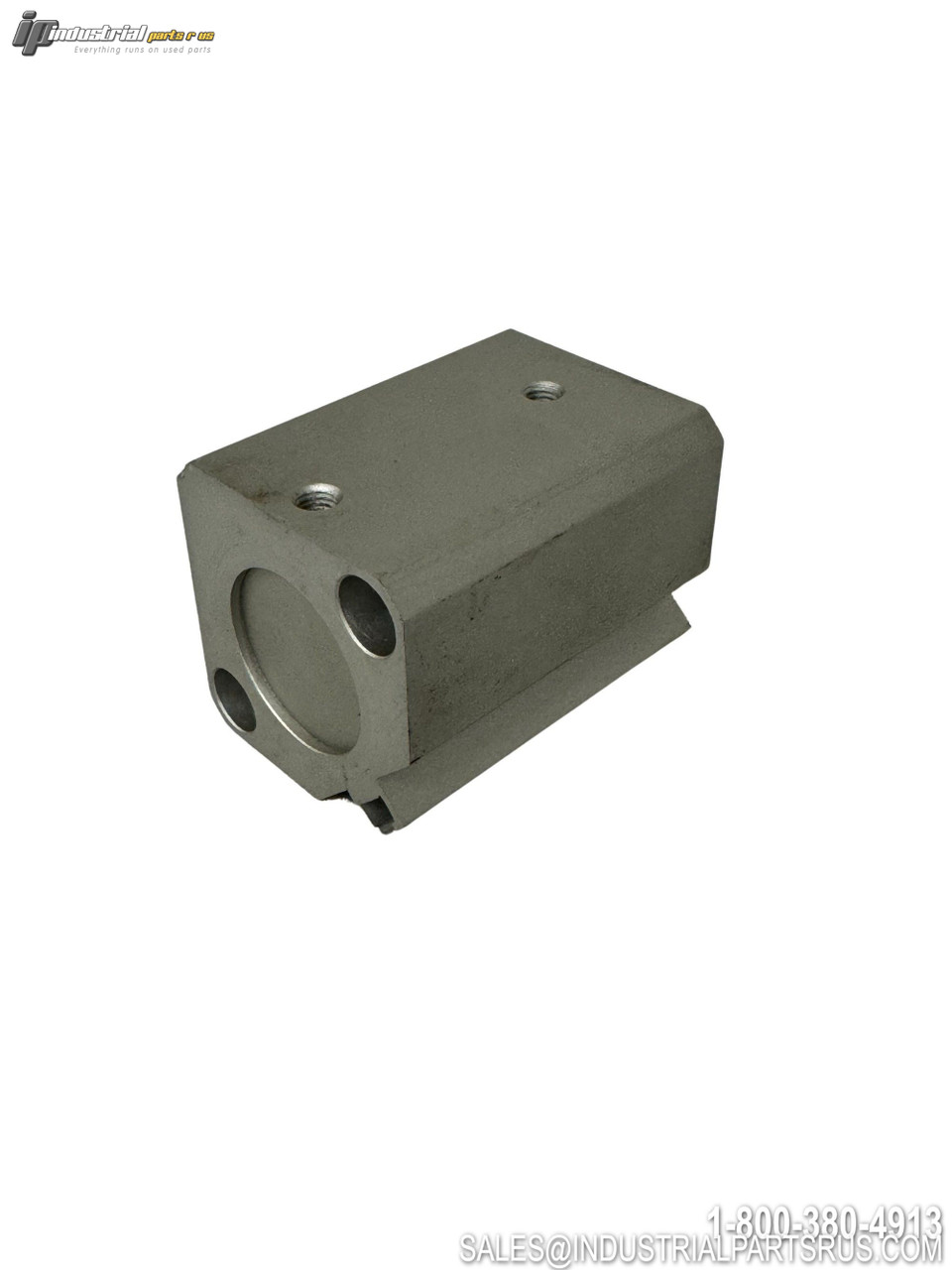

The SMC NCDQ2B25-20D is a compact pneumatic cylinder from SMC's popular NCQ2 series. This double-acting cylinder features a 25mm bore diameter and 20mm stroke length, designed for North American applications with NPT threads. The cylinder includes built-in magnet capability for auto switch mounting and utilizes through hole mounting configuration.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | SMC |
| Model/Part Number | NCDQ2B25-20D |
| Series | NCQ2 |
| Cylinder Type | Compact Cylinder |
| Action | Double Acting |
| Bore Diameter | 25mm |
| Stroke Length | 20mm |
| Mounting Type | Through Hole Mount (B) |
| Rod Type | Standard Rod |
| Thread Type | NPT (North American) |
| Maximum Operating Pressure | 1.0 MPa (145 PSI) |
| Proof Pressure | 1.5 MPa (218 PSI) |
| Operating Temperature Range | -10°C to +60°C |
| Piston Speed | 50-500 mm/s |
| Magnet | Built-in for Auto Switch |
| Auto Switch Mounting | 4 Surface Mounting Capability |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Country/Region of Manufacture China
Manufacturer SMC
Part Number NCDQ2B25-20D
Shelf K -67
Bore Diameter 25 mm
Model NCDQ2B25-20D
MPN NCDQ2B25-20D
Type Pneumatic Cylinder
