Product Description

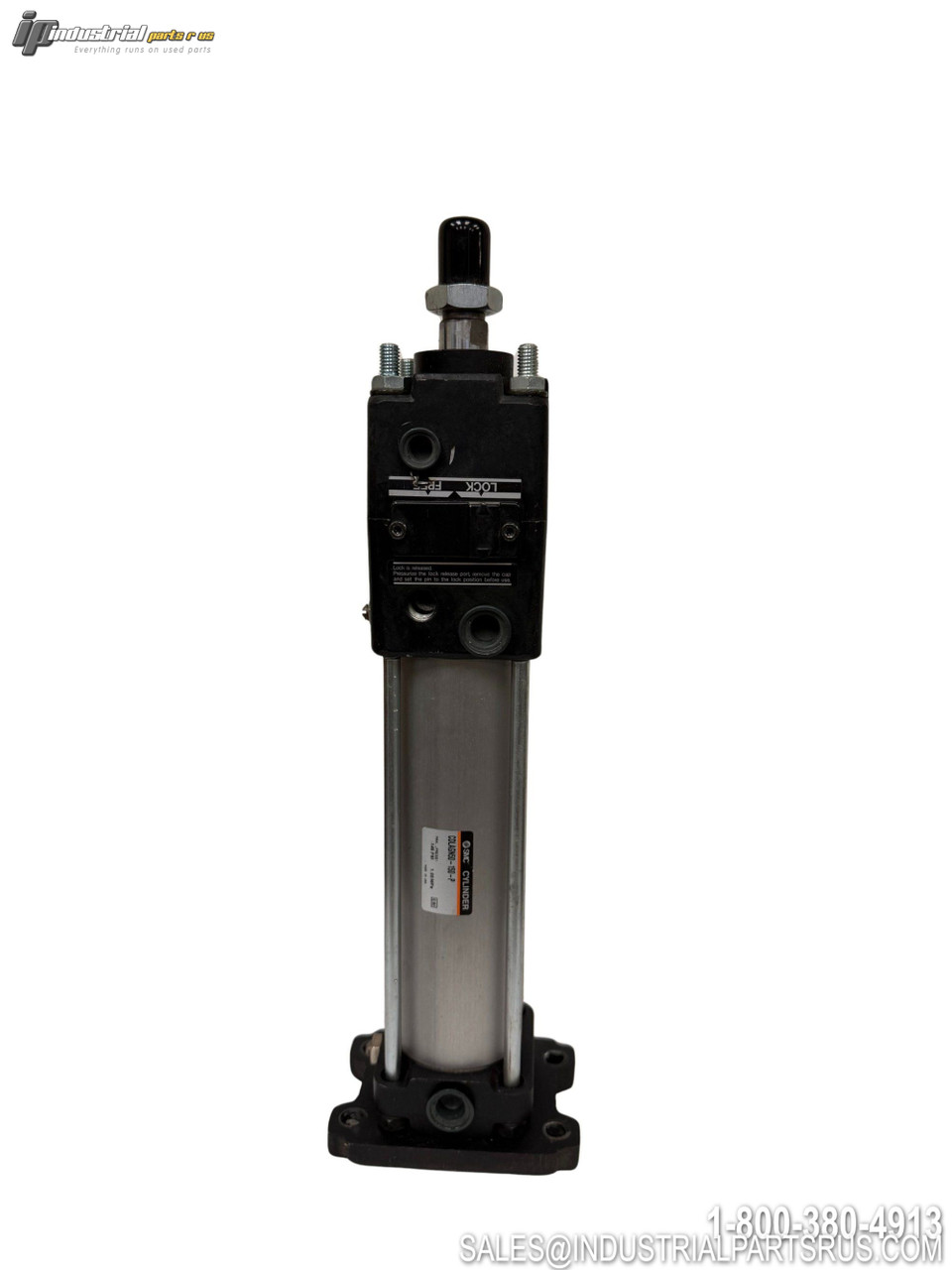

The SMC CDLAGN50-150-P is a fine lock (locking) air cylinder from SMC's CDLA series, featuring a 50mm bore and 150mm stroke with NPT port threads. This double-acting, single-rod cylinder incorporates a bi-directional fine lock mechanism ideal for intermediate stops, emergency stops, and vertical drop prevention applications. It includes a built-in magnet for compatibility with SMC auto switches and operates at speeds of 50 to 500 mm/s within the allowable kinetic energy range.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | SMC |
| Model / Part Number | CDLAGN50-150-P |
| Series | CDLA / CLA Fine Lock Cylinder |
| Product Type | Fine Lock Pneumatic Cylinder (Cylinder with Lock) |
| Bore Diameter | 50 mm |
| Stroke Length | 150 mm |
| Cylinder Action | Double Acting |
| Rod Configuration | Single Rod |
| Mounting Style | Basic / Clevis (GN) |
| Max Operating Pressure | 1.0 MPa (145 PSI) |
| Min Operating Pressure | 0.08 MPa (11.6 PSI) |
| Port Size / Thread Type | 3/8" NPT |
| Lock Type | Fine Lock — Bi-Directional (Spring Lock) |
| Lock Applications | Intermediate stop, emergency stop, drop prevention |
| Piston Speed Range | 50 to 500 mm/s |
| Built-in Magnet | Yes (auto switch capable) |
| Seal / Gasket Material | NBR |
| Operating Temperature | -10°C to +60°C |
| Lubrication | Non-lube (lubrication not required) |
| Fluid Media | Compressed Air |
| Manufacturer | SMC Corporation |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686208
Manufacturer SMC
Part Number CDLAGN50-150-P
Shelf B-16
Bore Diameter 50 mm
Model CDLAGN50-150-P
MPN CDLAGN50-150-P
Type Pneumatic Cylinder
