Product Description

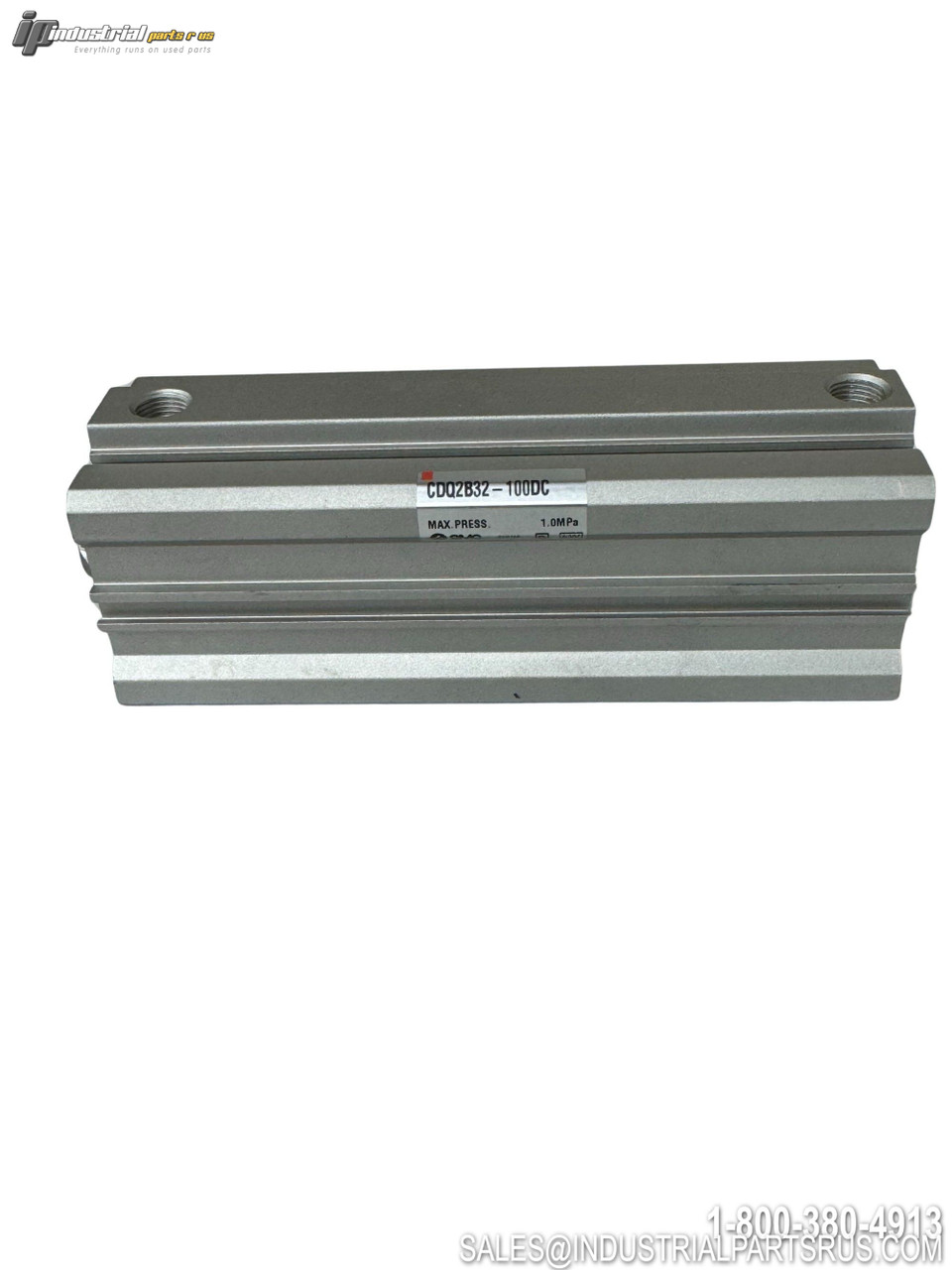

The SMC CDQ2B32-100DC is a compact pneumatic cylinder from the CQ2/CDQ2 series featuring a 32mm bore diameter and 100mm stroke length. This double acting cylinder includes a built-in magnet, standard rod configuration, and through hole mounting with rubber bumper. The CDQ2 series represents SMC's compact cylinder design optimized for automation applications requiring reliable pneumatic actuation in confined spaces.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | SMC |
| Model/Part Number | CDQ2B32-100DC |
| Product Type | Compact Cylinder |
| Series | CQ2/CDQ2 |
| Bore Diameter | 32mm |
| Stroke Length | 100mm |
| Cylinder Action | Double Acting |
| Rod Configuration | Single Rod, Standard |
| Mounting Type | Through Hole Mount |
| Port Thread | RC/M Thread |
| Built-in Magnet | Yes |
| Bumper Type | Rubber Bumper |
| Weight | 3.00 lbs |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer SMC
Part Number CDQ2B32-100DC
Shelf B-6
Bore Diameter 32 mm
Model CDQ2B32-100DC
MPN CDQ2B32-100DC
Type Compact Cylinder
