Product Description

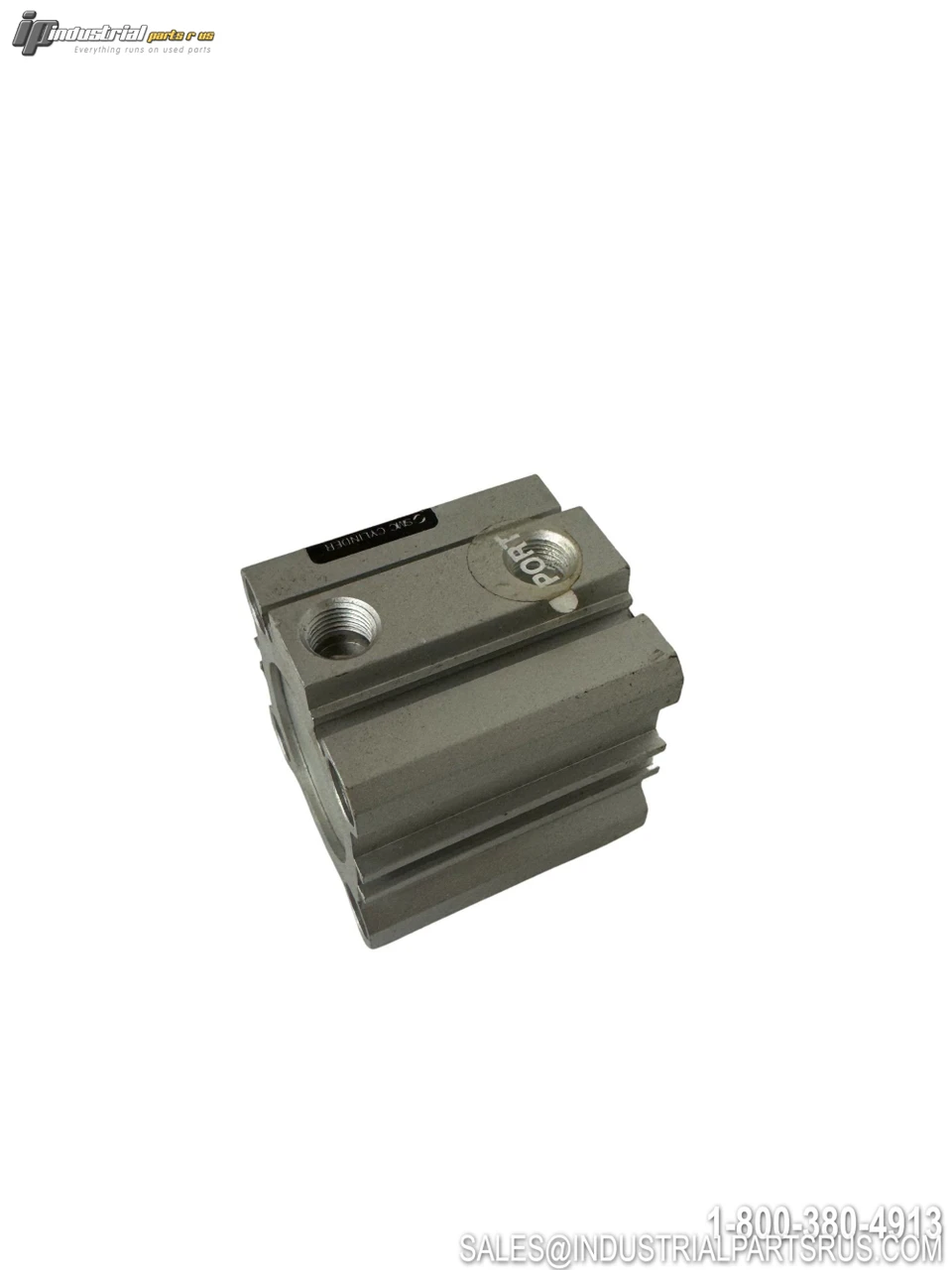

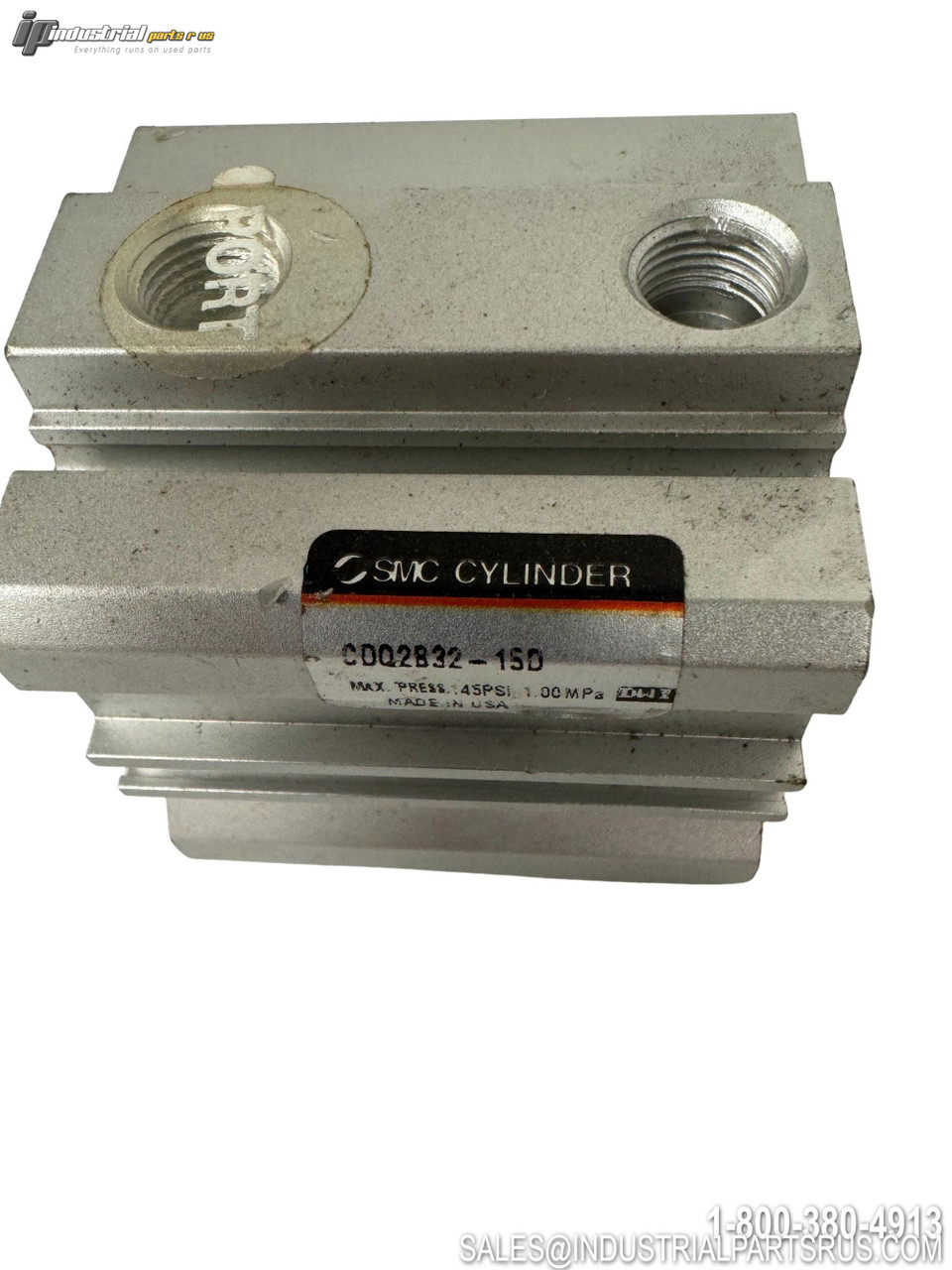

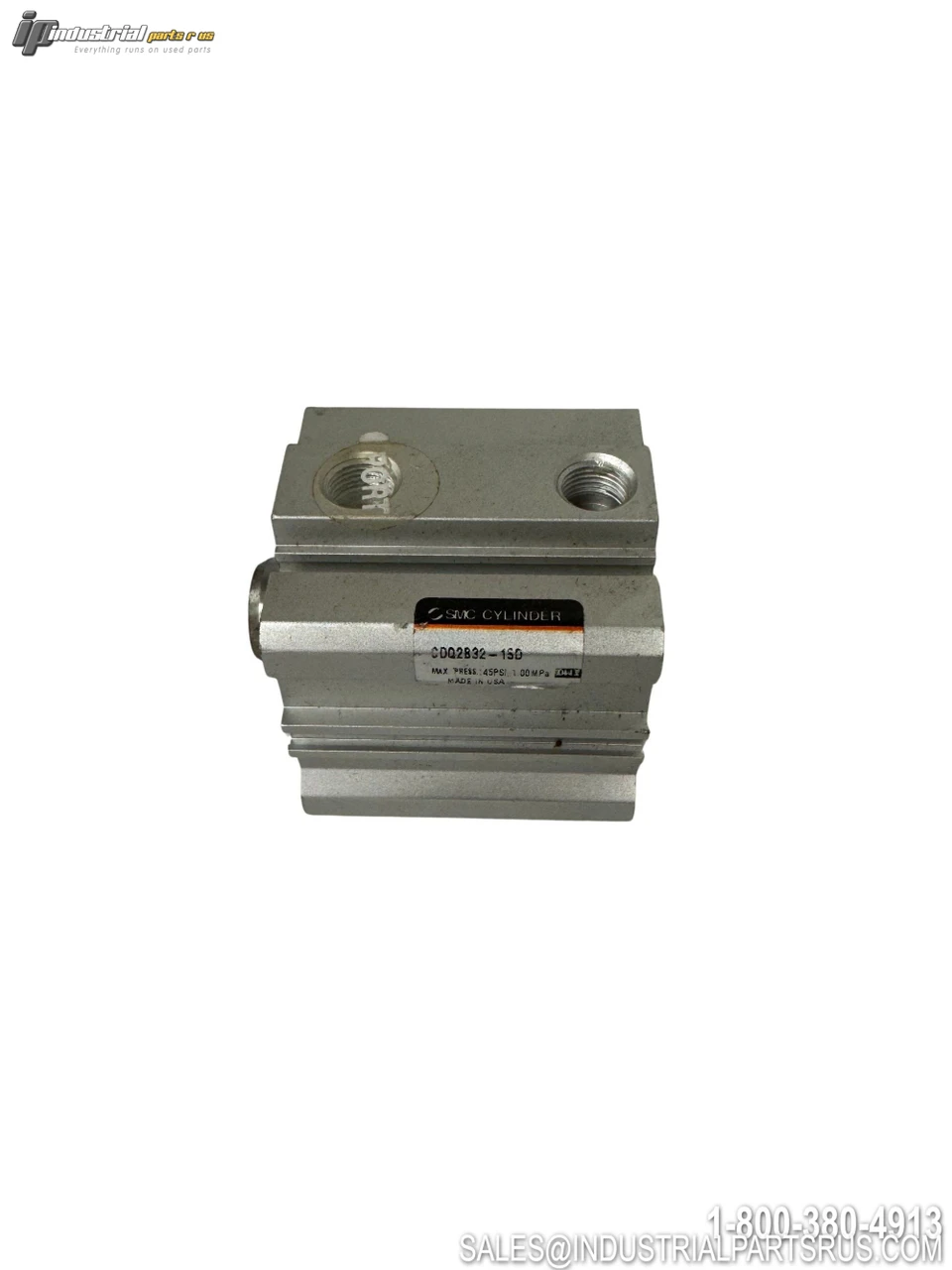

The SMC CDQ2B32-15D is a compact pneumatic cylinder from SMC's world-renowned CQ2 series. This double acting, single rod cylinder features a 32mm bore diameter with 15mm stroke length, designed for space-saving applications. The CQ2 series is SMC's best-selling pneumatic cylinder globally, supporting a wide range of industrial automation applications.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | SMC |
| Model/Part Number | CDQ2B32-15D |
| Product Type | Compact Cylinder |
| Series | CQ2 |
| Bore Diameter | 32mm |
| Stroke Length | 15mm |
| Action | Double Acting |
| Cylinder Type | Single Rod |
| Suitable Media | Air |
| Maximum Operating Pressure | 1.0 MPa (145 PSI) |
| Maximum Operating Temperature | +70°C |
| Dimensions | 45 x 58.5 x 45mm |
| Length | 45mm |
| Width | 58.5mm |
| Height | 45mm |
| Auto Switch Mounting | 4 Surfaces |
| Port Size | M5 |
| Rod Thread | Male/Female Available |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer SMC
Part Number CDQ2B32-15D
Shelf B-15
Bore Diameter 32 mm
Model CDQ2B32-15D
MPN CDQ2B32-15D
Type Compact Cylinder
