Product Description

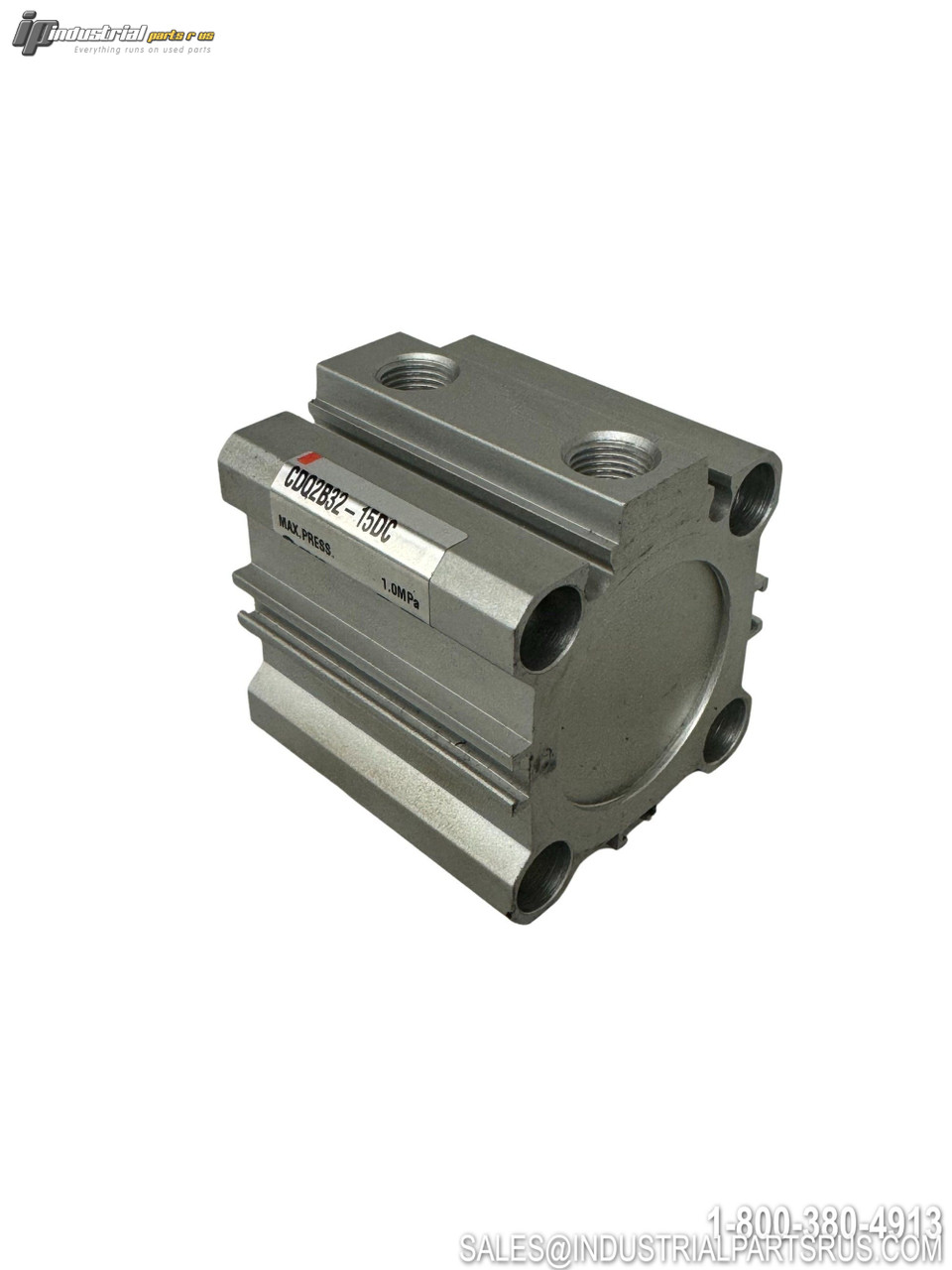

The SMC CDQ2B32-15DC is a double-acting compact pneumatic cylinder from the CQ2 series designed for space-saving applications. This cylinder features a 32mm bore diameter and 15mm stroke length with through-hole mounting configuration and female threaded rod end.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | SMC |
| Model/Part Number | CDQ2B32-15DC |
| Series | CQ2 |
| Bore Diameter | 32mm |
| Stroke Length | 15mm |
| Cylinder Type | Compact Cylinder |
| Action | Double-Acting |
| Rod Configuration | Single Rod |
| Rod End Thread | Female Thread |
| Mounting Type | Through Hole |
| Port Thread | Rc Thread |
| Maximum Operating Pressure | 1.0 MPa |
| Minimum Operating Pressure | 0.05 MPa |
| Operating Temperature Range | -10°C to +60°C |
| Overall Height | 45mm |
| Overall Length | 55mm |
| Overall Width | 49.5mm |
| Magnetized Piston | Yes |
| Auto Switch Capable | Yes |
| Cushioning | None |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer SMC
Part Number CDQ2B32-15DC
Shelf B-15
Bore Diameter 32 mm
Model CDQ2B32-15DC
MPN CDQ2B32-15DC
Type Compact Cylinder
