Product Description

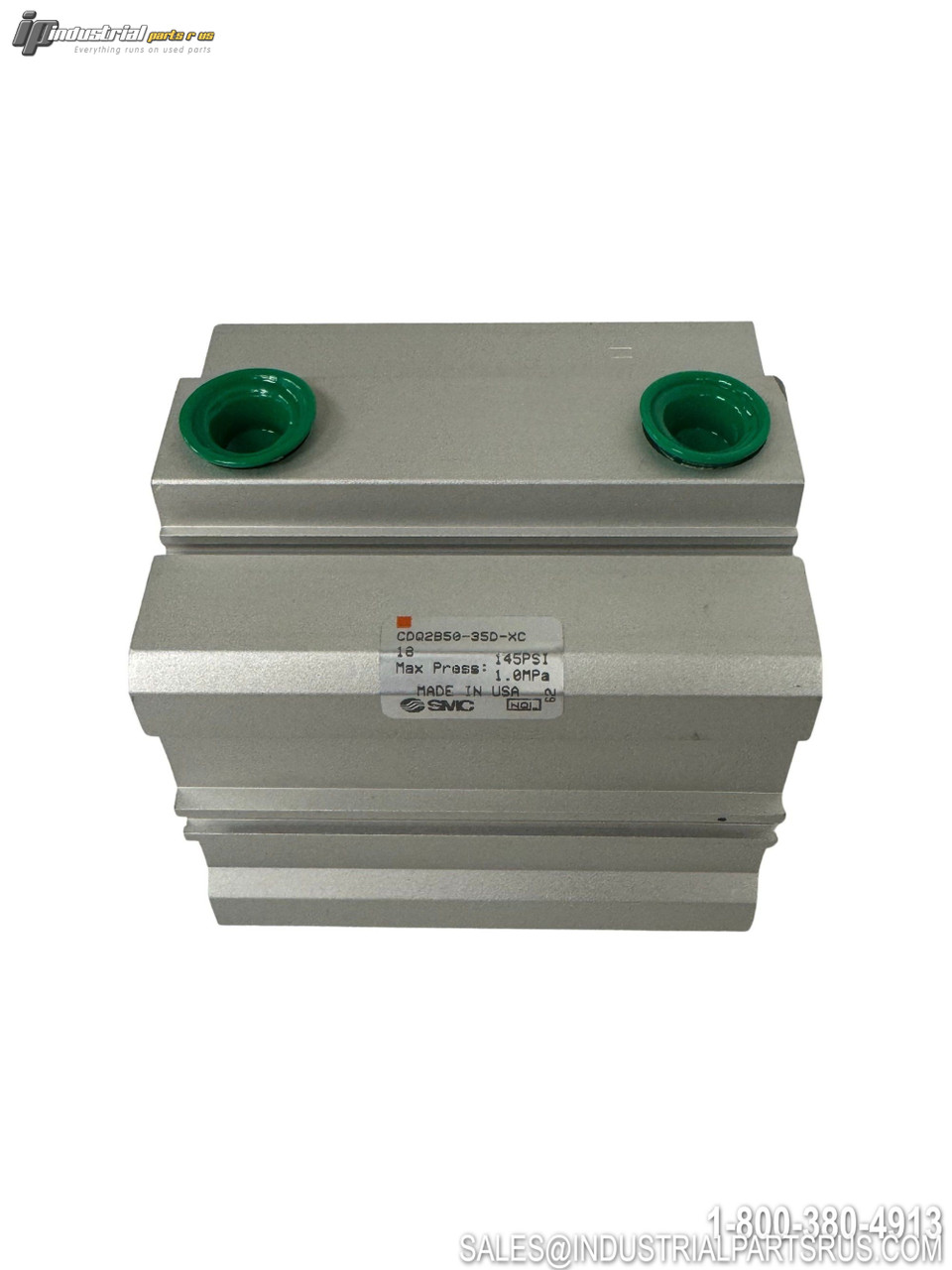

This SMC CDQ2B50-35D-XC18 is a compact pneumatic cylinder from the CQ2 series featuring a 50mm bore diameter and 35mm stroke length. The CQ2 compact cylinder has a redesigned body that allows auto switch mounting on any of the 4 surfaces depending on installation conditions. Auto switch mounting grooves have replaced the mounting rails, preventing projection of auto switches and improving ease and safety of work.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | SMC |
| Model/Part Number | CDQ2B50-35D-XC18 |
| Product Type | Pneumatic Cylinder |
| Series | CQ2 |
| Cylinder Type | Compact |
| Bore Diameter | 50mm |
| Stroke Length | 35mm |
| Action Type | Double Acting |
| Rod Type | Single Rod |
| Maximum Operating Pressure | 1.0 MPa (10 bar) |
| Operating Temperature Range | -10°C to +70°C |
| Body Material | Aluminum Alloy |
| Mounting Style | Through Hole |
| Auto Switch Compatibility | 4-Surface Mounting |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer SMC
Part Number CDQ2B50-35D-XC18
Shelf K-65 tub-2
Bore Diameter 50 mm
Model CDQ2B50-35D-XC18
MPN CDQ2B50-35D-XC18
Type Pneumatic Cylinder
