Product Description

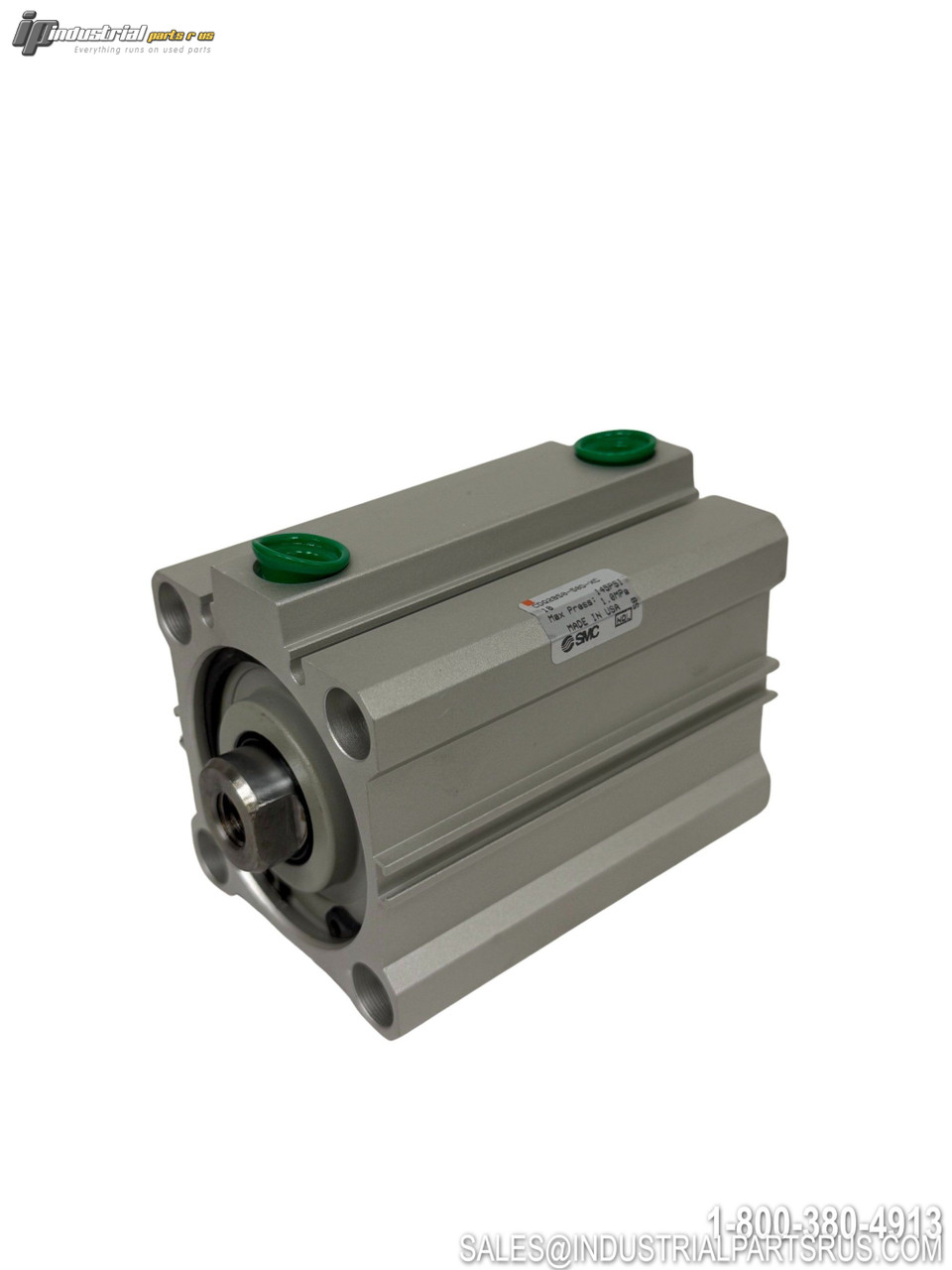

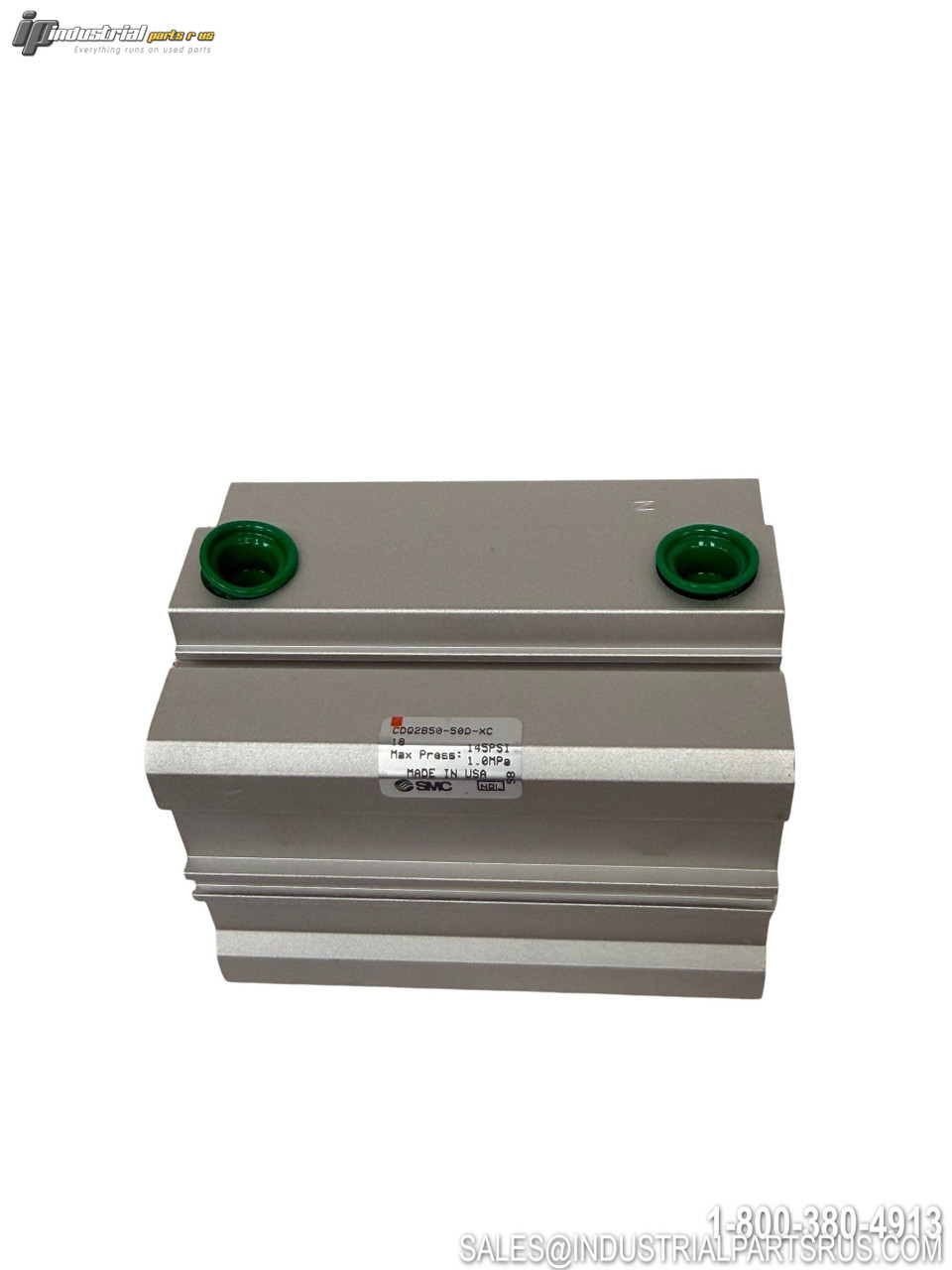

The SMC CDQ2B50-50-XC18 is a CQ2 series compact pneumatic cylinder featuring a 50mm bore diameter and 50mm stroke length. This double acting, single rod cylinder is designed with a space-saving compact body that allows for mounting auto switches on multiple surfaces. The cylinder includes a built-in magnet for auto switch operation and features through-hole mounting for versatile installation options.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | SMC |
| Model/Part Number | CDQ2B50-50-XC18 |
| Series | CQ2 |
| Cylinder Type | Compact Pneumatic Cylinder |
| Bore Diameter | 50mm |
| Stroke Length | 50mm |
| Action | Double Acting |
| Rod Type | Single Rod |
| Mounting Type | Through-hole (Standard) |
| Magnet | Built-in |
| Port Thread Type | M Thread (32-100mm bore standard) |
| Rod End | Male Thread |
| Auto Switch Capability | 4 Surface Mounting |
| Auto Switch Option | XC18 |
| Material | Aluminum Body |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer SMC
Part Number CDQ2B50-50-XC18
Shelf K-67
Bore Diameter 50 mm
Model CDQ2B50-50-XC18
MPN CDQ2B50-50-XC18
Type Pneumatic Cylinder
