Product Description

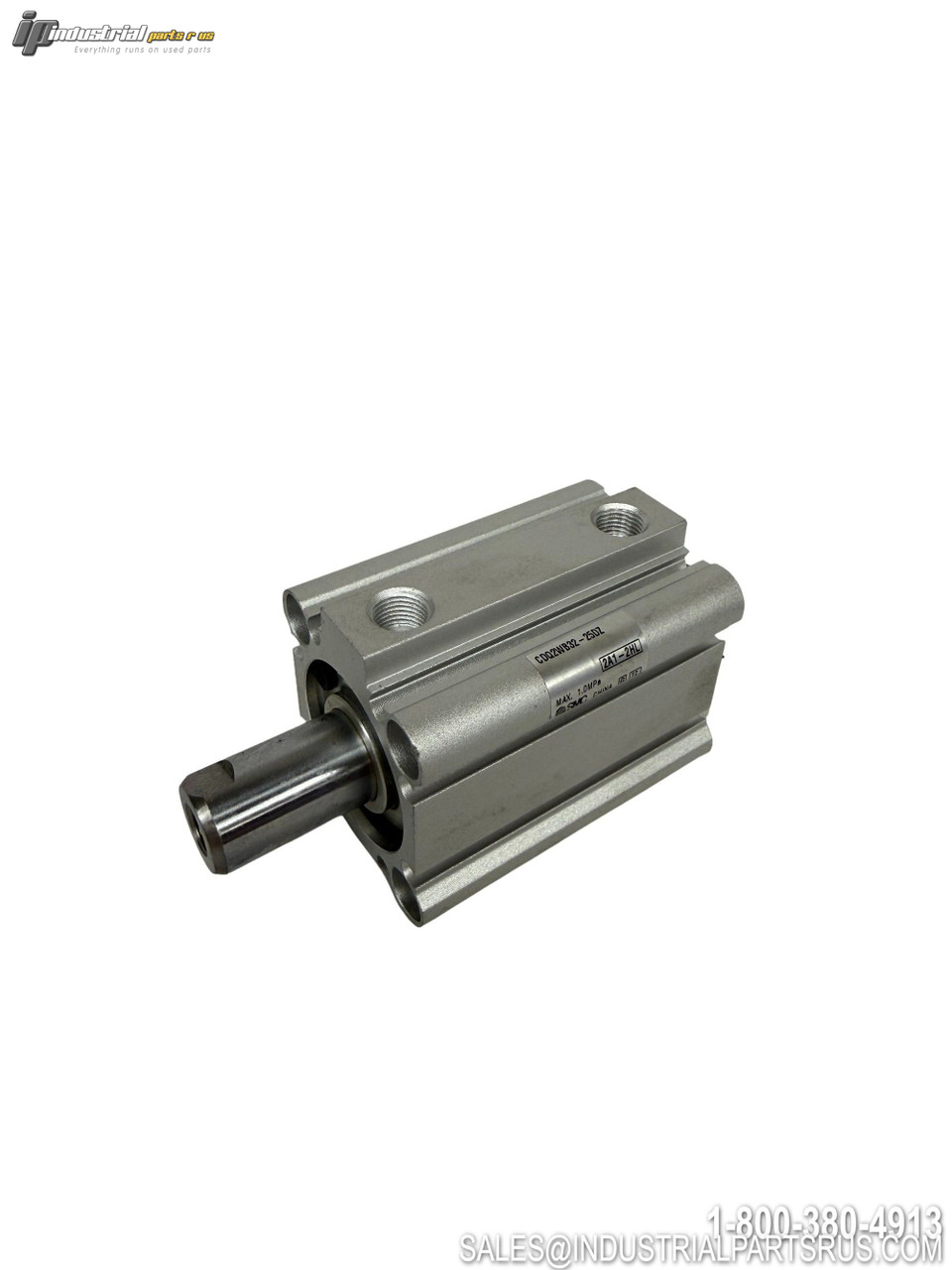

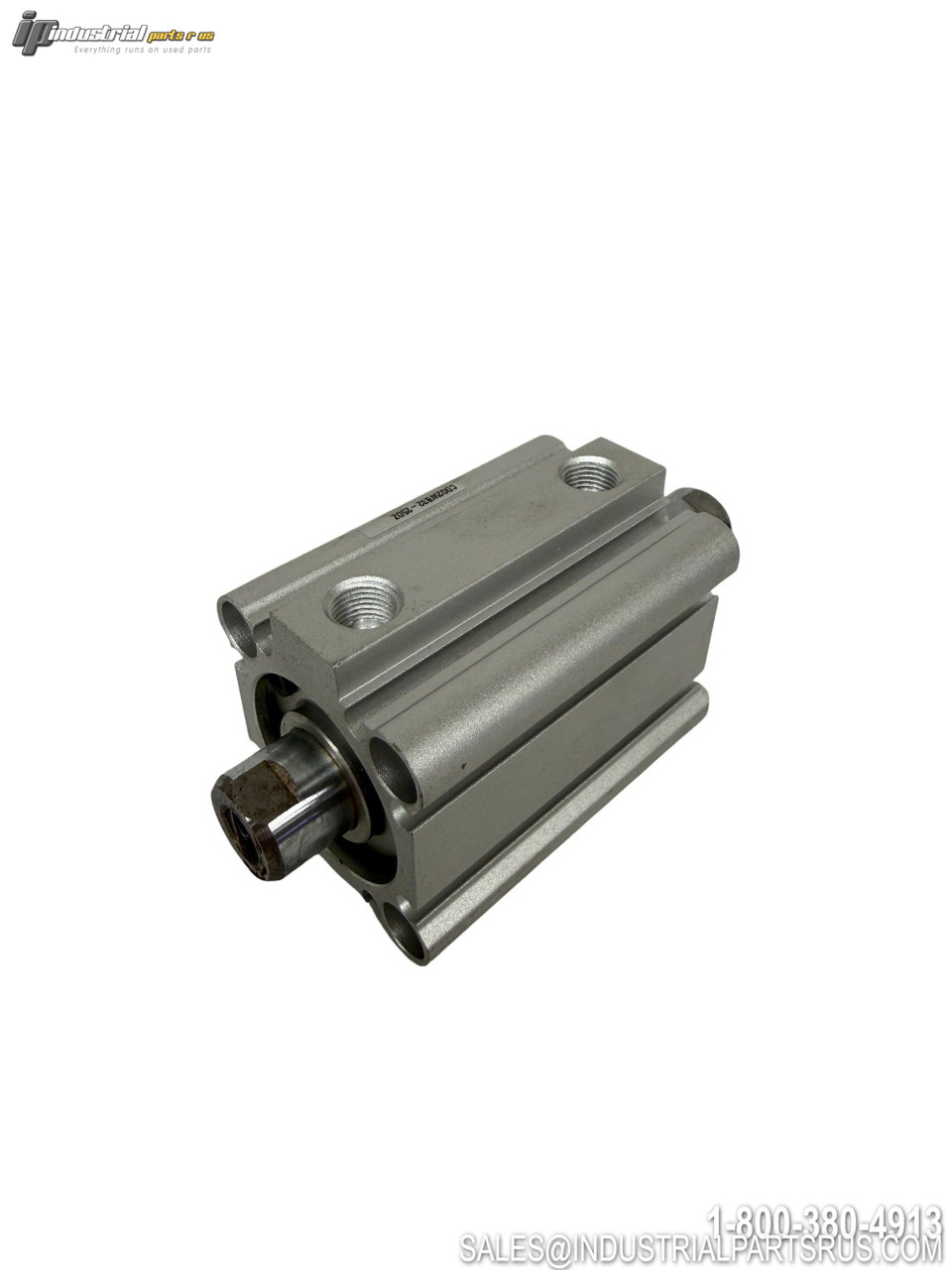

The SMC CDQ2WB32-25DZ is a CQ2W-Z Series compact pneumatic cylinder featuring a double-acting, double-rod configuration with a 32mm bore and 25mm stroke. It incorporates a built-in magnet for auto switch compatibility and utilizes through-hole (standard) mounting, making it ideal for space-constrained automation applications. The cylinder body is constructed from aluminum alloy with stainless steel piston rods and nitrile seals, and supports auto switch mounting on all 4 surfaces.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | SMC |
| Model / Part Number | CDQ2WB32-25DZ |
| Series | CQ2W-Z |
| Product Type | Compact Cylinder, Double Acting, Double Rod |
| Bore Diameter | 32 mm |
| Stroke Length | 25 mm |
| Action Type | Double Acting |
| Rod Configuration | Double Rod |
| Mounting Type | Through-Hole (Standard) |
| Magnet | Built-in (for auto switch) |
| Auto Switch Mounting | 4 surfaces (round groove) |
| Port Thread Type | Rc / NPT / G (32mm bore standard) |
| Fluid | Compressed Air |
| Maximum Operating Pressure | 1.0 MPa (145 PSI) |
| Proof Pressure | 1.5 MPa (217 PSI) |
| Minimum Operating Pressure | 0.05 MPa (7.25 PSI) |
| Operating Temperature (w/o auto switch) | -10°C to +70°C |
| Operating Temperature (with auto switch) | -10°C to +60°C |
| Lubrication | Not Required |
| Cylinder Tube Material | Aluminum Alloy |
| Piston Rod Material | Stainless Steel |
| Seal Material | Nitrile (NBR) |
| Rod End Thread | Female (Internal) Thread — Standard |
| Approximate Weight (base 20mm stroke ref.) | ~319 g (25mm stroke approx. ~330 g) |
| Manufacturer | SMC Corporation |
