Product Description

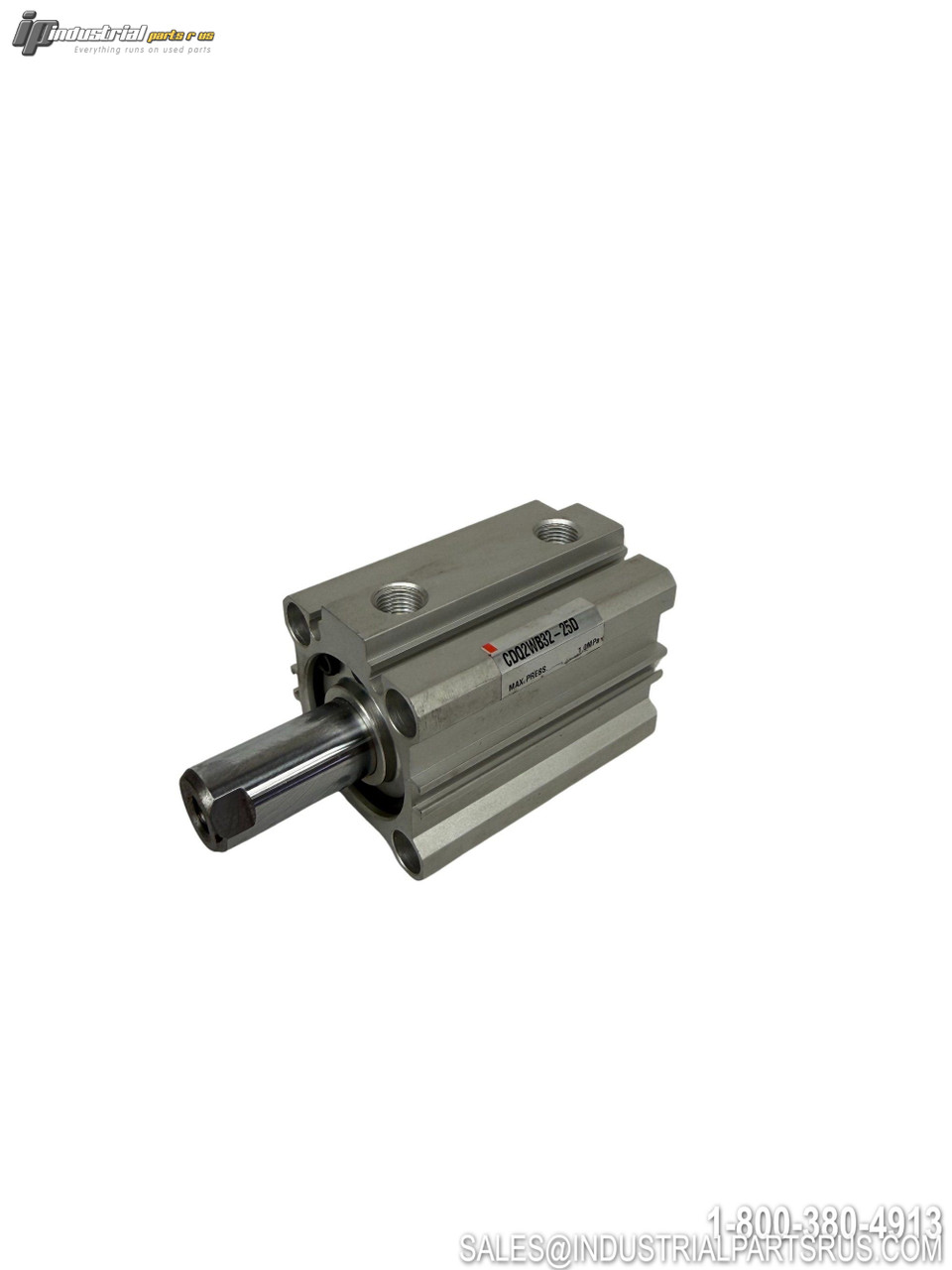

The SMC CDQ2WB32-25D is a CQ2W Series compact pneumatic cylinder featuring a double-acting, double-rod configuration with a 32mm bore and 25mm stroke. It uses through-hole (standard) mounting and incorporates a built-in magnet (D) for compatibility with SMC auto switches, which can be mounted on any of the 4 body surfaces for flexible installation. This space-saving cylinder is designed for applications requiring equal output force in both directions and precise linear motion in compact machine designs. Suitable media is compressed air (non-lube).
Technical Specifications
| Specification | Value |
|---|---|
| Brand | SMC |
| Model / Part Number | CDQ2WB32-25D |
| Series | CQ2W |
| Cylinder Type | Compact Cylinder, Double Acting, Double Rod |
| Bore Diameter | 32 mm (ø32) |
| Stroke Length | 25 mm |
| Action | Double Acting |
| Rod Configuration | Double Rod |
| Mounting Type | Through-Hole (Standard) — B style |
| Maximum Operating Pressure | 1.0 MPa (145 PSI) |
| Proof Pressure | 1.5 MPa |
| Minimum Operating Pressure | 0.05 MPa |
| Port Thread Type | G 1/8 (Rc/NPT/G for ø32–ø100 bore) |
| Piston Speed | 50 to 500 mm/s |
| Pressure Medium | Compressed Air (Non-lube) |
| Magnet | Built-in (D) |
| Auto Switch Mounting | 4 Surfaces (ø32 to ø100) |
| Operating Temperature Range | -10°C to +70°C (without auto switch); -10°C to +60°C (with auto switch) |
| Theoretical Output (at 0.5 MPa, ø32) | 302 N (extend/retract — equal, double rod) |
| Rubber Bumper | None (standard) |
| Body Option | Standard (Rod End Female Thread) |
| Manufacturer | SMC Corporation |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer SMC
Part Number CDQ2WB32-25D
Shelf B-8
Bore Diameter 32 mm
Model CDQ2WB32-25D
MPN CDQ2WB32-25D
Type Compact Cylinder
