Product Description

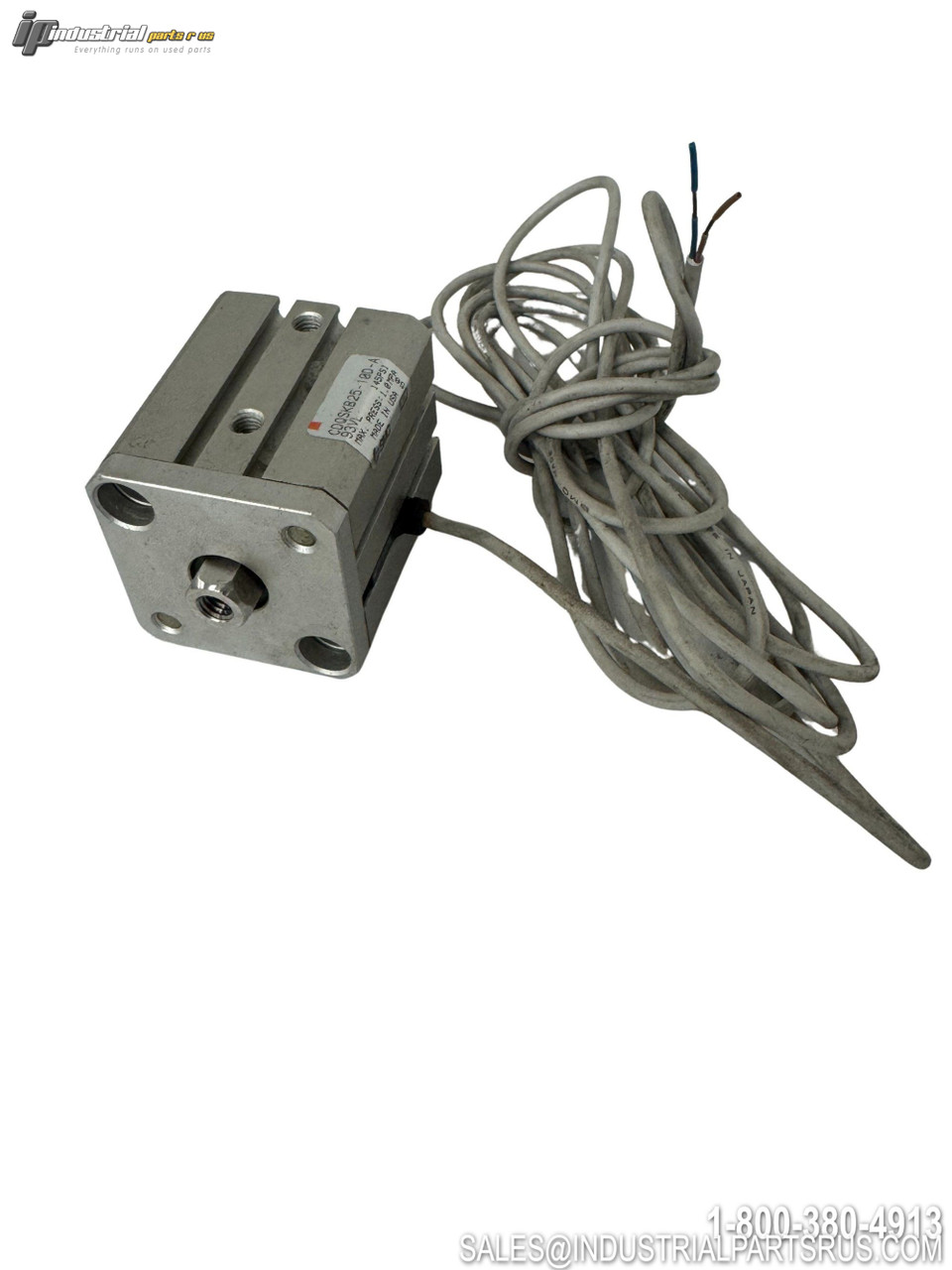

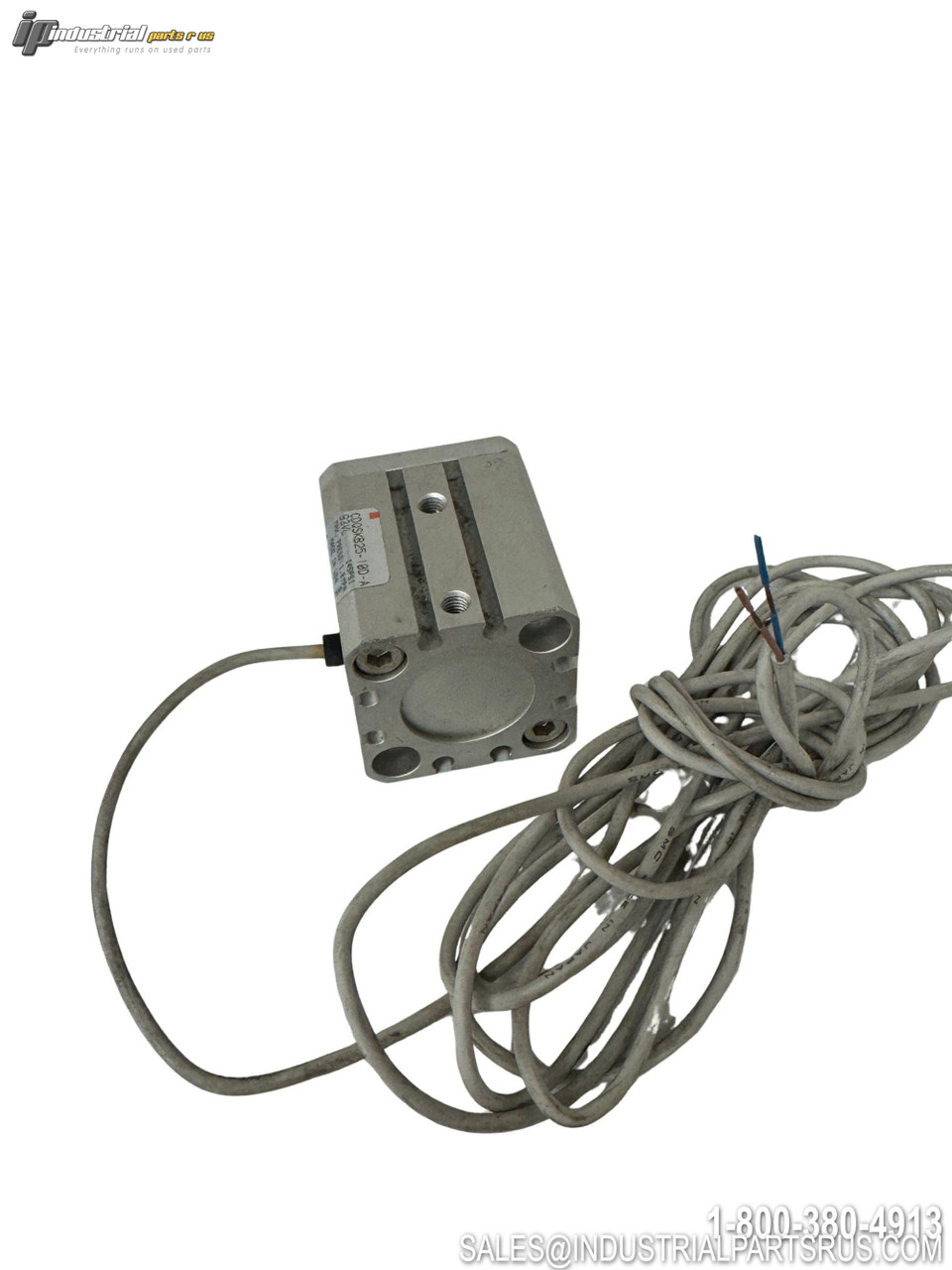

The SMC CDQSKB25-10D-A93VL is a compact double-acting pneumatic cylinder from SMC's CQSK series, designed for applications requiring small space requirements. This cylinder features a 25mm bore diameter, 10mm stroke length, non-rotating rod design, and includes a built-in magnet with A93VL auto switch for position sensing.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | SMC |
| Model/Part Number | CDQSKB25-10D-A93VL |
| Series | CQSK |
| Product Family | CQS Series |
| Cylinder Type | Compact Double-Acting Non-Rotating |
| Bore Diameter | 25mm |
| Stroke Length | 10mm |
| Action Type | Double-Acting |
| Rod Type | Single Rod Non-Rotating |
| Body Style | Square Compact Body |
| Built-in Magnet | Yes |
| Auto Switch | A93VL |
| Maximum Pressure | 1.0 MPa (145 psi) |
| Proof Pressure | 1.5 MPa (218 psi) |
| Minimum Pressure | 0.05 MPa (7.3 psi) |
| Port Connection | Metric M5 x 0.8 Thread |
| Rod End | Female Thread |
| Mounting Type | Through-hole Basic (B) |
| Auto Switch Mounting | 3 or 4 Sides |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer SMC
Part Number CDQSKB25-10D-A93VL
Shelf B-6
Bore Diameter 25 mm
Model CDQSKB25-10D-A93VL
MPN CDQSKB25-10D-A93VL
Type Pneumatic Cylinder
