Product Description

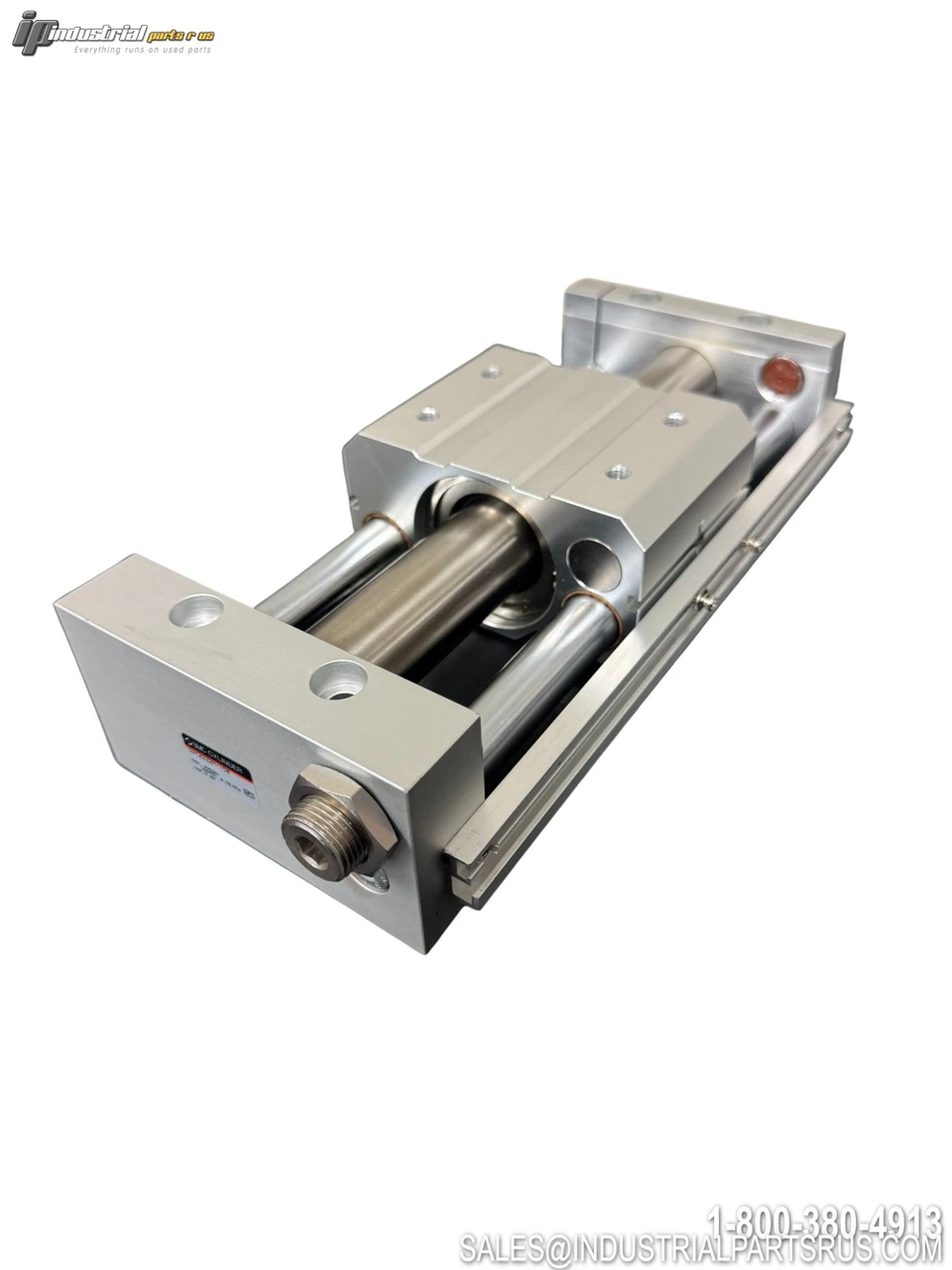

The SMC CDY2S32H-150-A73L is a magnetically coupled guided rodless cylinder from SMC's CY2S series, featuring a 32mm bore and 150mm stroke. It incorporates an integrated slide bearing guide for lateral stability, a heavy-duty (H) magnetic holding force piston/carriage design, and is factory-equipped with a D-A73L reed-type auto switch for position sensing. The cylinder is double-acting, non-lube, and suitable for horizontal or vertical mounting in automation applications where space savings and direct load mounting are required.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | SMC |
| Model / Part Number | CDY2S32H-150-A73L |
| Series | CY2S Guided Cylinder |
| Cylinder Type | Magnetically Coupled Rodless Cylinder |
| Bore Diameter | 32 mm |
| Stroke Length | 150 mm |
| Magnetic Holding Force | Heavy Duty (H) |
| Action | Double Acting |
| Fluid | Air |
| Maximum Operating Pressure | 0.7 MPa (101 PSI) |
| Minimum Operating Pressure | 0.18 MPa (26 PSI) |
| Proof Pressure | 1.05 MPa (152 PSI) |
| Cushion Type | Urethane Cushion, Both Ends |
| Guide Type | Slide Bearing |
| Lubrication | Non-lube (Not Required) |
| Operating Piston Speed | 50 to 400 mm/s (2 to 16 in/sec) |
| Ambient / Fluid Temperature | -10 to 60°C (14 to 140°F) |
| Port Size | 1/8 NPT |
| Port Thread Type | NPT (Standard) |
| Auto Switch Model | D-A73L |
| Auto Switch Type | Reed Switch, General Purpose |
| Auto Switch Mounting | Rail Mount |
| Auto Switch Connection | Grommet, 3m Lead Wire |
| Auto Switch Voltage (AC) | 100 VAC |
| Auto Switch Voltage (DC) | 24 VDC |
| Auto Switch Load Current (DC) | 5 to 40 mA at 24 VDC |
| Auto Switch Load Current (AC) | 5 to 20 mA at 100 VAC |
| Auto Switch Indicator | Red Indicator Light |
| Auto Switch Wire Output | 2-Wire |
| Auto Switch Standards | CE, IEC 529, IP67, JIS C 0920 |
| Applicable Load | PLC, Relay |
| Seal Kit | CY2S32-PS |
| Manufacturer | SMC Corporation of America |
