Product Description

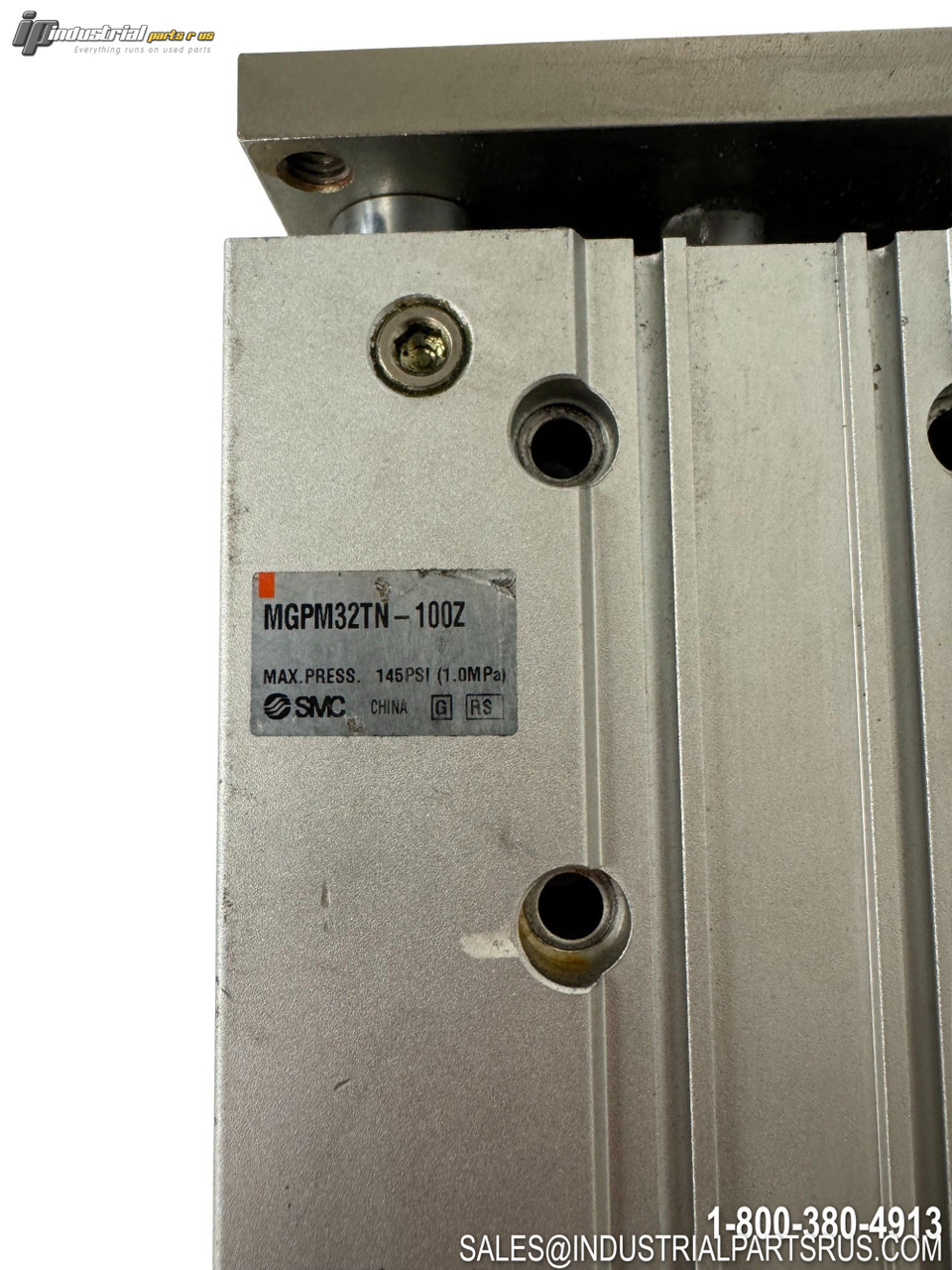

The SMC MGPM32TN-100Z is a compact guided pneumatic cylinder from the MGP series featuring a 32mm bore and 100mm stroke length. This double-acting cylinder incorporates slide bearing technology for lateral stability and includes built-in magnets for switch mounting applications.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | SMC |
| Model/Part Number | MGPM32TN-100Z |
| Series | MGP |
| Cylinder Type | Compact Guided Cylinder |
| Action | Double Acting |
| Bore Diameter | 32mm |
| Stroke Length | 100mm |
| Bearing Type | Slide Bearing |
| Port Thread Type | NPT 1/8" |
| Maximum Operating Pressure | 1.0 MPa (145 PSI) |
| Proof Pressure | 1.5 MPa (218 PSI) |
| Minimum Operating Pressure | 0.1 MPa (14.5 PSI) |
| Piston Speed | 50-500 mm/s |
| Seal Material | NBR |
| Operating Temperature | -10°C to +60°C |
| Built-in Magnet | Yes |
| Cushioning | Rubber Bumpers (both ends) |
| Fluid | Compressed Air |
| Non-rotating Accuracy | ±0.06° |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer SMC
Part Number MGPM32TN-100Z
Shelf K-62
Bore Diameter 32 mm
Model MGPM32TN-100Z
MPN MGPM32TN-100Z
Type Pneumatic Cylinder
Country/Region of Manufacture China
