Product Description

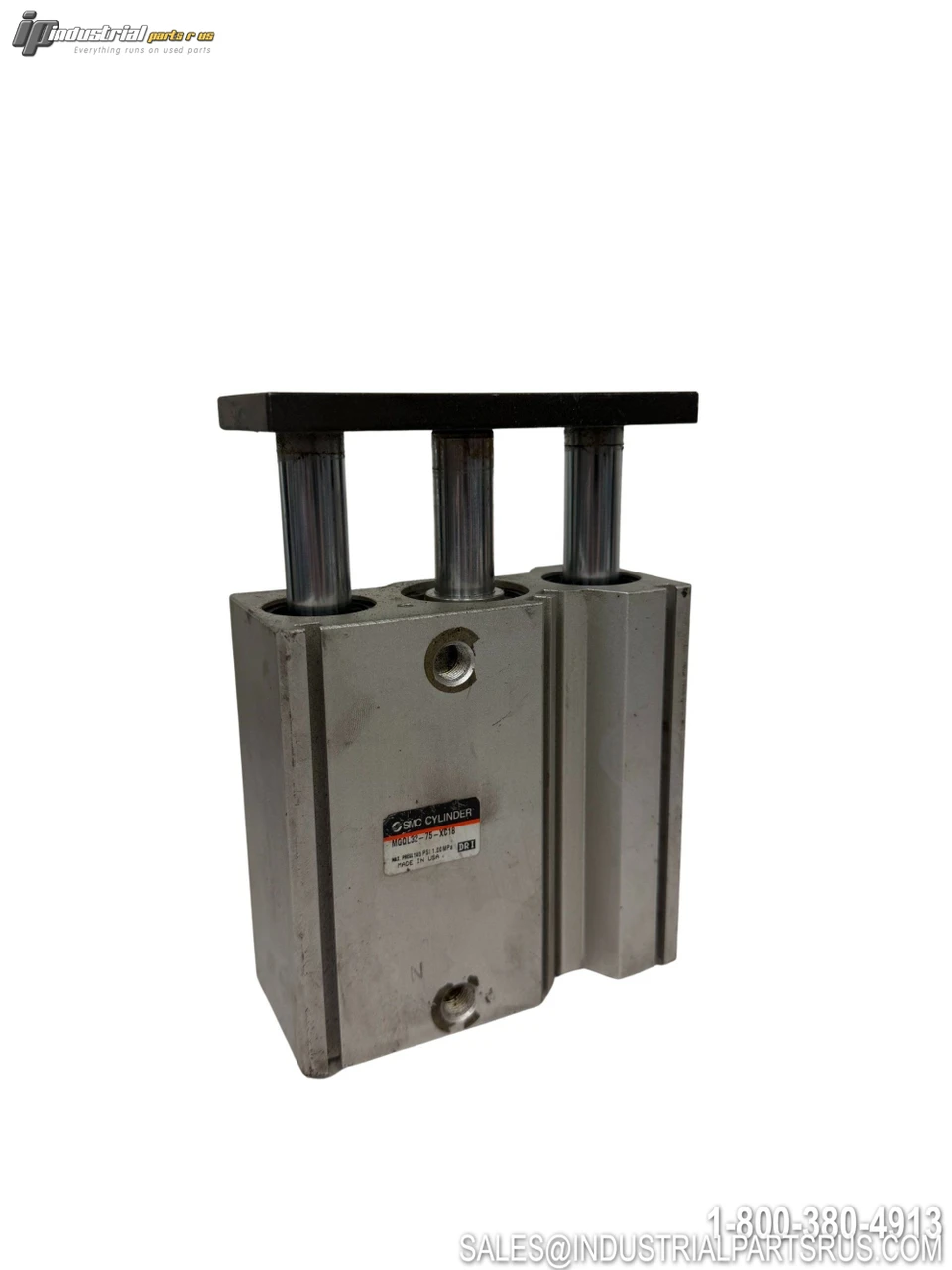

The SMC MGPM32-100 is a compact guide cylinder from SMC's MGP Series, featuring a 32mm bore and 100mm stroke with a dual-rod slide bearing design. It delivers precise, non-rotating linear motion and is engineered for high side-load applications including material handling, lifting, and stopping. The ultra-compact body incorporates the cylinder body as part of the guide body, with bearing length increasing proportionally with stroke to maintain load capacity.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | SMC |
| Model / Part Number | MGPM32-100 |
| Series | MGP |
| Product Type | Compact Guide Cylinder (Guided Cylinder) |
| Bore Diameter | 32 mm |
| Stroke Length | 100 mm |
| Cylinder Action | Double Acting |
| Bearing Type | Slide Bearing (Carbon Steel Alloy) |
| Number of Guide Rods | 2 (Dual Rod) |
| Maximum Operating Pressure | 1.0 MPa (145 psi) |
| Minimum Operating Pressure | 0.12 MPa (17 psi) |
| Proof Pressure | 1.5 MPa |
| Fluid / Media | Compressed Air |
| Operating Temperature Range | -10°C to 60°C |
| Non-Rotating Accuracy | ±0.06° |
| Port Thread Type | Rc 1/8 (standard); NPT and G also available |
| Seal Material | NBR |
| Lubrication | Not Required (Non-lube) |
| Weight (approx.) | 3.15 kg |
| Mounting Types | 4 types (Top, T-slot side, and others) |
| Auto Switch Compatible | Yes (Built-in Magnet; 2-side switch groove) |
| Manufacturer | SMC Corporation |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer SMC
Part Number MGPM32-100
Shelf B-16
Bore Diameter 32 mm
Model MGPM32-100
MPN MGPM32-100
Type Guided Cylinder
