Product Description

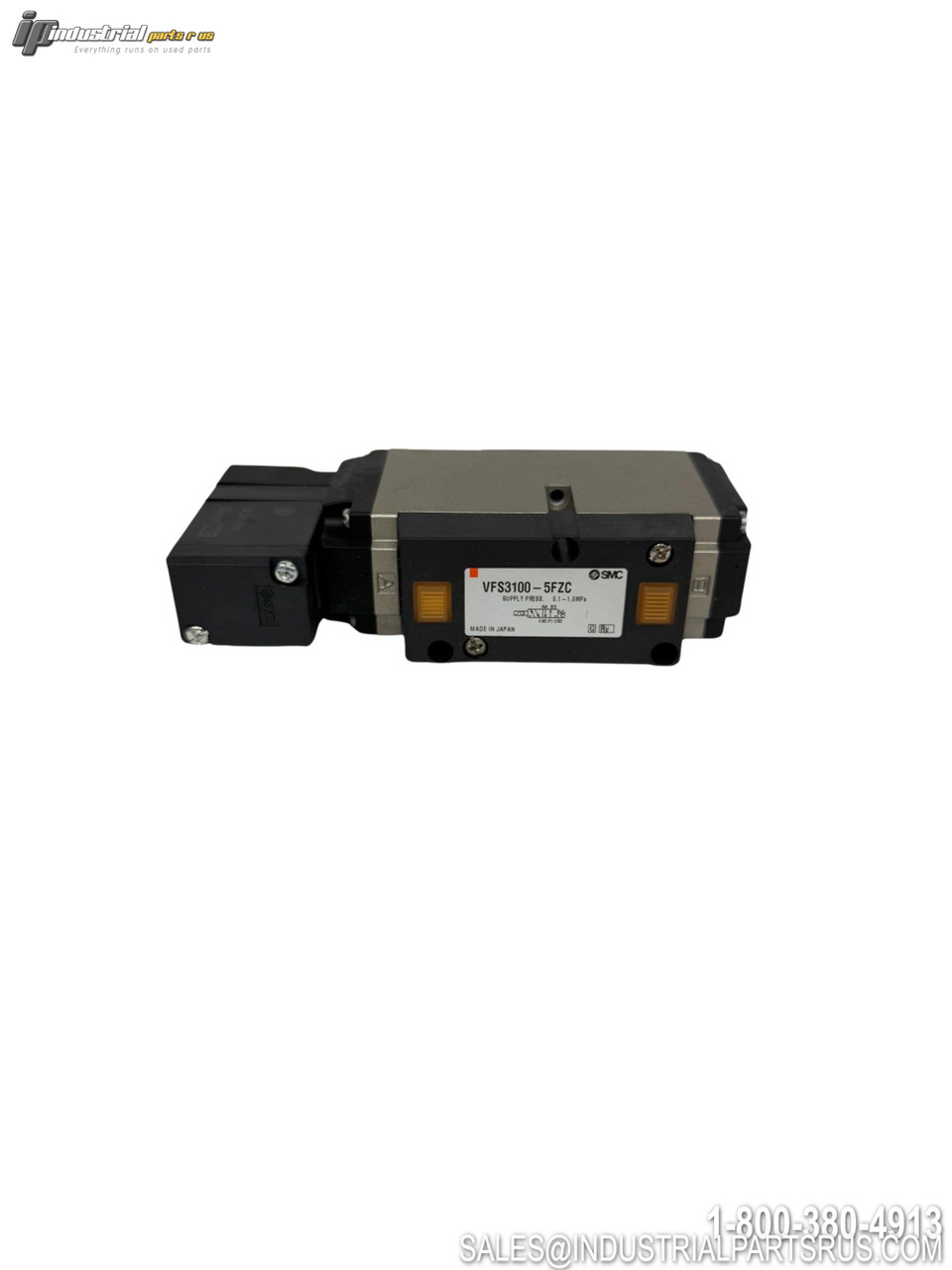

The SMC VFS3100-5FZC is a 5-port, 2-position single solenoid pilot operated directional control valve from SMC's VFS3000 Series, featuring a metal seal main valve construction and base-mounted plug-in configuration. It operates on a 24VDC coil, includes a light/surge voltage suppressor, and is fitted with a locking lever-type manual override — distinguishing it from the non-locking flush (VFS3100-5FZ) variant. Designed for driving medium and large pneumatic cylinders, this valve is compatible with a wide variety of SMC manifold options including VV5FS1 through VV5FS5 series.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | SMC |
| Model / Part Number | VFS3100-5FZC |
| Series | VFS3000 |
| Number of Ports | 5 (4/5 Port) |
| Valve Function | 2-Position Single Solenoid |
| Coil Voltage (Rated) | 24VDC |
| Actuation Type | Pilot Operated (Internal Pilot, Spring Return) |
| Seal Type | Metal Seal |
| Mounting Type | Base Mounted |
| Electrical Entry | Plug-In (DIN Connector) |
| Manual Override | Locking Type (Lever) |
| Voltage Suppressor | With Light / Surge Voltage Suppressor |
| Port Size | Without Sub-Plate (For Manifold Use) — 1/4 and 3/8 in manifold variants |
| Thread Type | Rc (PT) |
| Maximum Operating Pressure | 1.0 MPa (9.9 kgf/cm²) |
| Minimum Operating Pressure | 0.1 MPa (1.0 kgf/cm²) |
| Operating / Fluid Temperature | -10°C to +60°C (14°F to 140°F) |
| Flow Capacity (C value) | 5.8 dm³/(s·bar) at 3/8 port |
| Cv Flow Rate | 1.4 / 1.3 Cv |
| Coil Power Consumption | 1.8 W (DC) |
| Voltage Allowance Range | -15% to +10% of rated voltage |
| Body Material | Die Cast Aluminum |
| Operating Media | Air, Inert Gas |
| Lubrication Required | Not Required |
| Compatible Manifolds | VV5FS1, VV5FS2, VV5FS3, VV5FS4, VV5FS5 |
| Standards | ISO VG32, JIS B 8375, JIS C 0920, JIS C 4003 |
| Overall Dimensions (approx.) | 136 mm L x 32.5 mm W x 59 mm H |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer SMC
Part Number VFS3100-5FZC
Shelf A-12
Model VFS3100-5FZC
MPN VFS3100-5FZC
Type Solenoid Valve
