Product Description

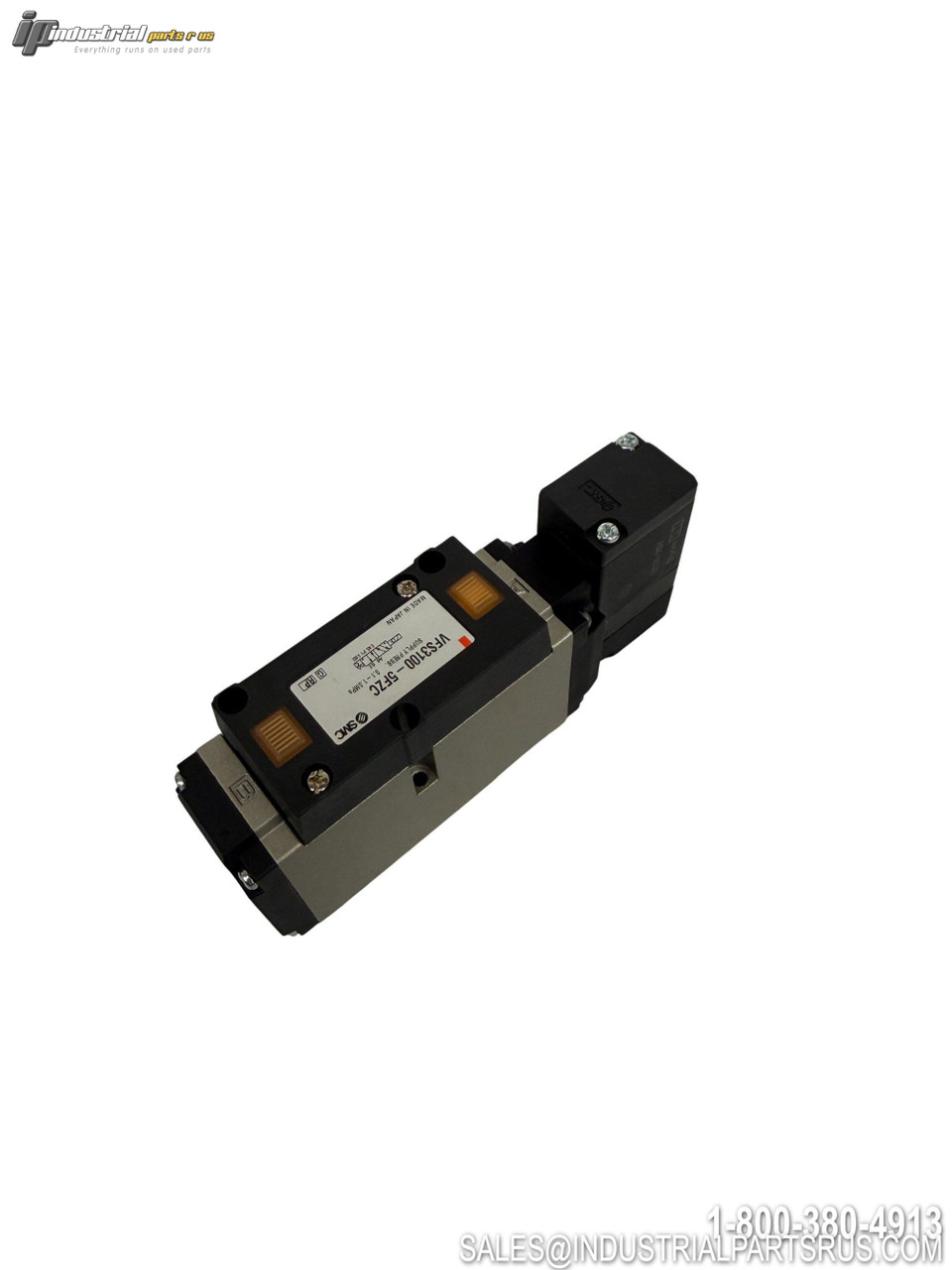

The SMC VFS3100-5FZC is a 5-port, 2-position single solenoid pilot-operated valve from the VFS3000 Series, featuring a metal seal main valve construction and base-mounted plug-in configuration. It operates on a 24VDC coil and is equipped with a locking-type (lever) manual override and integral light and surge voltage suppressor. The VFS3000 Series is designed for driving medium and large pneumatic cylinders and is compatible with a wide variety of SMC manifold and control unit options.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | SMC |
| Model / Part Number | VFS3100-5FZC |
| Series | VFS3000 |
| Valve Type | 5-Port Pilot Operated Solenoid Valve |
| Number of Ports | 5 |
| Number of Positions | 2 |
| Actuation Type | 2-Position Single (Spring Return) |
| Coil Voltage | 24VDC |
| Coil Power Consumption | 1.8 W (DC) |
| Electrical Entry / Lead Wire | Plug-In |
| Surge Suppressor | Yes – Light & Surge Voltage Suppressor |
| Manual Override | Locking Type (Lever) |
| Pilot Type | Internal Pilot |
| Mounting / Piping Type | Base Mounted Plug-In (Side Ported) |
| Body Option | Standard (No Sub-Plate / No Port Suffix) |
| Body Material | Die Cast Aluminum |
| Seal Material | Metal |
| Port Sizes Available | 1/4 and 3/8 (via sub-plate selection) |
| Thread Type | Rc (PT) — BSPT |
| Flow Direction | 4-Way |
| Cv Flow Rate (P to A/B) | 1.8 Cv |
| Cv Flow Rate (A/B to R1/R2) | 1.6 Cv |
| Flow Capacity (3/8 port) | C: 5.8 dm³/(s·bar) |
| Maximum Operating Pressure | 9.9 kgf/cm² (145 psi / 1.0 MPa) |
| Minimum Operating Pressure | 0.1 MPa (14.5 psi) |
| Proof Pressure | 218 psi (1.5 MPa) |
| Ambient & Fluid Temperature | -10 to 60°C (14 to 140°F) |
| Operating Medium | Air, Inert Gas |
| Compatible Manifolds | VV5FS3 Series; Compatible with VFS2000/3000/4000 control units |
| Standards | ISO VG32, JIS B 8375, JIS C 0920, JIS C 4003 |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer SMC
Part Number VFS3100-5FZC
Shelf A-7
Model VFS3100-5FZC
MPN VFS3100-5FZC
Type Solenoid Valve
